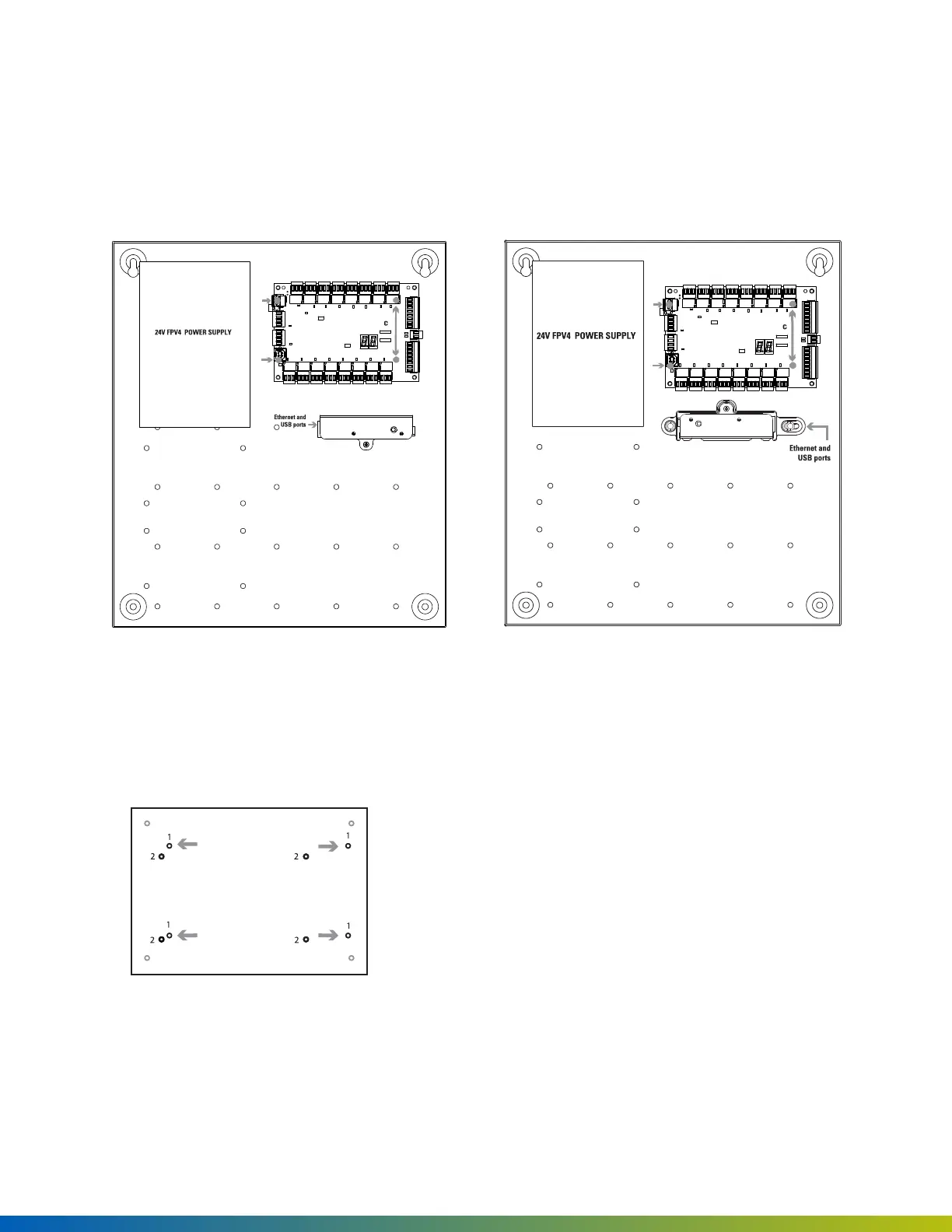

Install the Elevator Core Series boards in E1 enclosure
The E1 board placement includes the 24V FPV4 supply, 16 I/O Elevator Board, and Access Control Core with or
without the mounting bracket.
Front view
Figure 3 Access Control Core mounted without bracket (Ethernet and USB
ports facing left) below 16 I/O Elevator Board
Figure 4 Access Control Core mounted with bracket (Ethernet and USB
ports facing right) below 16 I/O Elevator Board
Mounting
1. Screw the four included metal standoffs into the appropriate set of holes labeled '1' on the back of the
16 I/O Elevator Board mounting plate (see below).
2. Insert the included 6-32 x 3/8" screws from the back of the enclosure, and screw into the standoffs (see
arrows) to secure the 16 I/O Elevator Board assembly in place with the USB connector facing left.
Installation 16
