Install the Core Series boards in E6 enclosure
The E6 board placement includes the 24V FP0150 and FP250 power supplies, D8P Power Distribution Modules,
C8 Relay Based Lock Control Modules, 8-Port Boards, and Access Control Core with the mounting bracket.

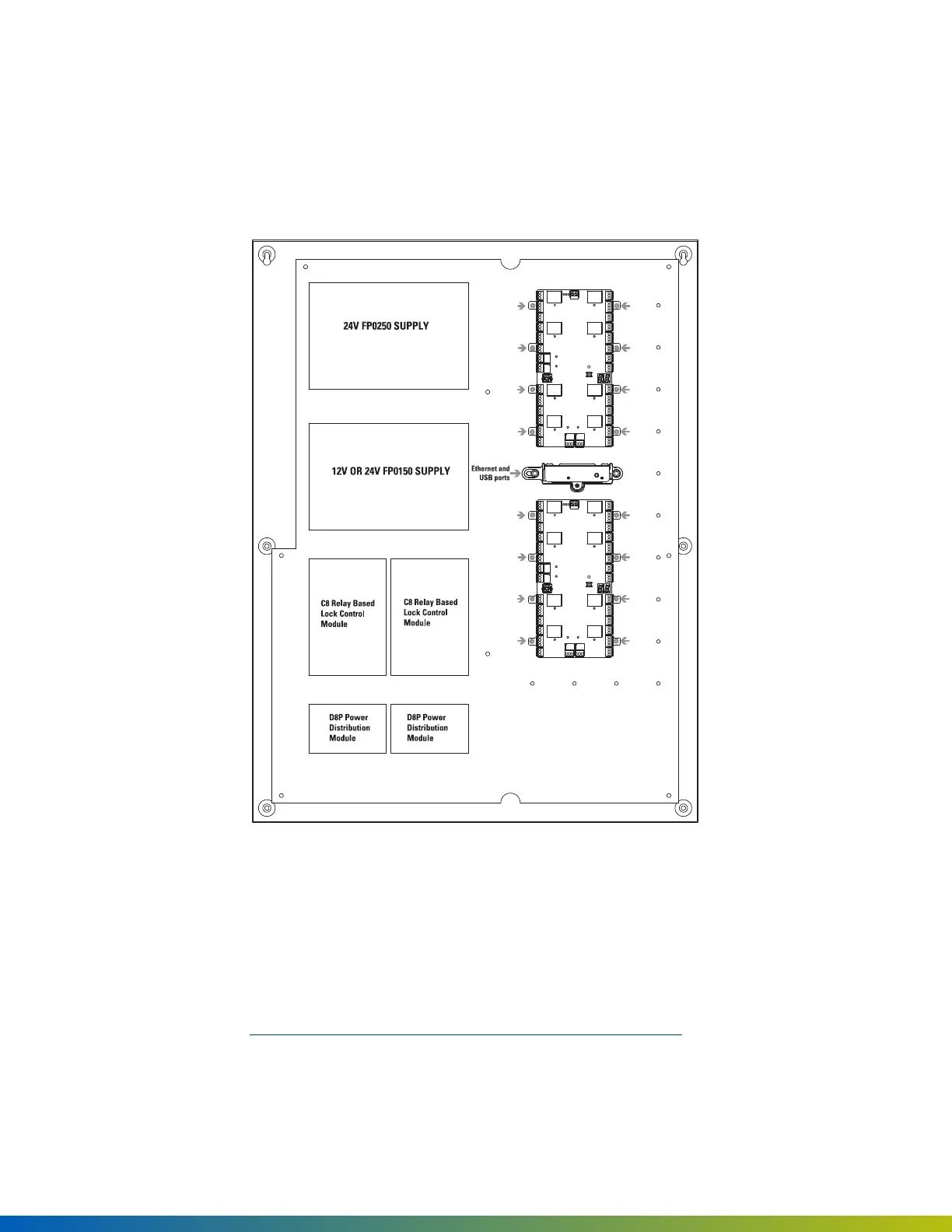

Front view
Figure 8 Access Control Core mounted with bracket between the 8-Port Boards (Ethernet and USB ports facing left)
Mounting
1. Mount the 8-Port Boards to the right of the power supply modules by snapping the board standoffs into
the holes in the backplate (see arrows).
2. Mount the Access Control Core with the bracket. Ensure the Ethernet and USB ports face left. For more
information, see Install Access Control Core with mounting bracket on page14.
