Install the Smart Reader v2
Standard Reader
The Smart Reader v2 (OP-R2X-STND) can be flush mounted in a single gang box or surface mounted using the
provided bracket.

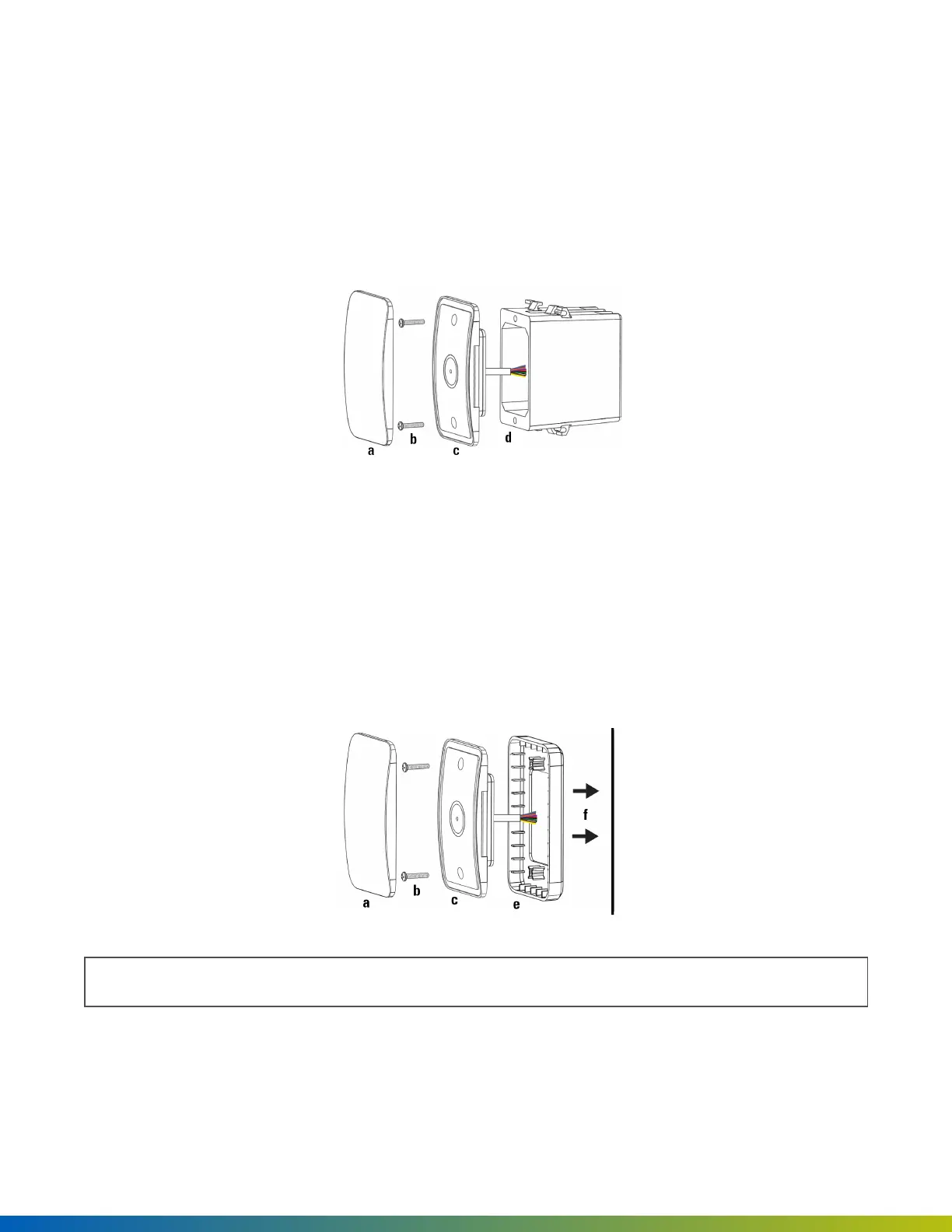

Flush mount (recommended)
1. Install a recessed single gang box (d) into the wall.
2. Strip and connect the wires.
3. Use the provided screws (b) to attach the reader (c) to the gang box. Do not use the provided surface
mount bracket for flush mount installations.
4. Snap on the front cover (a).
Surface mount
Note: The flat side of the surface mount bracket must face the wall. No adhesives are necessary.
Installation 26
