Install the Core Series boards in E4 enclosure
The E4 board placement includes the 24V FP0150 power supply, B100 secondary supply, D8P Power
Distribution Module, C8 Relay Based Lock Control Module, 8-Port Board, and Access Control Core with the
mounting bracket.
Front view

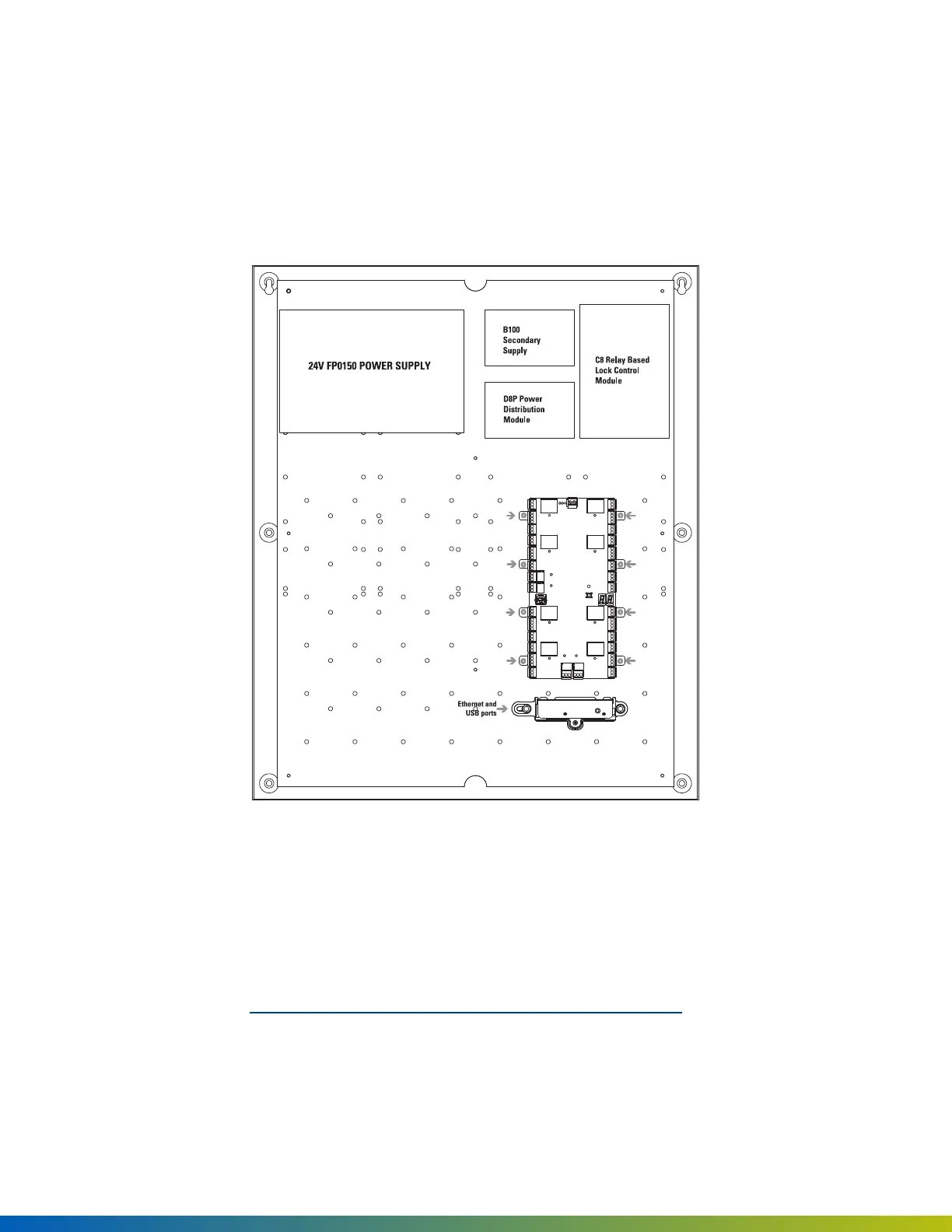

Figure 7 Access Control Core mounted with bracket (Ethernet and USB ports facing left) below the 8-Port Board
Mounting
1. Mount the 8-Port Board below the power supply modules by snapping the board standoffs into the holes
in the backplate (see arrows).
2. Mount the Access Control Core with the bracket. Ensure the Ethernet and USB ports face left. For more
information, see Install Access Control Core with mounting bracket on page14.
Installation 20
