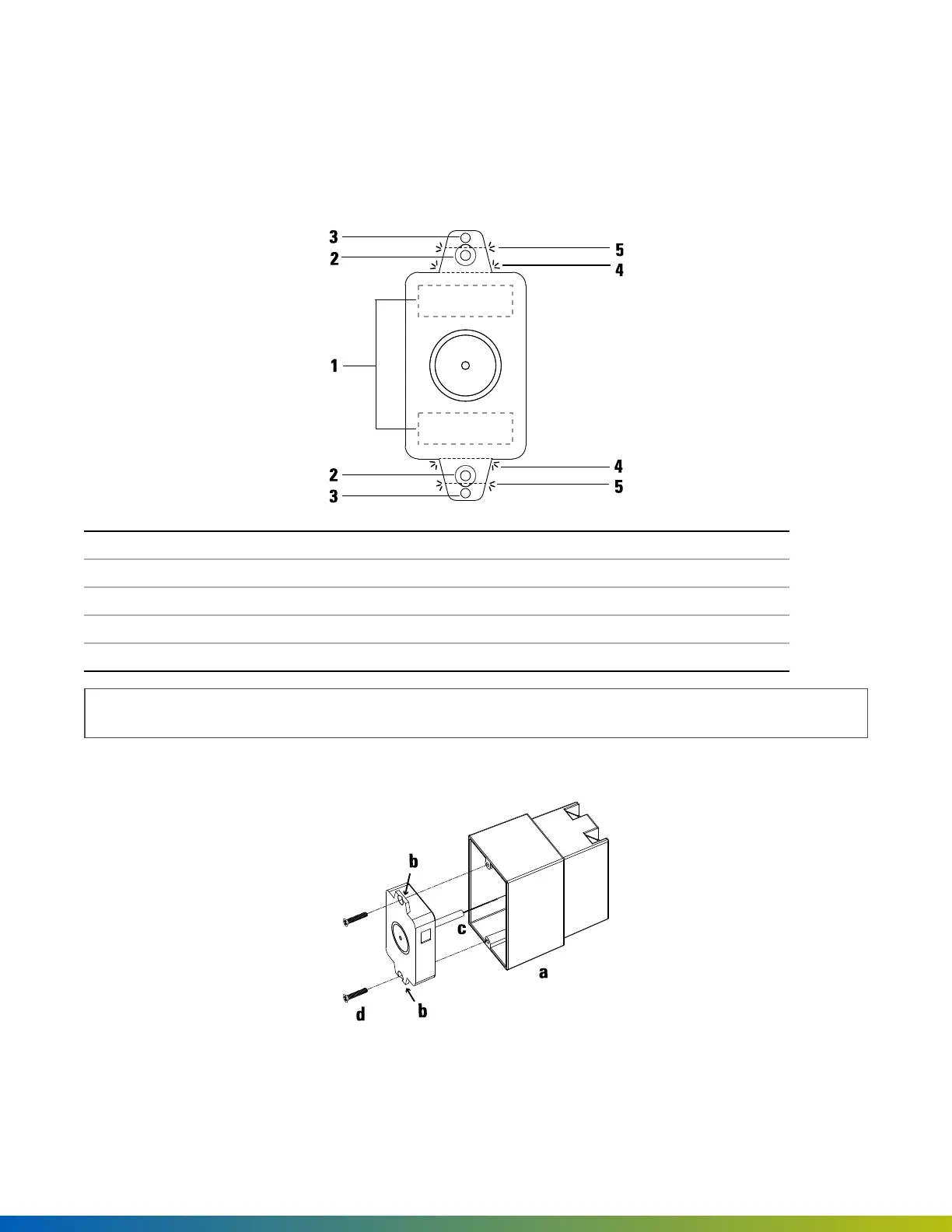

Install the Embedded USB Smart Reader

The Embedded Reader (OP-R2X-EMBD) can be flush mounted in a US gang box; installed within kiosks,

turnstiles, parking systems, or other enclosures using the mounting holes; or mounted behind panels using

adhesive.

1 Recommended mounting strip location

2 Mounting holes for single gang box

3 Outer mounting holes

4 Inner breakaway tabs for mounting using adhesive

5 Outer breakaway tabs for US gang box installation

Note: Remove tabs carefully using pliers.

Flush mount

Installation 31

Revisions3
Table of Contents4
Contents4
Before You Start8
Conducting Site Surveys8
For more Information9
Installation11
Network Requirements11
Selecting a Backup Battery11
Mounting Options12
Mount the Enclosure to the Wall12
Install Access Control Core Without Mounting Bracket13
Install Access Control Core with Mounting Bracket14
Install the Core Series Boards in E1 Enclosure15
Install the Elevator Core Series Boards in E1 Enclosure16
Install the Core Series Boards in E2 Enclosure18
Install the Core Series Boards in E4 Enclosure20
Install the Core Series Boards in E6 Enclosure22
Wiring Avigilon Readers24
ACU and Wiegand Reader Wiring24
Install the Smart Reader V226
Standard Reader26
Mullion Reader27
Install the Smart Keypad Reader28
Standard Keypad Reader28
Mullion Keypad Reader29
Install the Embedded USB Smart Reader31
Flush Mount31
Desktop Mount for Use as an Enrollment Reader32
Wiring32
Install the Video Reader Pro34
Specifications34
Prerequisites34
Installation34
Network Security Best Practices38
Install the Video Intercom Reader Pro39
System Overview39
Specifications39
Prerequisites40
Installation40
Power the Video Intercom Reader Pro43
Provision the Video Intercom Reader Pro43
Standard Wiring Configurations45
Wiring the Core Series 12/24V 4-Door Smart Hub45
Wiring the Core Series 24V Elevator Smart Hub46
Wiring the Core Series 12/24V 8-Door Smart Hub47
Wiring the Core Series 12/24 8-Door Large Smart Hub48
Wiring the Core Series 12/24 16-Door Large Smart Hub50
Wiring Fail-Safe and Fail-Secure Lock Hardware51
Advanced Wiring Configurations52
Wiring Wiegand Readers to Avigilon Readers52
Wiring to Legacy Panels and Mobile Gateway52
Change I/O Types53
Wire to Wiegand Devices on Core Series Smart Hubs54
End-Of-Line Supervision56
Provisioning Acus57
Prerequisites57
Power, Relay, Status, and Board ID Leds57
Access Control Core Status Leds58
Smart Reader Leds59
Avigilon Pro Series Reader Leds60
Add Acus Using Alta Control Center61
Add Multiple Acus Using Quick Start Option61
Add One ACU62
Disable the Static Cloud IP Connection63
Provisioning Options63
Provision the ACU Using Open Admin App (Recommended)63
Provision the ACU Using Alta Control Center on a Laptop64
Test Internet Connection Using Open Admin App65
Configure Network Settings Using Open Admin App65
Change Network Settings66
Set up Wi-Fi on the Access Control Core66
Troubleshooting67
Legacy Wiring67
Resetting Acus67
Soft Reset67
Hard Reset67
Reset Video Readers and Video Intercom Readers68
Appendix: Best Practices - Wiring a REX to Your Avigilon Alta Access Control System69
Wiring REX in Series with Mag Lock or Other Fail-Safe Hardware69
Wiring REX with Video Reader Pro and Video Intercom Reader Pro69
Regulatory72
Can/Ulc 60839-11-1-16 Grade 172
Fcc72
Iec 62368-173
Rf Radiation Hazard Warning74
Industry Canada Notice and Marking74
IC Rss-10275
Warnings76
Electrical Specifications77
