Install Access Control Core with mounting bracket
The Access Control Core must be installed with the mounting bracket in the E4 enclosure of the Core Series
12/24 8-Door Large Smart Hub or in the E6 enclosure of the Core Series 12/24 16-Door Large Smart Hub. The
mounting bracket is optional in the E1 and E2 enclosures.
View with mounting bracket
Side view

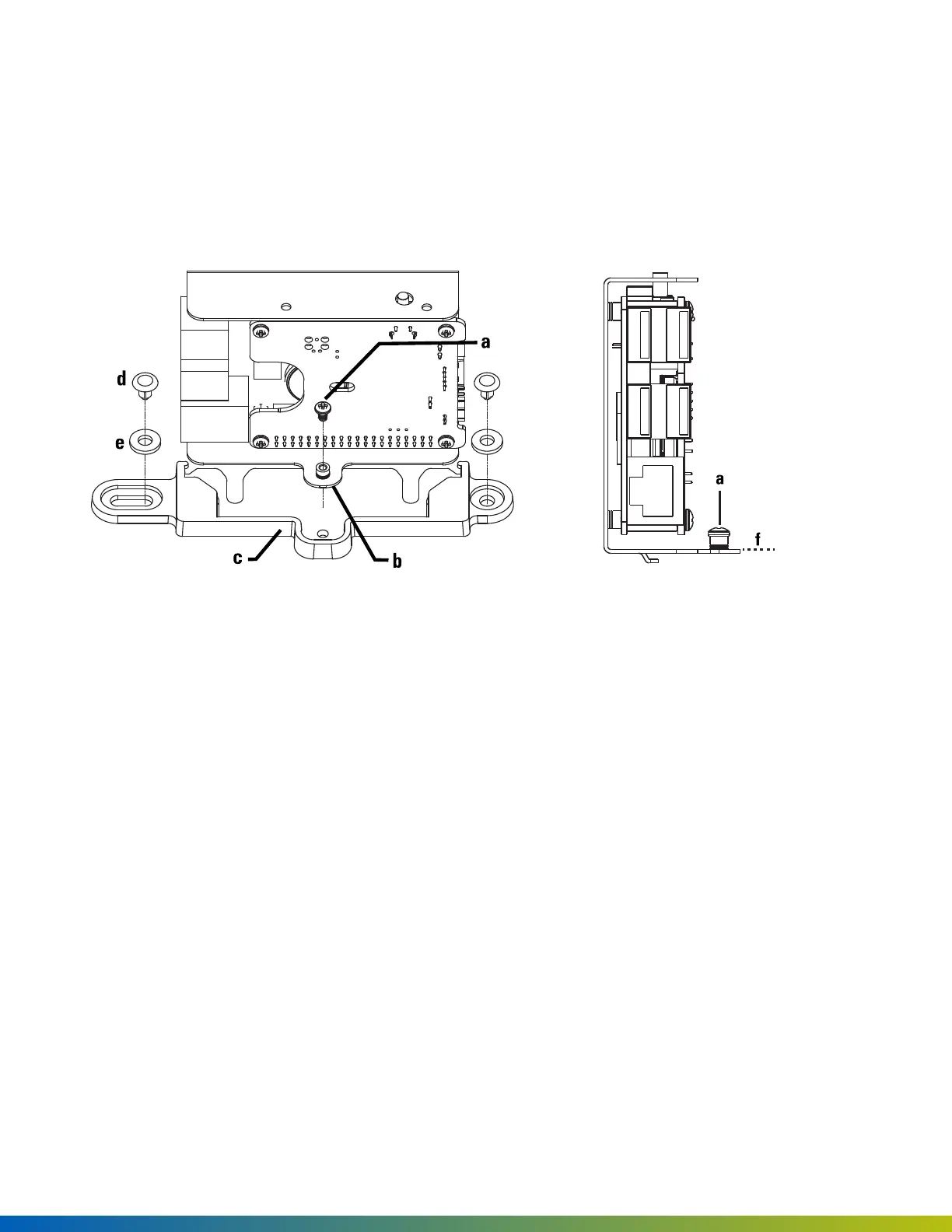

To assemble the Access Control Core and mounting plate:
1. Loosen the screw (a) and ensure it is not protruding past the bottom (f).
2. Slide the Access Control Core (b) into the mounting plate (c) and secure the screw.
3. Mount the assembly into the holes of the backplate with the provided push-in rivets (d).
4. Only use washers (e) in the E1 and E2 enclosures. Washers are not needed for the backplate in the E4 and
E6 enclosures.
Installation 14
