INSTALLATION
IEPEP03 POWER ENTRY PANEL WIRING
I-E96-506B1 3 - 11

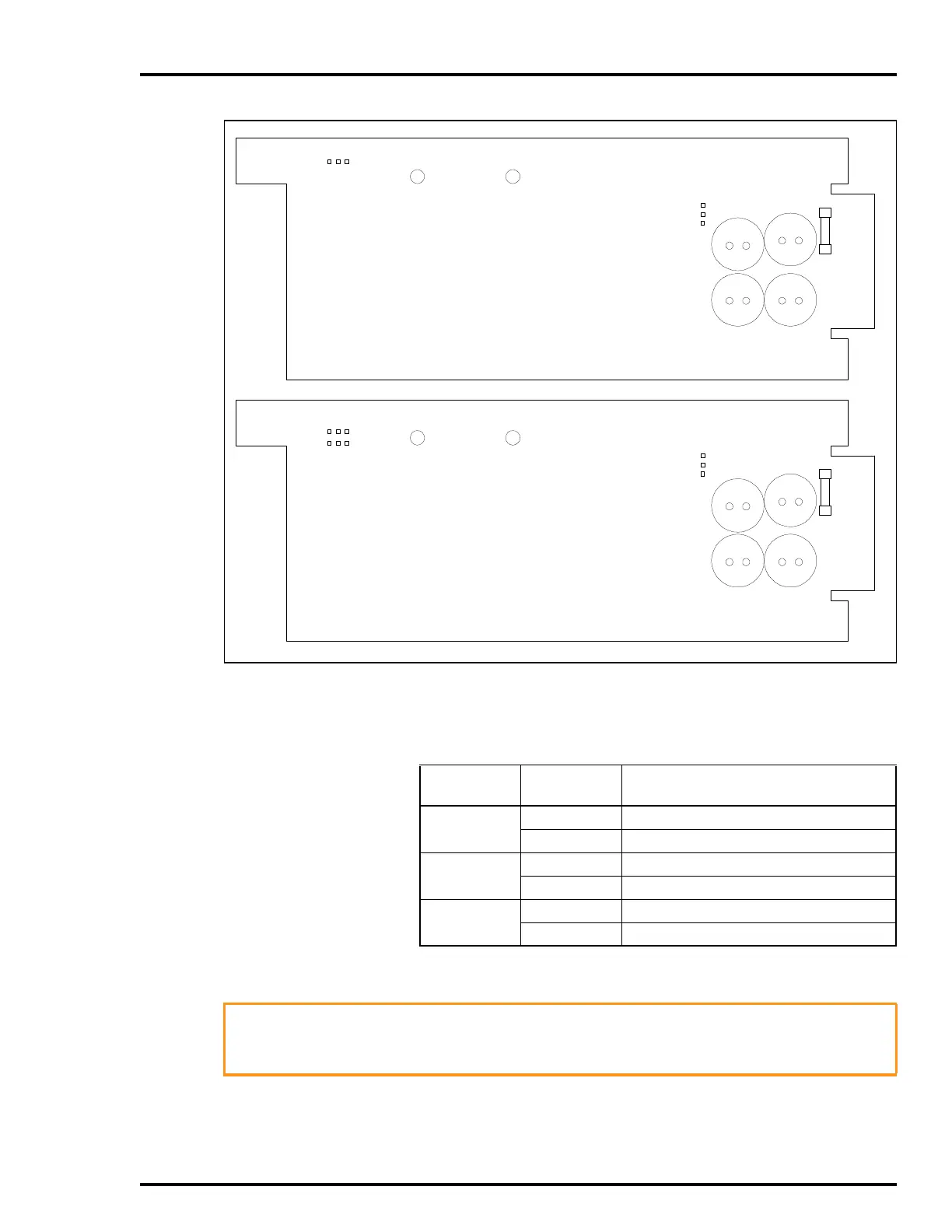

Figure 3-6. IEPAF02 and IEPAS02 Power Module Board Layout
IEPAS02
IEPAF02
J2
123
J2
123
J3
123
J1
F1
F1
1
2
3
J1
1
2
3
TP50307B
Table 3-3. IEPAS02 and IEPAF02 Power Module Jumper
Settings
Jumper
Number
Jumper
Position
Function
J1 1-2 120 VAC
2-3 240 VAC
J2 1-2 Enable 24 VDC undercurrent monitoring
2-3 Disable 24 VDC undercurrent monitoring
J3
1
1-2 Enable 5 VDC undercurrent monitoring
2-3 Disable 5 VDC undercurrent monitoring
NOTE:
1. The IEPAF02 does not have jumper J3.
WARNING
Allow five seconds for the line filter capacitors to discharge
before handling the module after removal. Failure to do so
could result in severe or fatal shock.
