Bailey Infi 90 - Troubleshooting Flowchart, IEPEP03 Power Entry Panel

TROUBLESHOOTING
TROUBLESHOOTING FLOWCHARTS
I-E96-506B1 5 - 5

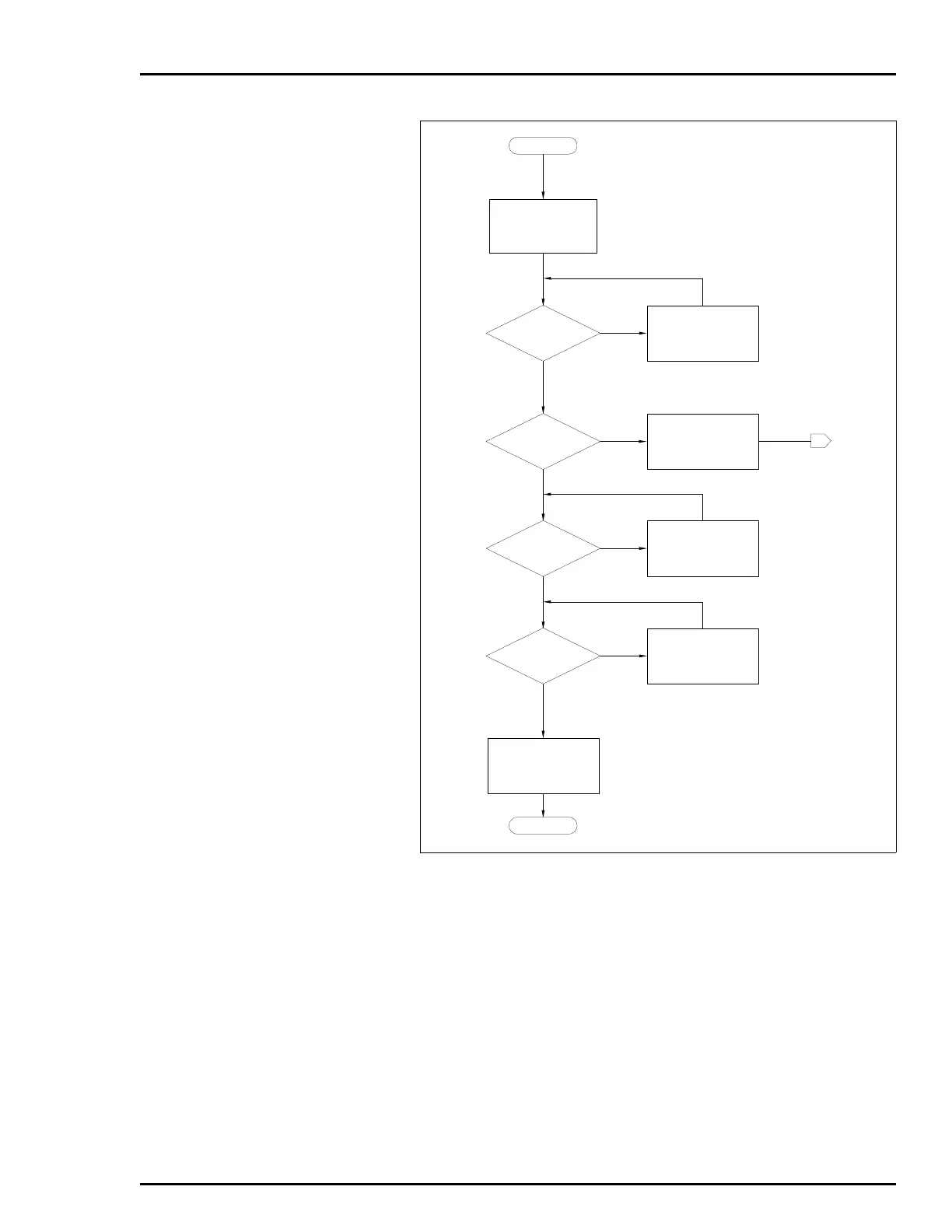

Figure 5-2. Troubleshooting Flowchart, IEPEP03 Power Entry
Panel (Page 1 of 3)
START
ATM STATUS
LED RED?
LINE 1/2 LED
RED?
VOLTAGE AT
TB1 WITHIN
RANGE?
CB1/CB2
ON?
REPLACE ATM.
REFER TO REPAIR/
REPLACEMENT
PROCEDURES.
CHECK BUS MONITOR
LEDs. REFER TO
OPERATING
PROCEDURES.
RESTORE LINE
POWER. REFER TO
SITE PLANNING AND
PREPARATION.
REPLACE PEP. REFER
TO REPAIR/
REPLACEMENT
PROCEDURES.
CHECK PEP
IN SYSTEM
CABINET
YES
NO
CONTINUED
NEXT PAGE
NO
YES
NO
YES
YES
NO
2
TURN CB1/CB2 ON
DONE
TP55171A
