INSTALLATION
IEPMU01 AND IEPMU02 POWER MOUNTING UNIT INSTALLATION
I-E96-506B1 3 - 13
Figure C-3 shows a wiring diagram of the IEPEP01 and
IEPEP02 Power Entry Panels with module mounting units. Fig-
ure C-4 shows the IEPEP01 and IEPEP02 Power Entry Panels
with a power mounting unit.
3. Connect cable 6637814_1 from TB2 on the rear of the
power entry panel panel to the input power bus bar. This con-
nection places AC power on the input power bus bar.
4. Plug the fan assembly power cable into the FAN OUT con-
nector on the rear of the panel.
5. Connect a yellow/green wire equivalent to the power wiring
size (not less than 10 AWG) from the GND bolt on the panel to
the cabinet frame for AC safety grounding (see Figure C-3).
6. Apply power by connecting the 120/240 VAC, 50/60 hertz
power input to terminal block TB1 on the rear of the panel.
NOTE:
Wire your system using the color codes in the wiring diagram
of Figure C-3 or C-4.
IEPMU01 AND IEPMU02 POWER MOUNTING UNIT INSTALLATION

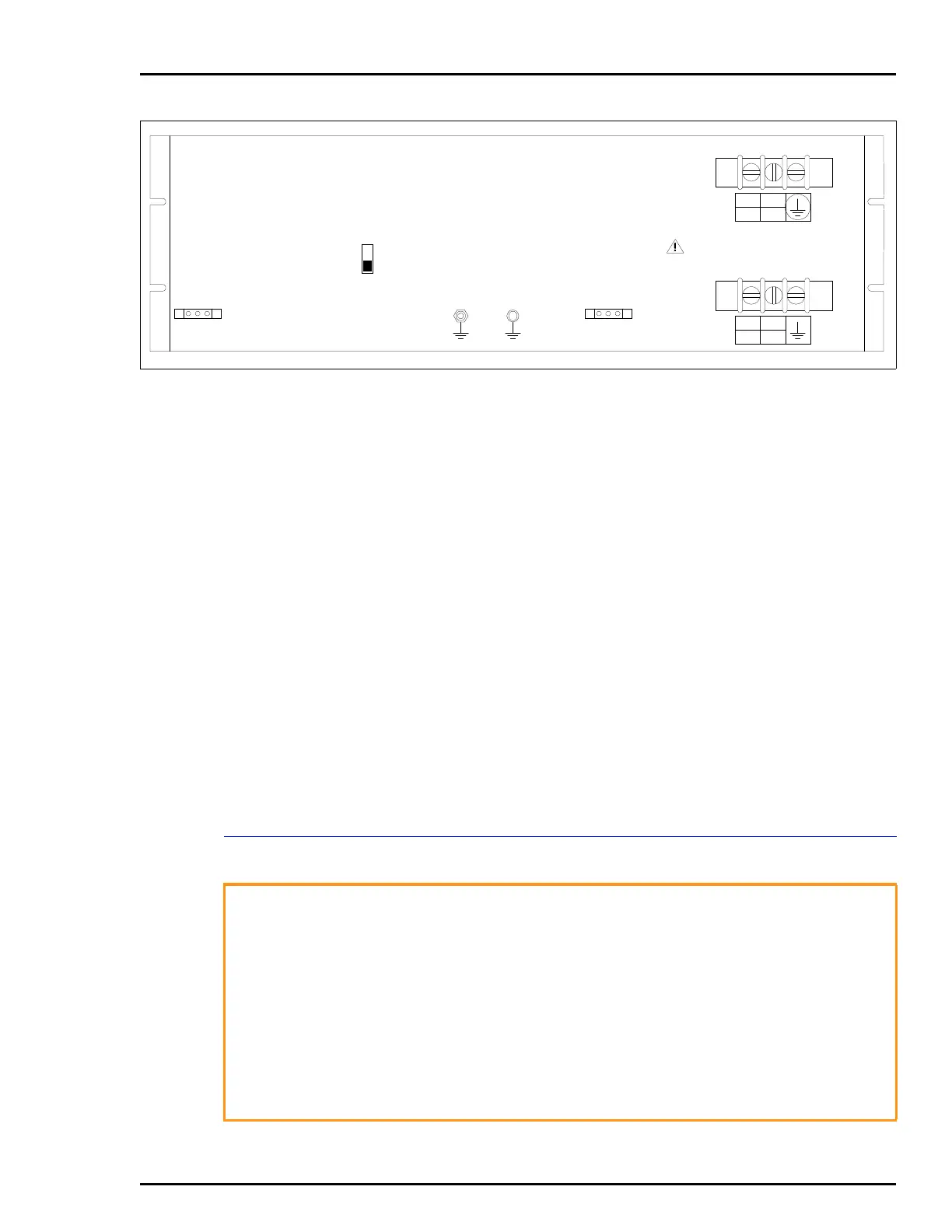

Figure 3-7. Rear of IEPEP01 and IEPEP02 Power Entry Panels
AC OUT
TB2
120 VAC
240 VAC
L
L1
N
L2
TP25389A
PFI
240 VAC
GND
FAN OUT
AC IN
TB1
120 VAC
240 VAC
WARNING/AVERTISSEMENT 120/240 V
L
L1
N
L2
WRIST
GROUND
STRAP
120 VAC
WARNING
Verify the main power and power entry panel circuit breakers
are turned off before starting installation, retrofit, upgrade, or
wiring procedures. Failure to do so could result in severe or
fatal shock. Do not turn the power on until the installation, ret-
rofit, upgrade, or wiring procedures are complete.
AVERTISSEMENT
Assurez-vous que le disjoncteur d'alimentation principal et le
disjoncteur de panneau d'entrée des alimentations sont éteints
avant de procéder, à la mise jour, à l'extension ou au câblage,
dans le but d'éviter les chocs sérieux et même mortels. Ne
rétablissez pas l'alimentation tant que ces procédures ne sont
pas terminées.
