BE1-11g protection systems have three identification fields: Device ID, Station ID, and User ID. These
fields are used in the header information lines of the fault reports. Refer to the BESTCOMSPlus Software
chapter for information on BE1-11g identification settings.
Viewing and Downloading Fault Data through BESTCOMSPlus®
To view fault summary reports using BESTCOMSPlus, use the Metering Explorer to open the Reports,
Fault Records screen shown in Figure 139. This screen shows a list of faults along with number, date,
time, event type, and number of oscillographic records for each fault.
From this screen, you can choose to View All or View New fault reports. Then select View Fault Details or
View Fault Sequence of Events by selecting your choice at the top of the screen and then highlighting the
fault to be displayed.
The Download button allows you to download and save all files associated with the selected fault. These
files include oscillographic records. The Refresh button refreshes the list of fault reports on the screen
(Figure 139) that are available to view/download. The Reset button resets new faults. The Trigger button
manually triggers a fault.

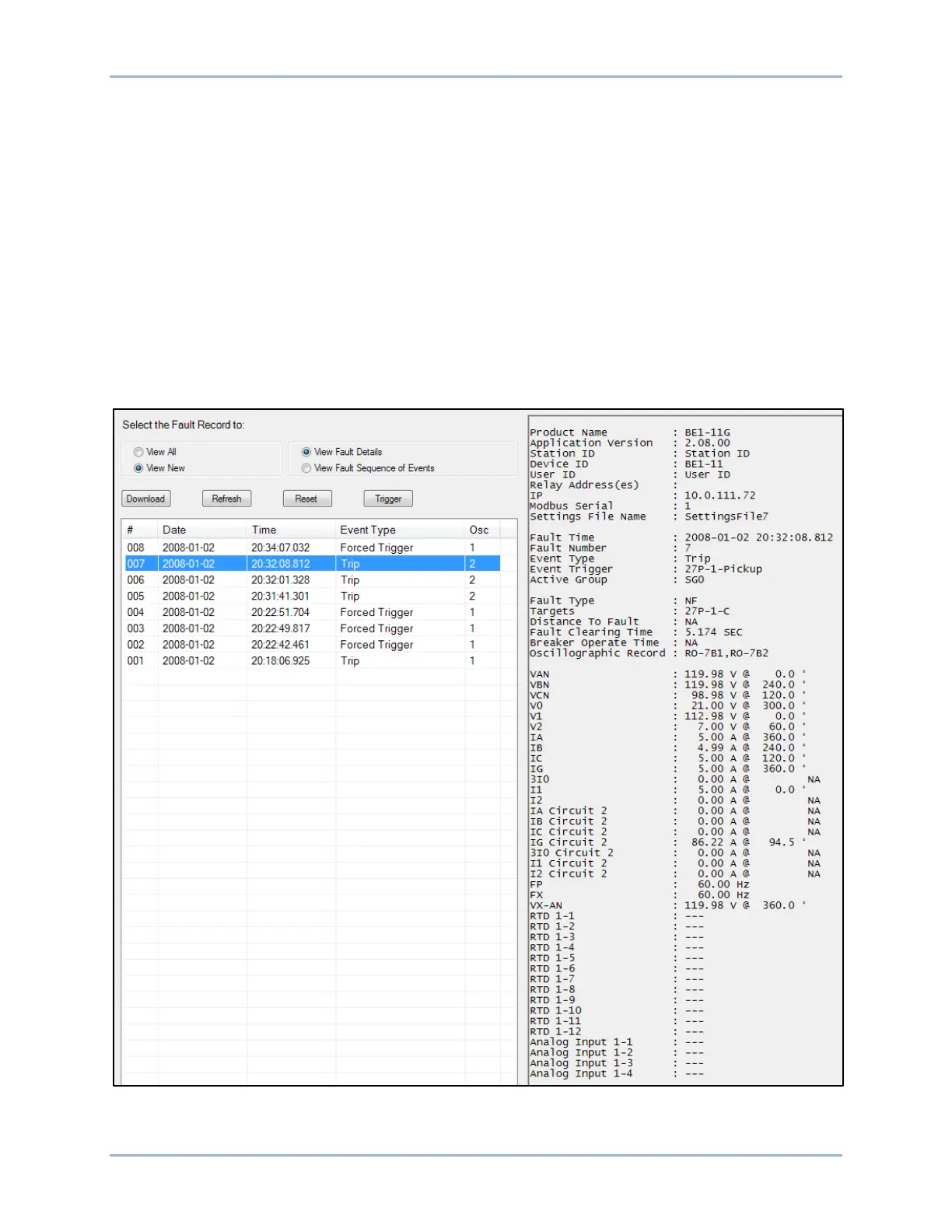

Figure 139. Fault Reports Screen
BE1-11g Fault Reporting
