9424200994 Rev N 227

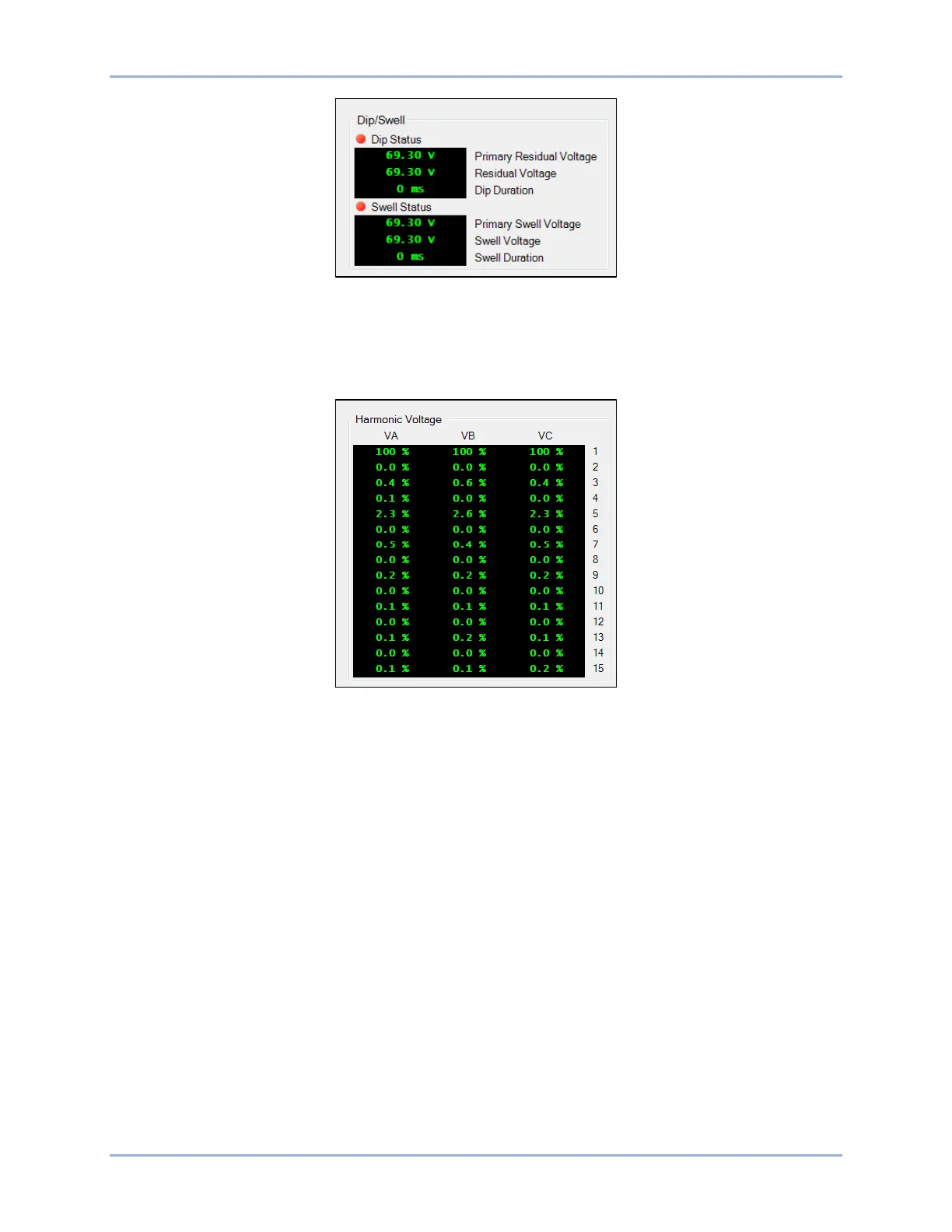

Figure 161. Power Quality, Dip/Swell Screen
Harmonics
Figure 162 illustrates the Power Quality, Harmonic Voltage screen. The Harmonic Current screen is
similar.
Figure 162. Power Quality, Harmonic Voltage Screen
Refer to the BESTnetPlus chapter for information on viewing power quality data through the web page
interface.
BE1-11g Power Quality
