Basler BE1-11g User Manual

230 9424200994 Rev N

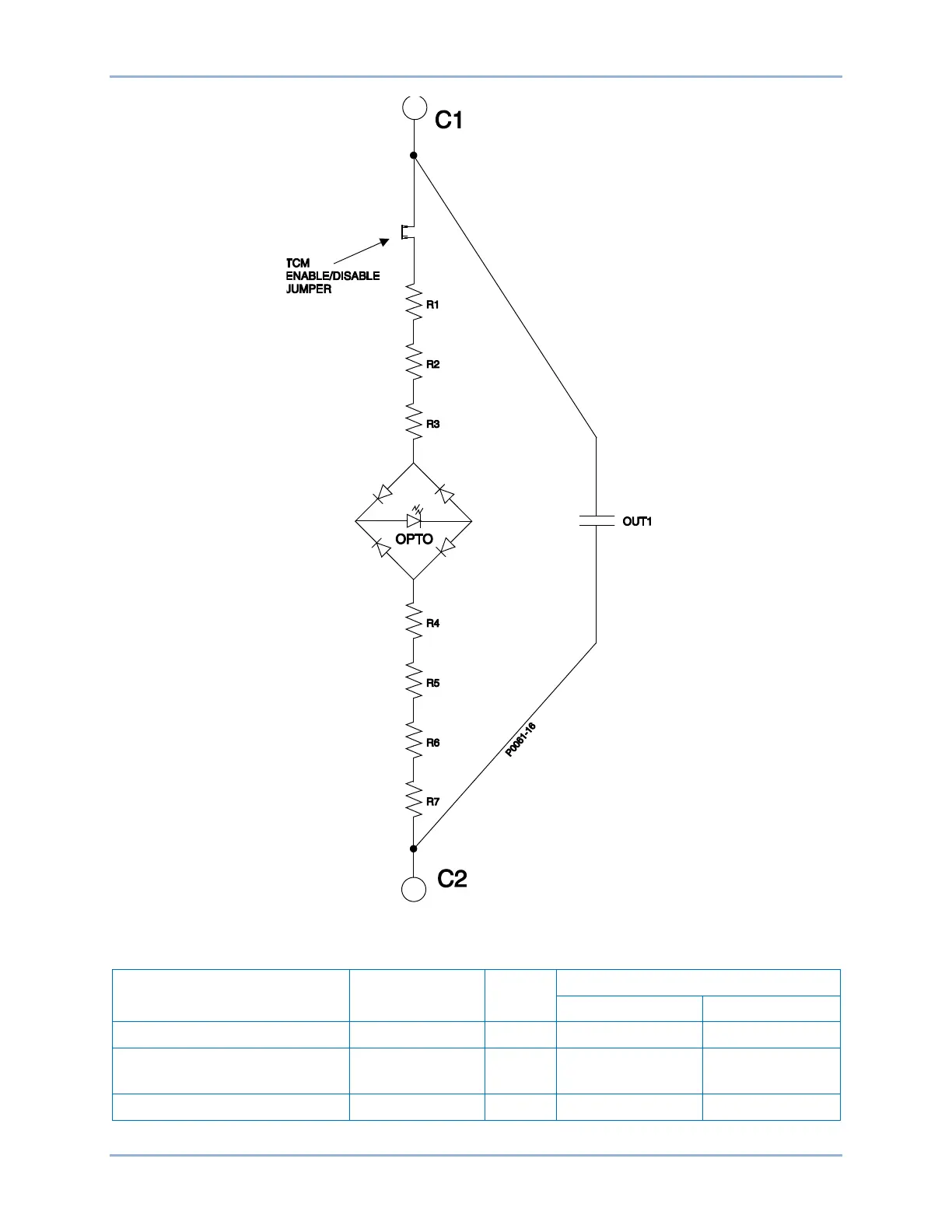

Figure 163. Trip Detector Circuit (J Type Case)
Table 88. Current Draw for each Power Supply Voltage Rating (J Type Case)
Power Supply Voltage Rating Resistor R Total
Optical Isolator
Off (25% V)
On (80% V)
24 Vdc
R1 - R7 = 2.2 kΩ
15.4 kΩ
6.0 V (0.390 mA)
19.2 V (1.25 mA)
48/125 Vdc
R1 = 6.8 kΩ
R2 - R7 = 4.7 kΩ
35 kΩ 12.0 V (0.343 mA) 38.4 V (1.10 mA)
125/250 Vdc
R1 - R7 = 13 kΩ
91 kΩ
31.2 V (0.344 mA)
100 V (1.10 mA)
Trip Circuit Monitor (52TCM) BE1-11g
