Basler BE1-11g User Manual

9424200994 Rev N 231

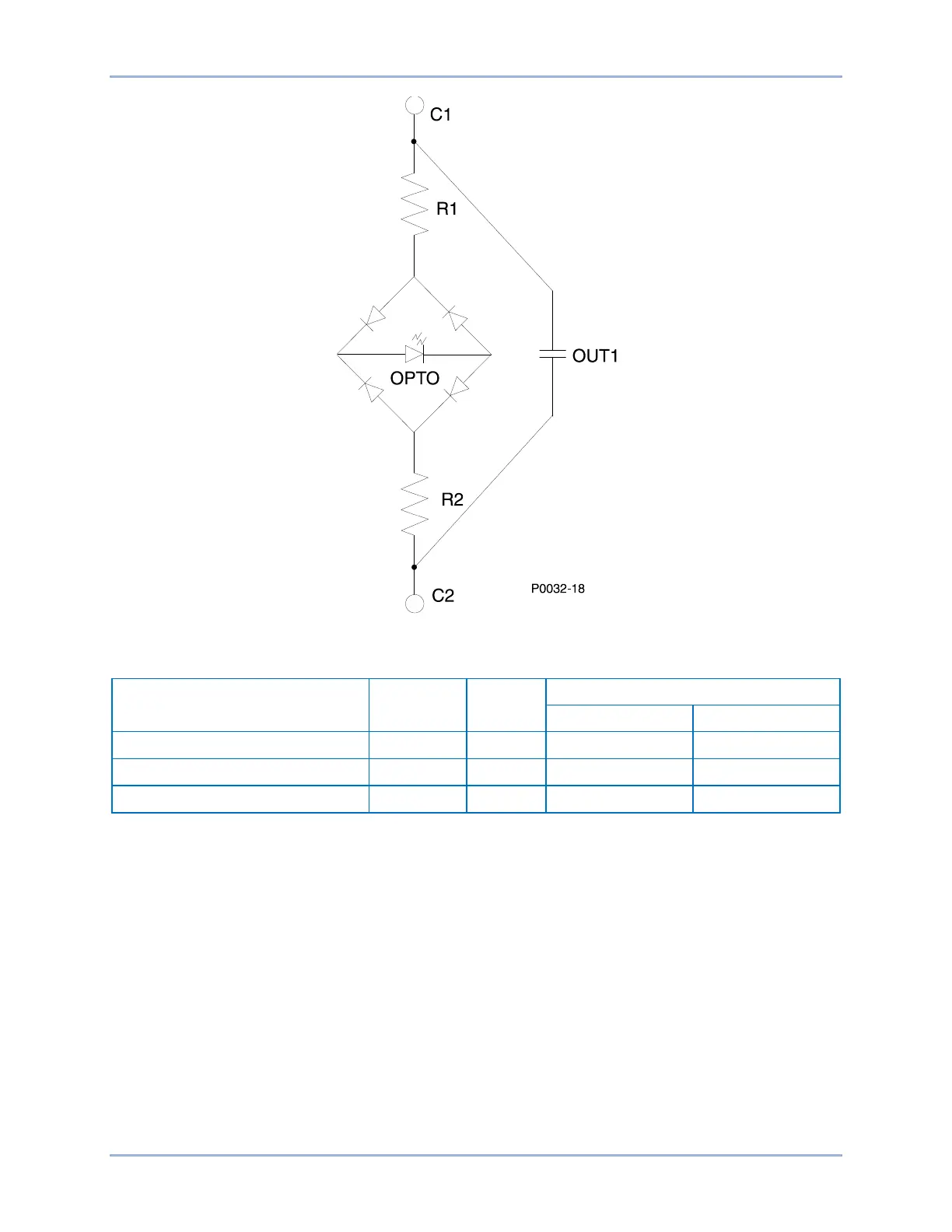

Figure 164. Trip Detector Circuit (H or P Type Case)
Table 89. Current Draw for each Power Supply Voltage Rating (H or P Type Case)
Power Supply Voltage Rating R1 = R2 = R Total
Optical Isolator
Off (25% V)
On (80% V)
24 Vdc
8.2 kΩ
16.4 kΩ
6.0 V (0.36 ma)
19.2 V (1.18 ma)
48/125 Vdc
18 kΩ
36 kΩ
26.4 V (0.68 ma)
38.4 V (1.02 ma)
125/250 Vdc
47 kΩ
94 kΩ
68.7 V (0.71 ma)
100 V (1.06 ma)
BE1-11g Trip Circuit Monitor (52TCM)
