9424200994 Rev N 249

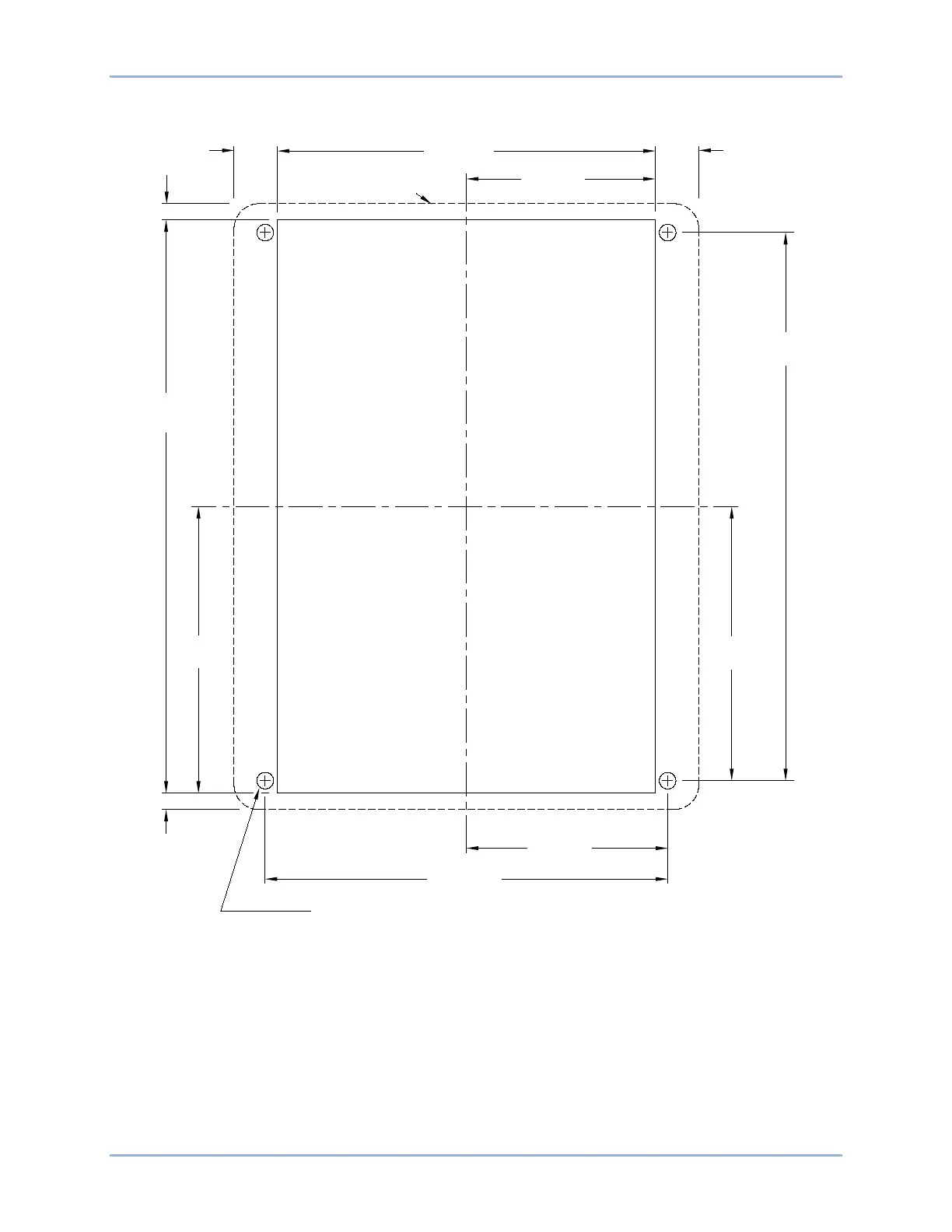

Case cutout and drilling dimensions are shown in Figure 183.
Figure 183. J Type Case - Cutout and Drilling Dimensions
3.03 (77.0)
6.06 (154.0)
0.25 (6.35) diameter, 4 places
C
L
Cut-Out
8.63
(219.1)
0.245
(6.2)
5.69 (144.5)
Outer Edge of Cover
0.655
(16.6)
8.25
(209.6)
4.13
(104.8)
2.84 (72.1)
4.31
(109.5)
0.245
(6.2)
0.655
(16.6)
P0072-13
BE1-11g Mounting
