Typical external ac connections (generator differential) for the BE1-11g are shown in Figure 207.

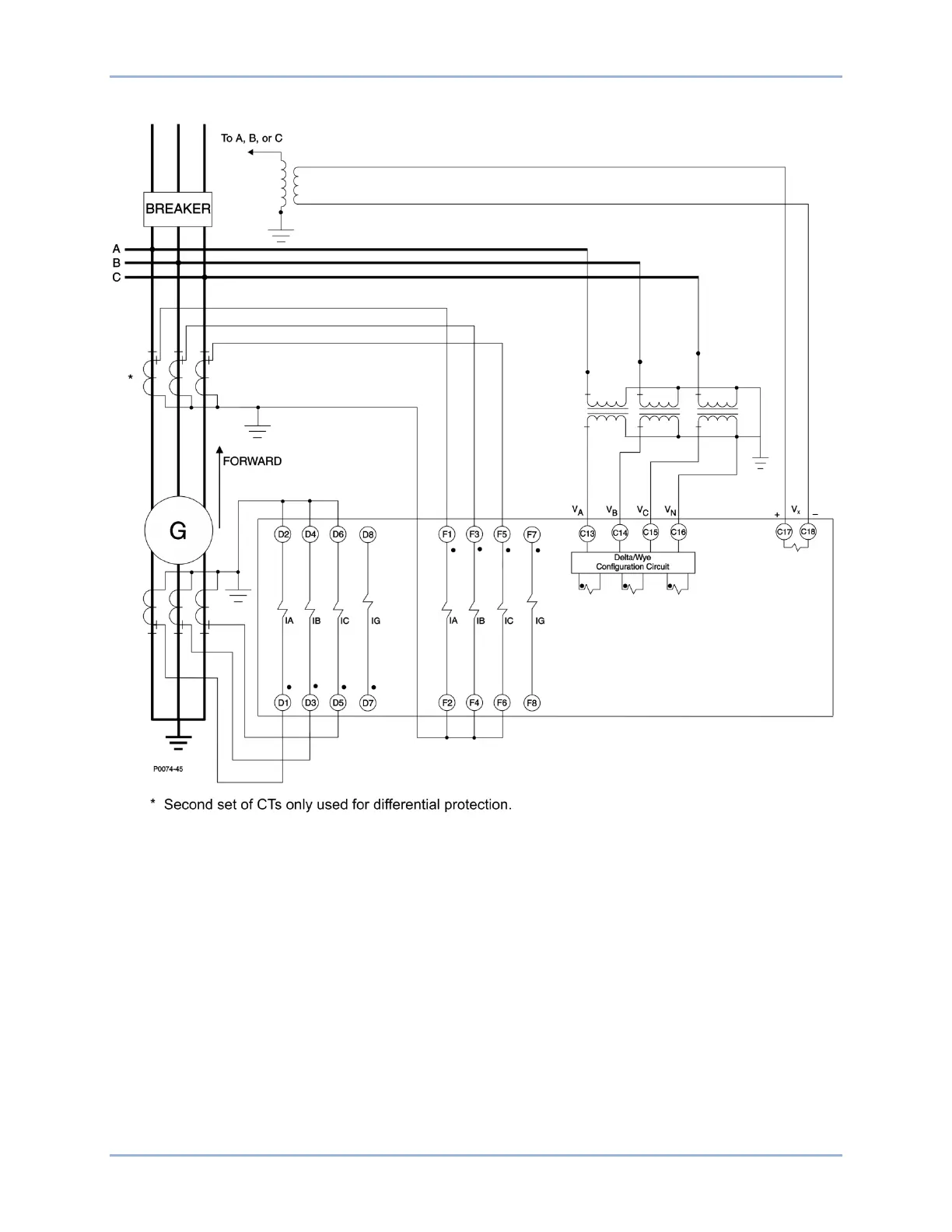

Figure 207. Typical AC Connections for Generator Differential

Typical Connections BE1-11g
