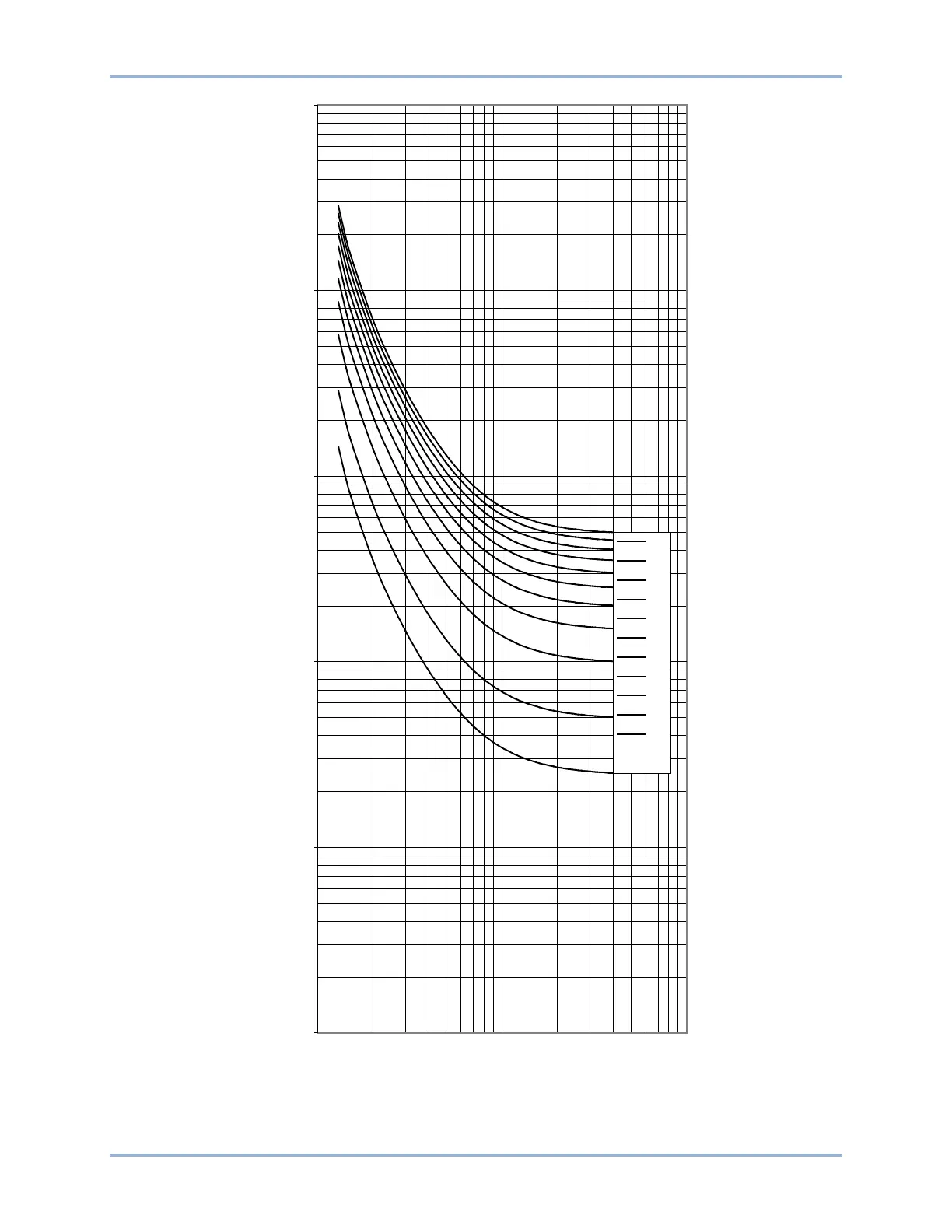

Figure 349. Time Characteristic Curve E3, Very Inverse (IEC 60255-151 Ed. 1)
0.01
0.10
1.00
10.00
100.00
1000.00
1 10 100
MULTIPLES OF PICKUP
TIME IN SECONDS
9.9
9.0
8.0
7.0
6.0
5.0
4.0
3.0
2.0
1.0
0.5
T
I
M
E
D
I
A
L
P0057-46
BE1-11g Time Curve Characteristics
