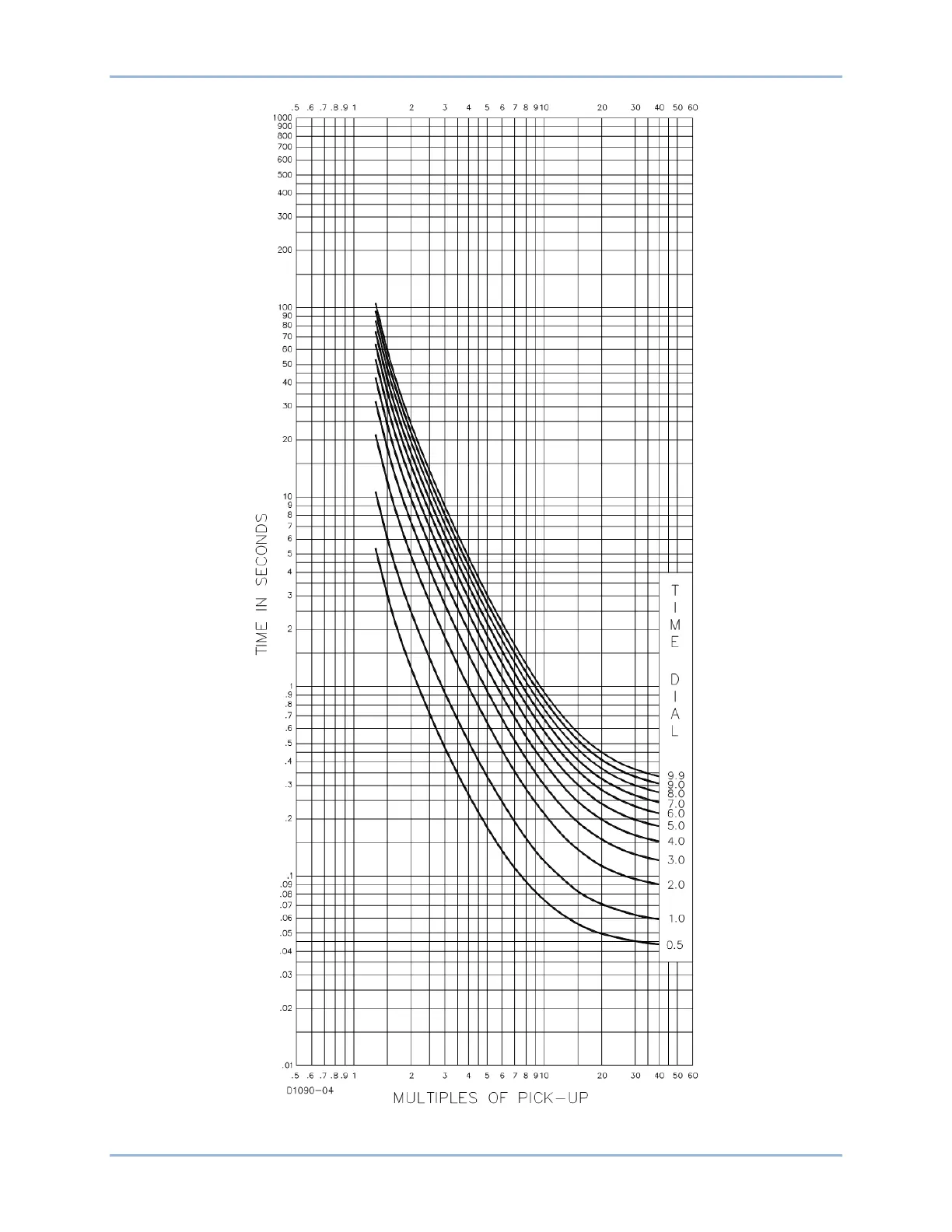

Figure 350. Time Characteristic Curve E1, Extremely Inverse (Similar to ABB CO-11)

Time Curve Characteristics BE1-11g
