Preparing for mounting
Instruction handbook b maXX BM5500, BM5600, BM5700
Document No.: 5.13008.10 Baumüller Nürnberg GmbH
150
of 314
6.2

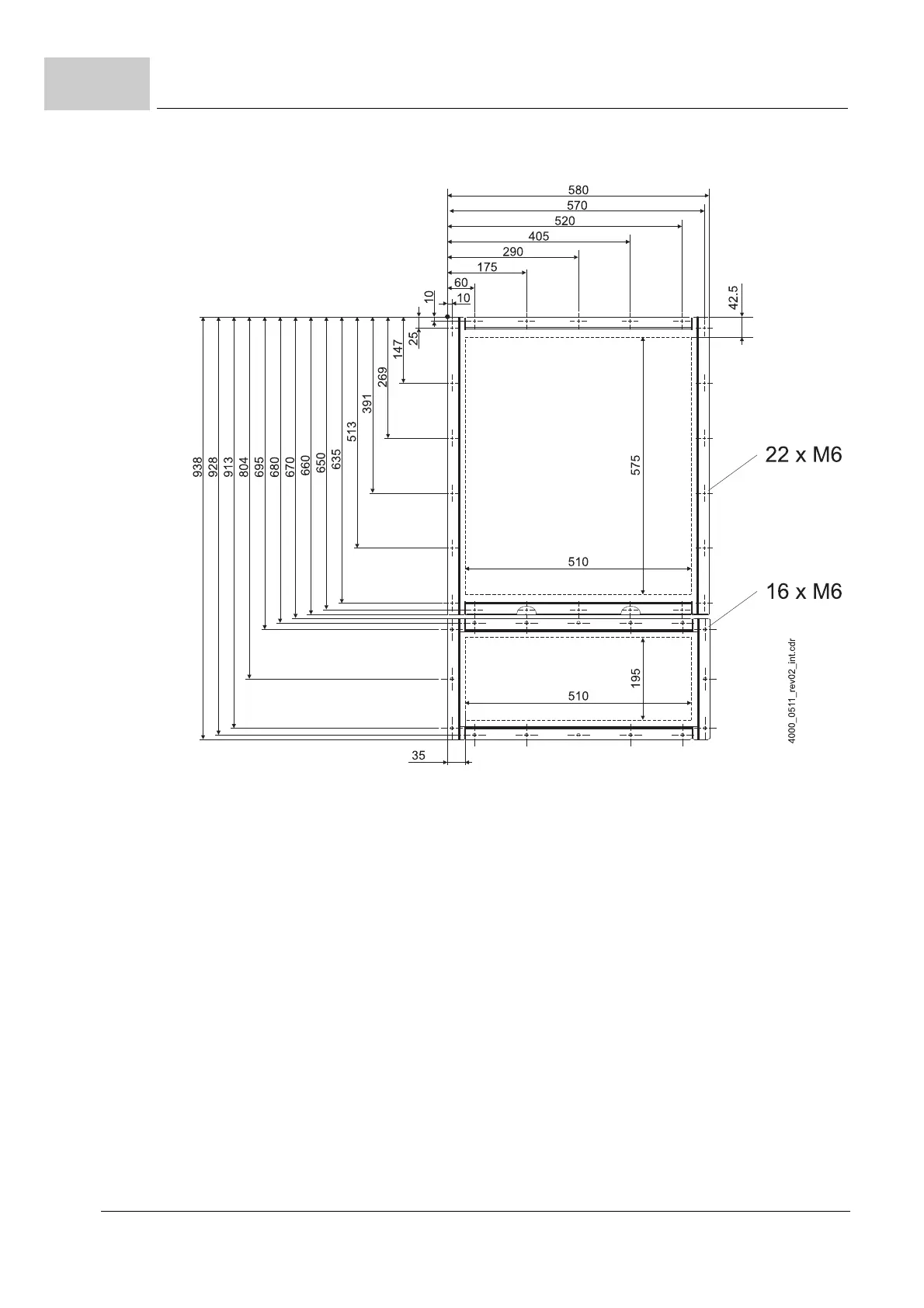

Figure 71: Drilling pattern BM557X-A
