Cabling
Instruction handbook b maXX BM5500, BM5600, BM5700
Document No.: 5.13008.10 Baumüller Nürnberg GmbH
264
of 314
11.1
11.1.5.6 Connection cable add-on modules
IEE The connection cable is not offered by Baumüller and must be made by the user:
1 Use the follo
wing materials:
m Ca
ble: LiYCY 3 x (2 x 0.14 mm²) + 2 x 0,34 mm² Cu braiding.
m Su
b-D connector: 9-pole, female (IEE side)
m E.g.
Sub-D connector: 26-pole, male (b maXX 5000 side)
m Ca
bles must be of twisted pair wire (track -0/0, -A/A, -B/B) from incremental encoder
emulation to further master control systems
2 Co
nnect
m t
he cable shield with the plug shell of the Sub-D male/Sub-D female connector
m th
e 9-pole female connector (IEE side) with the cable
m e.g. th
e 26-pole Sub-D male connector (b maXX 5000 side, pin assignment refer to
ZCo
nnecting cable for sine/square-wave incremental encoder– on page 263) with
the other cable ending.

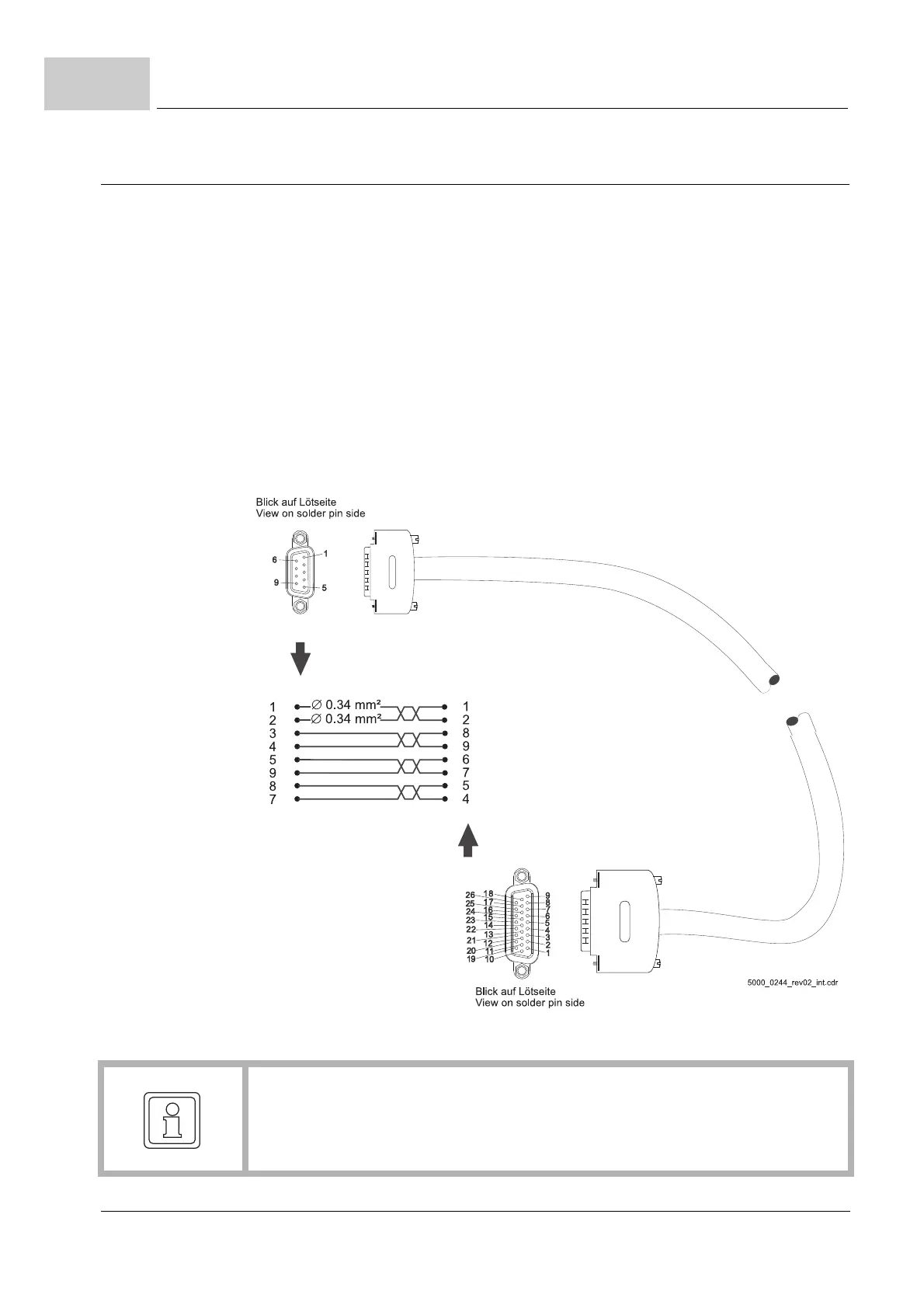

Figure 116: Connection cable IEE with b maXX 5500
NOTE!
The connection cable must be made according above mentioned instruction, pin as-
signment IEE refer to ZAdd-on modules– on page 199!
The cable is inoperable with changed assignment of the pins!
