Error detetion 8.4T
Blocking
monitoring
This monitoring function checks motor speed and motor current. I f, within the blocking
monitoring time motor stop is recognized (motor speed = 0) and operation is detected at
the current limit, then the error/warning „Drive blocked“ is signaled by the controller
and there is an immediate pulse inhibit.
8.4 Error detetion
Below the d ifferent err ors and the consequential error messages are explained. The errors can either originate
from mechanical or from electrical causes. The devices of the series b maXX® BM3400 signal an error status
via the 7-segment-display. The reason and the content of the error message must be determined with the
help of the error list in this manual or via the operating software WinBASS II.
• Start the operating program WinBASS II, if it isn’t running yet.
NOTE
In order to work with WinBASS II, the software version of the controller and the WinBASS II
version must match.
In case the software version of the controller and the WinBASS II version don’t match, you will receive the
following message:

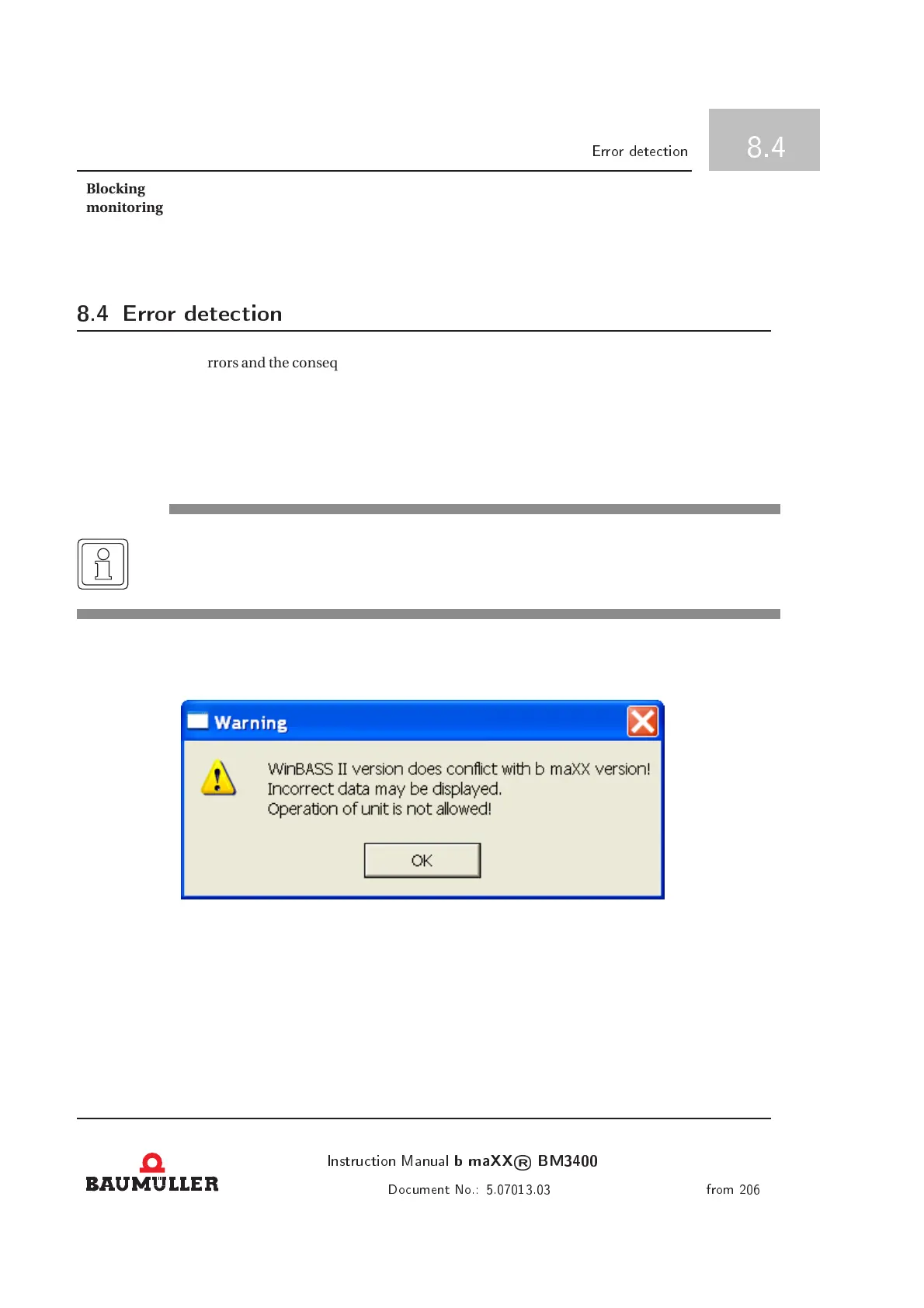

Figure 8.1: Version warnung
Operating in this state is not possible. Break up your work and contact Baumüller in order to receive the rig ht
version.
Instrution Manual b maXX ® BM3400 123
Doument No.: 5.07013.03 from 206
