T 6 Installation
6.13.1.5 Eno der onneting ables
Encoder connecting cable (or the encoder connection) can be used for the resolver („A“), sine wave incre-
mental encoder („B“), sine wave incremental encoder with HIPERFACE® interface („C“) and square w a ve
incremental encoder („E“). Encoder connecting cab le can be obtained as an accessory from Baumüller Nürn-
berg Electronic GmbH & Co. KG (see «Appendix B - Spare parts and accessories» on page 158) . In case the
cable is produced self, please use the instructions stated below:
1. Use the following materials:
• Cable: LiYCY 5 x ( 2 x 0.14) + 2 x 0.5 mm Cu-braid.
• Sub-D connector 15 contacts
• Circular connector: 12 contacts, female (e. g. company Interkonnectron)
2. Apply the cable shield with large surface area onto the circular connector and onto the shielding of the
Sub-D-plug.

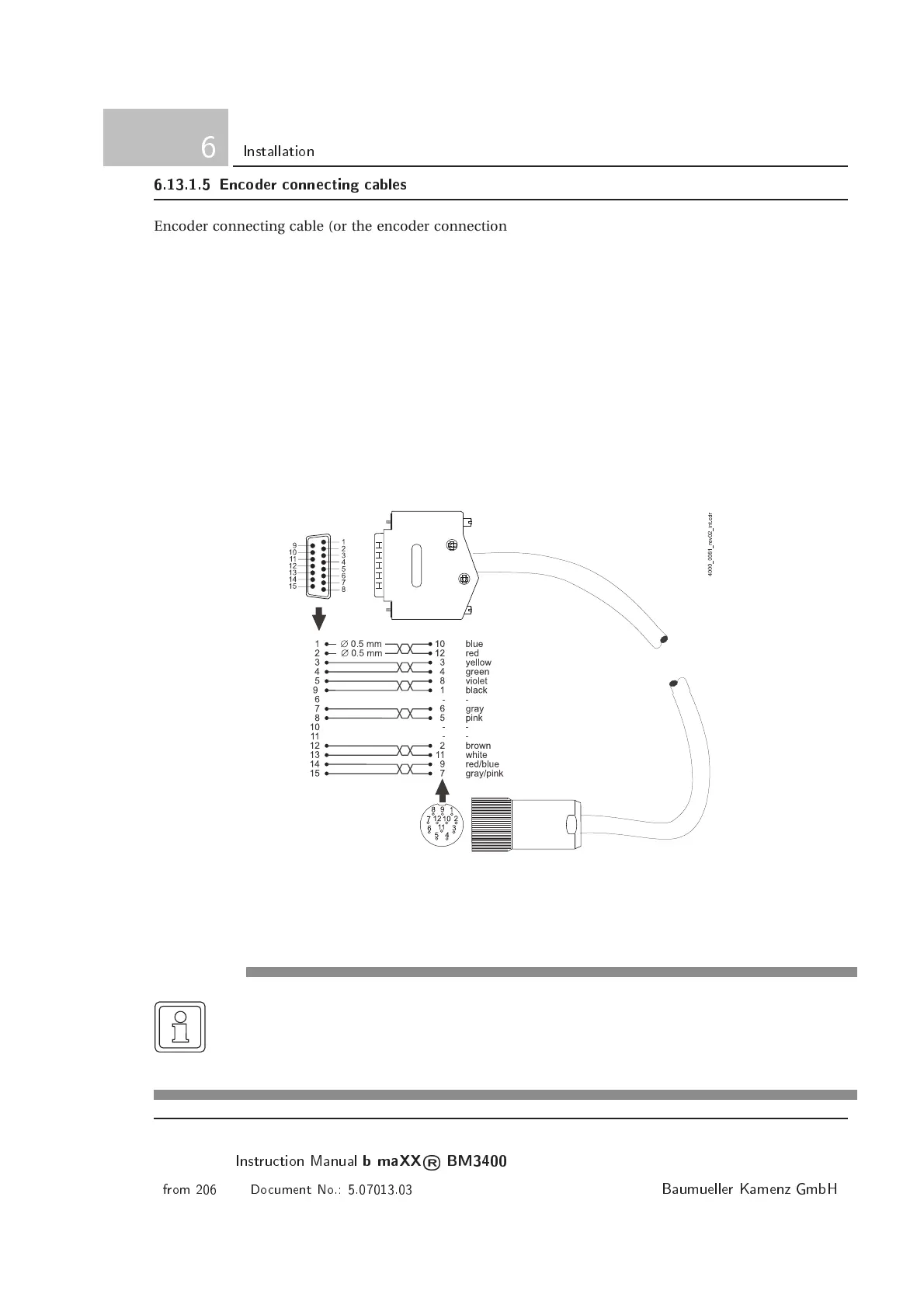

Figure 6.35: Connecting cable for all encoder types
NOTE
The connecting cable must be made according to figure 6.35! With another assignment of the
pins the cable is not able to function and defects can occur at the controller as well as at the
encoder!
96 Instrution Manual b maXX ® BM3400
from 206 Doument No.: 5.07013.03 Baumueller Kamenz GmbH
