T 6 Installation
6.12.1.2 HS1 triple phase V1 (BM341X-L3XX-XXXX-O)
Connector Qua ntity Usage Type
X26 2 dig./anal. IO COMBICON FK-MC 0,5/12-ST-2,5
X102 1 safety relay COMBICON MC 1.5/4-ST-3.5
X100 (new) 1 24V-supply COMBICON MC 1.5/6-ST-3.5
X201 (prev.)
1)
X202 1 power input COMBICON GMSTB 2,5/4-ST-7,62
1)
X100 (respectively X201) was renamed due to compatibility reasons to the b maXX® BM4400 devices, func-
tion and pin assignment, however, was kept consistent.
X102-4, M24V_R
X102-3, + 24V_R
X102-2, KS_S
X102-1, KS_P
X100-6, -24V
X100-5, -24V
X100-4, B_EIN
X100-3, N_EIN
X100-2, + 24V
X100-1, + 24V
X202-4, PE
X202-3, 1U1
X202-2, 1V1
X202-1, 1W1

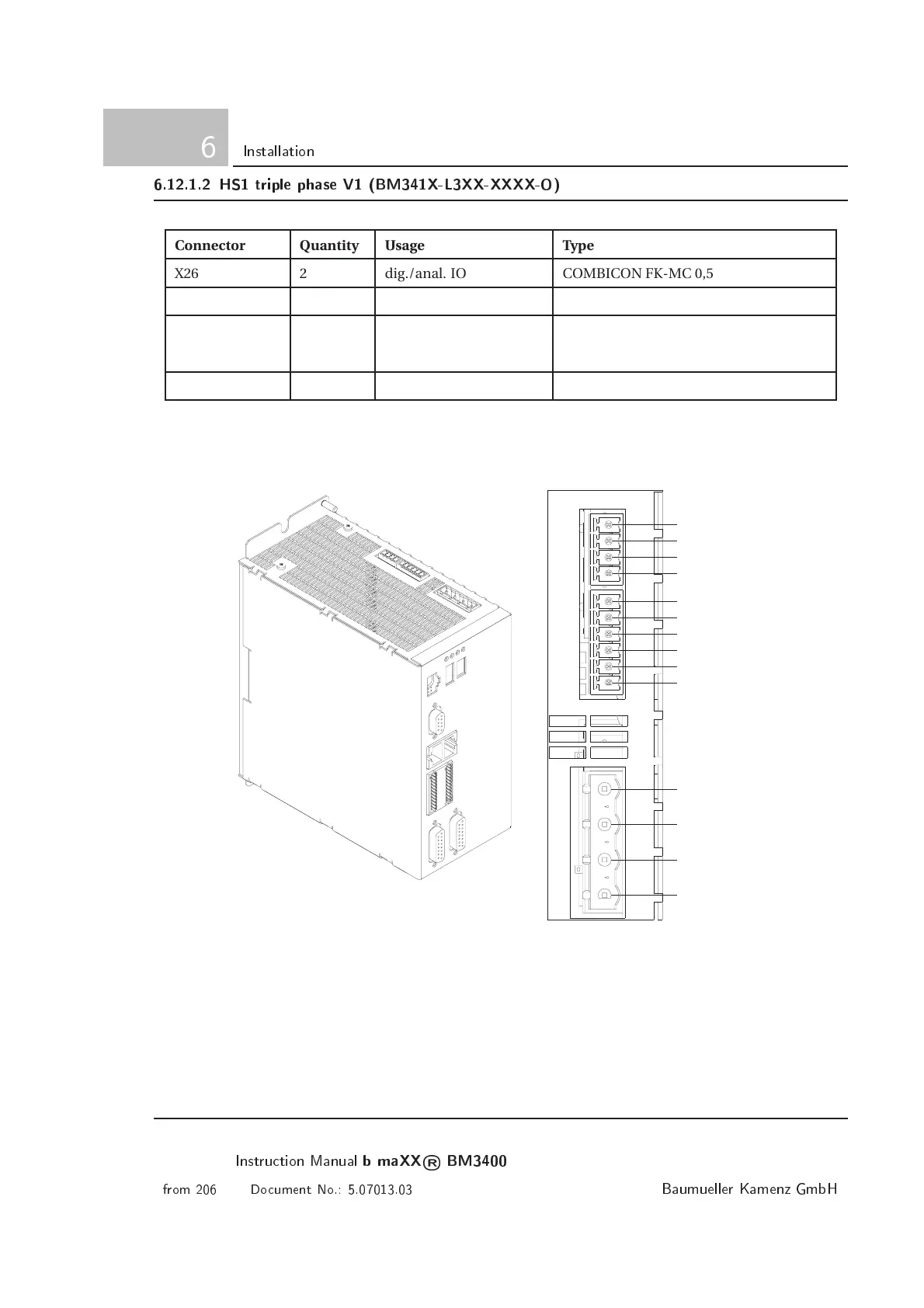

Figure 6.16: Connections on top at HS1 (triple phase supply) for type type V1
76 Instrution Manual b maXX ® BM3400
from 206 Doument No.: 5.07013.03 Baumueller Kamenz GmbH
