Connetion diagrams 6.12T
6.12.2.3 HS1 single phase V2/V3 (BM341X-L1XXX-XXXXXXX-O)
Connector Quantity Usage Type
X26 2 dig./anal. IO COMBICON FK-MC 0,5/12-ST-2,5
X102 1 safety relay COMBICON MC 1.5/4-ST-3.5
X100 1 24V-supply COMBICON MC 1,5/6-ST-3,5
X202 1 power input COMBICON MSTB 2.5/3-ST-5.08
X102-4, M24V_R
X102-3, + 24V_R
X102-2, KS_S
X102-1, KS_P
X100-6, -24V
X100-5, -24V
X100-4, B_EIN
X100-3, N_EIN
X100-2, + 24V
X100-1, + 24V
X202-3, PE
X202-2, 1N1
X202-1, 1L1

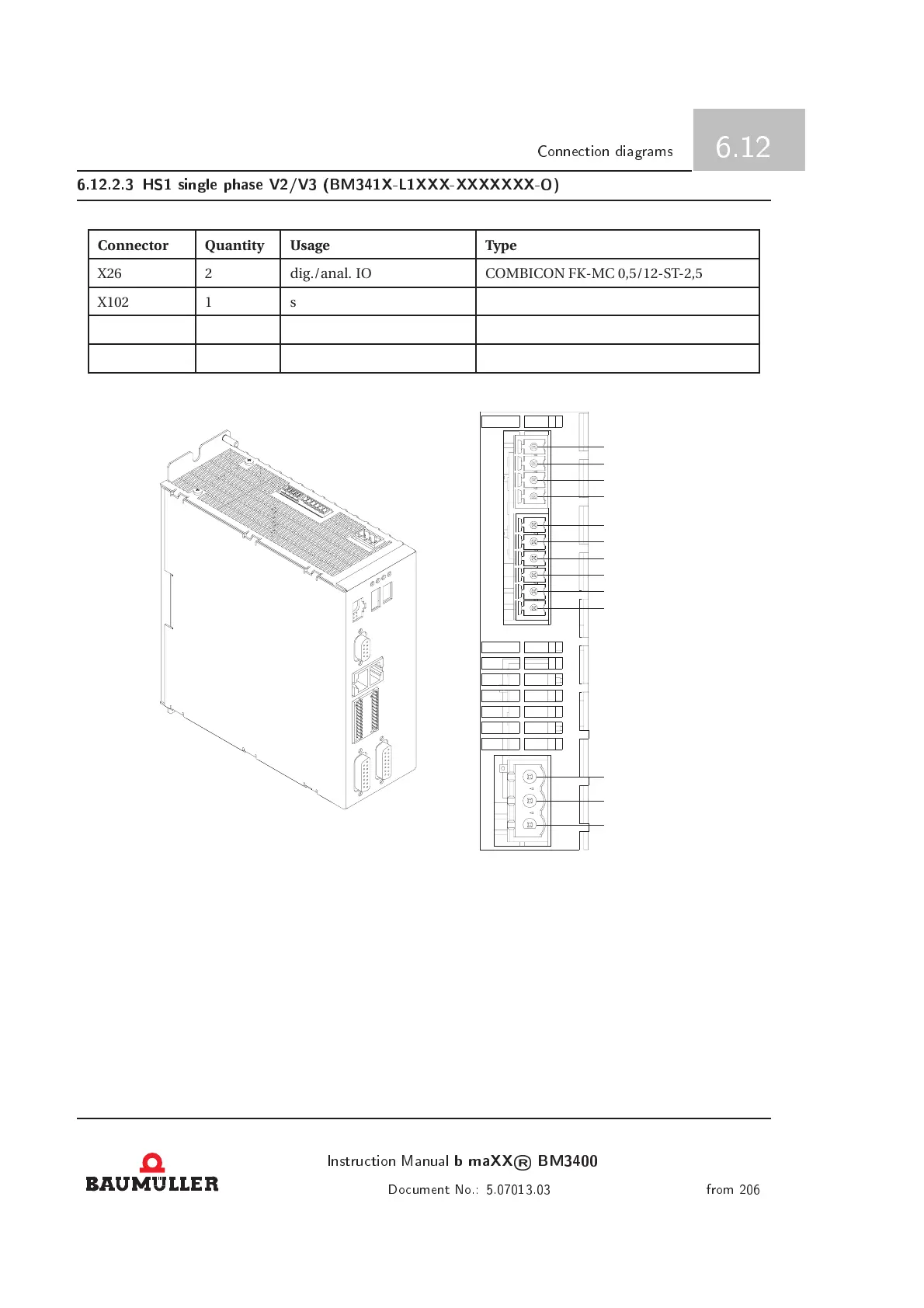

Figure 6.24: Connections on top at HS1 (single phase supply) for type key V2 ac c. to H S0
Instrution Manual b maXX ® BM3400 83
Doument No.: 5.07013.03 from 206
