Baumuller b maXX BM3400 Series User Manual

Connetion diagrams 6.12T
Connector Quantity Usage Type
X101 1 motor temperature COMBICON MC 1.5/2-ST-3.5
X205 1 chopper resistor, UDC link
connection
COMBICON GIC 2.5/5-ST-7.62
X204 1 motor connection COMBICON GIC 2.5/4-ST-7.62
X101-1, MT+
X101-2, MT-
X205-1, Bal
X205-2, Ba-
X205-3, 1D1
X205-4, 1C1
X205-5, PE
X204-1, PE
X204-2, 1U2
X204-3, 1V2
X204-4, 1W2

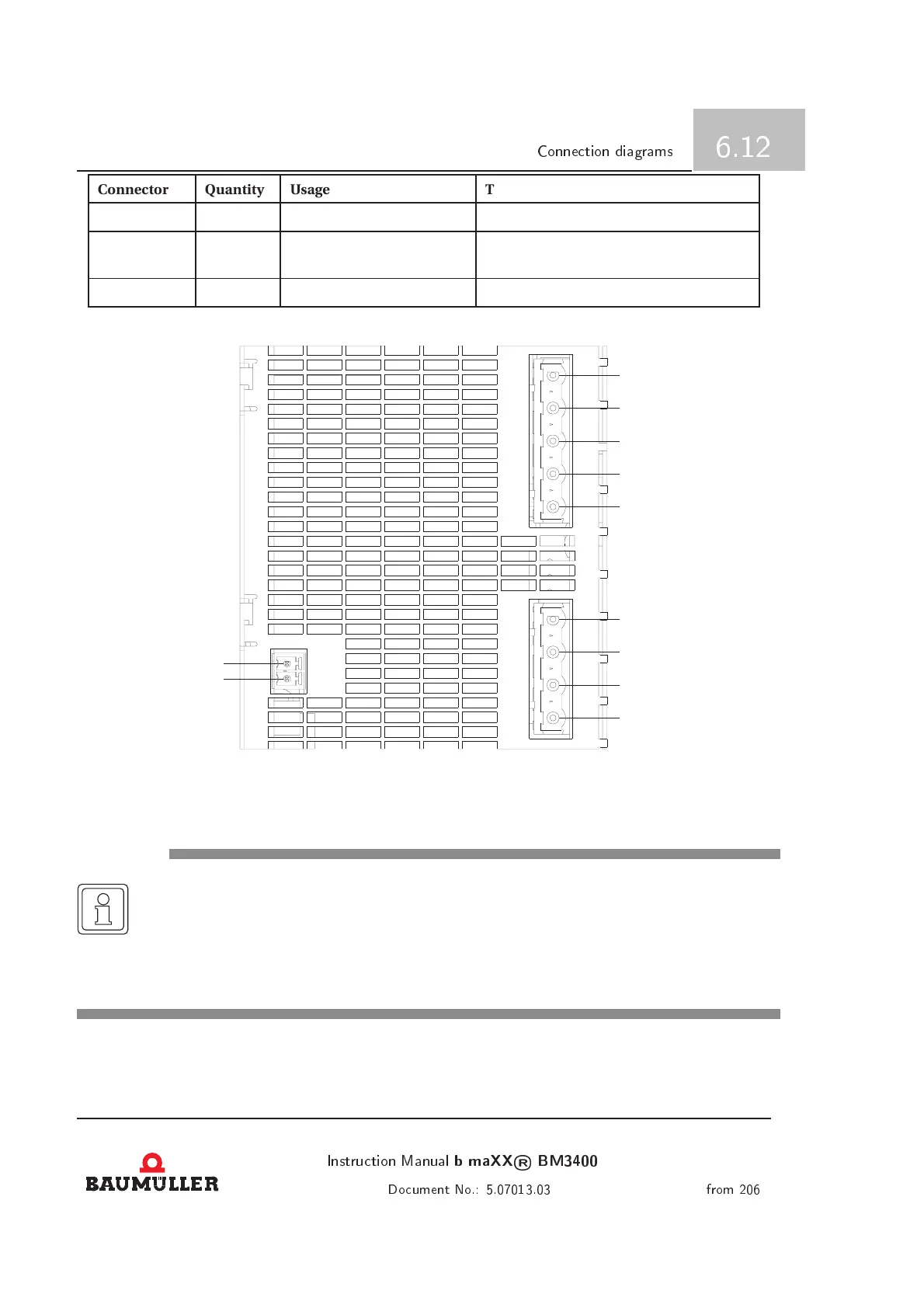

Figure 6.17: Connections at the bottom of HS1 for type key V1
NOTE
If connection X101 is used in order to connect the motor temperature cable, the screen must
be applied flat and as near as possible to the housing of the b maXX® BM3400. It is necessary
to use a cable w ith separate screening for the temperature sensor lines (also see «Appendix B
- Spare parts and accessories» from page 159). At an improper or missing screening you may
reckon, that there will be great EMC problems!
Instrution Manual b maXX ® BM3400 77
Doument No.: 5.07013.03 from 206
