Design and Operation
Instruction handbook b maXX BM4400, BM4600, BM4700
Document No.: 5.12008.07
133
of 358
4

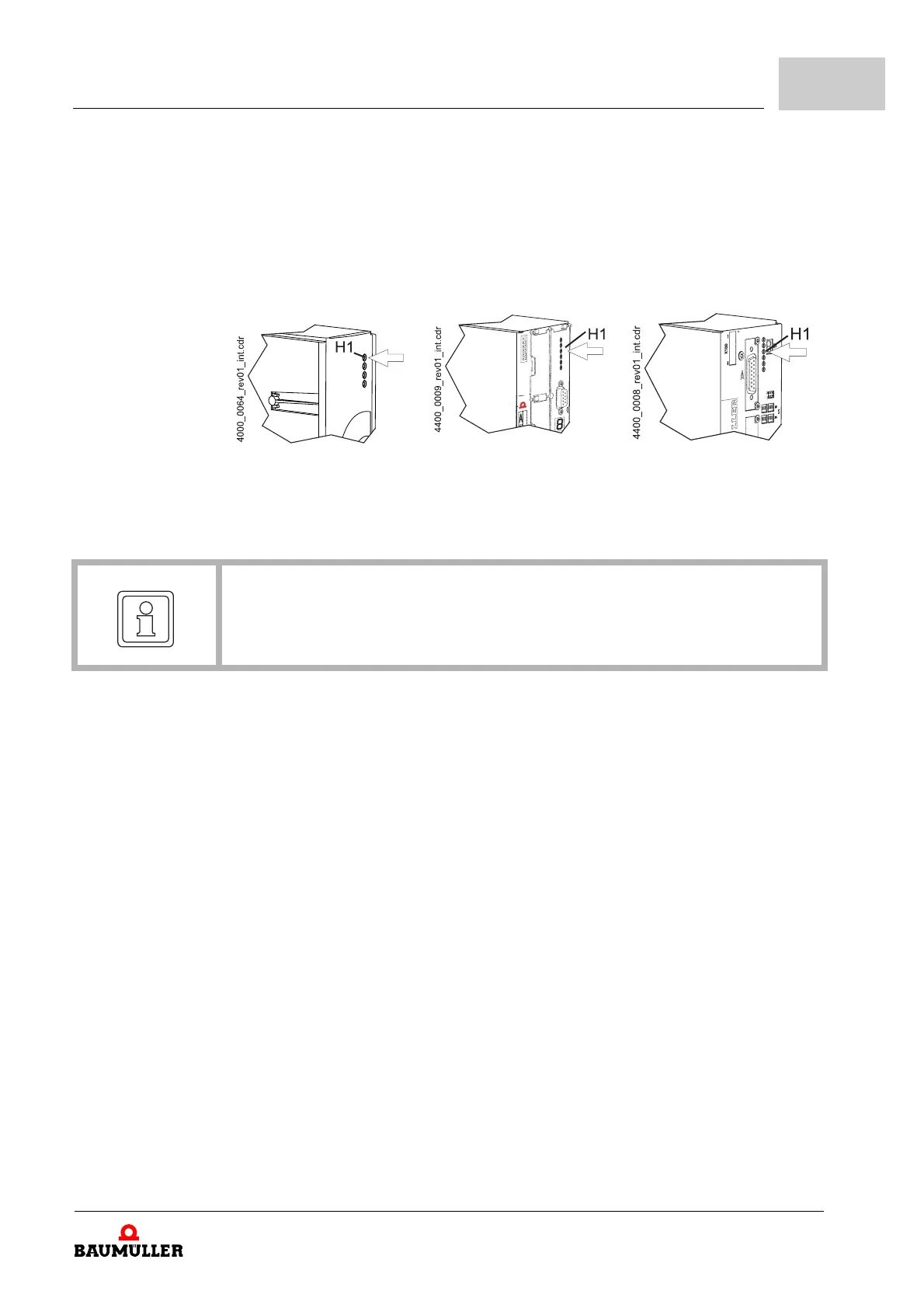

Operating status Both of the upper LEDs (H1 and H2) indicate the drive status.
H1
H2
Design cover
standard controller 4 LEDs
Without design cover
standard controller 6 LEDs
ES controller
green:
orange:
the motor rotates, torque direction 1.
the motor rotates, torque direction 2.
NOTE!
LED H1 shows only the torque direction, it cannot be used to show the direction of
rotation.
green:
orange:
flashing green/orange:
green with short orange flashing
or
orange with short green flashing:
Pulse enable. 
The motor is supplied by the power unit
Power ON, the device is ready-to-operate. 
In case the LED lights up orange colored during opera-
tion, maybe the pulse enable is missing or the quickstop
was activated.
Pulses enabled for generating the magnetic field of asyn-
chronous machines. No torque enable yet.
memory access EEPROM, if possible do not switch off
the device in this phase.
