Mounting instructions
Instruction handbook b maXX BM4400, BM4600, BM4700
Document No.: 5.12008.07 Baumüller Nürnberg GmbH
156
of 358
6.3

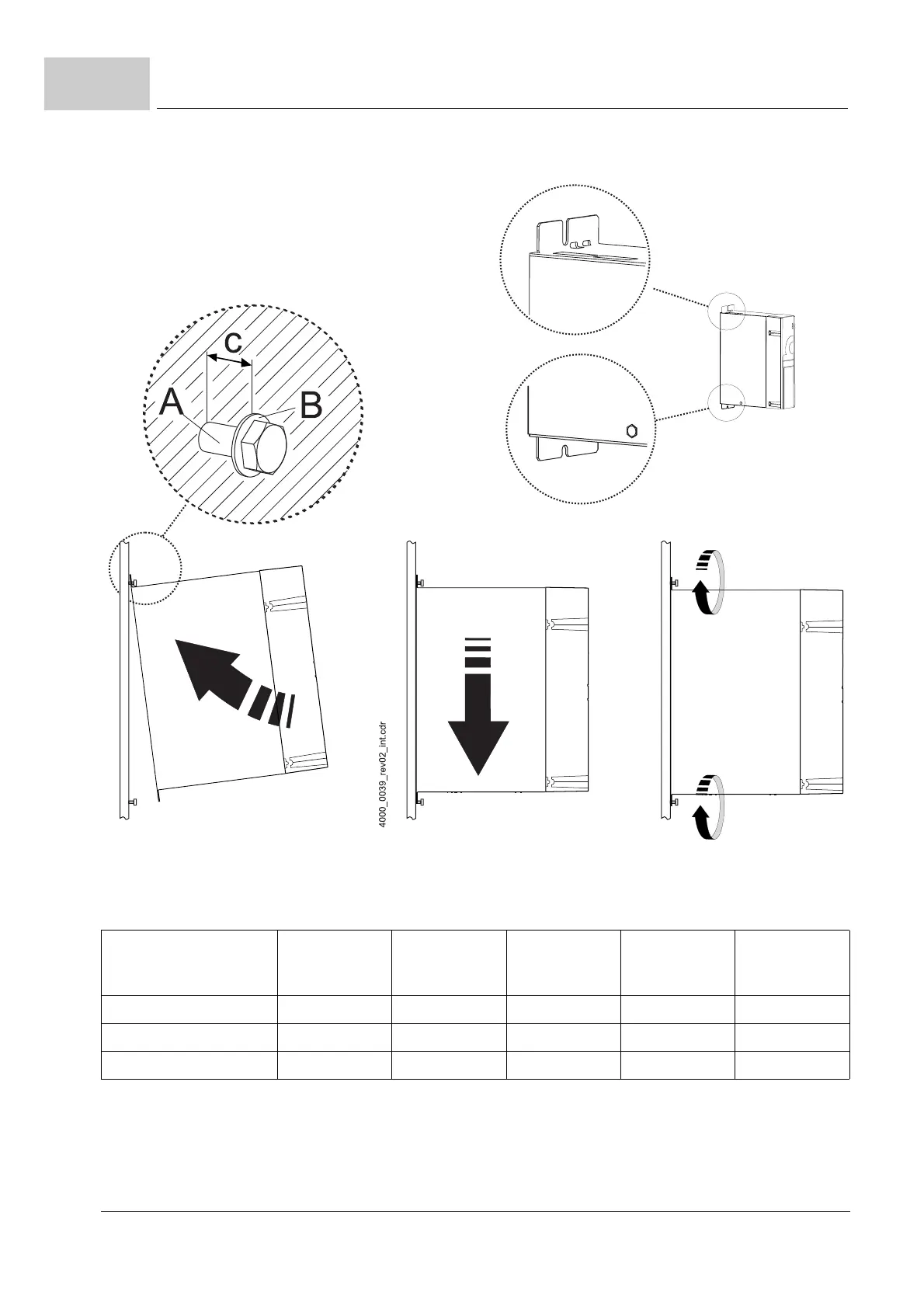

Figure 69: Mounting instruction BM441X, BM442X-S, BM4X3X-S/Z, BM444X-S/Z, BM464X-S/Z
Device BM441X-XXX
-XO
-X1
BM441X-XXX
-X2
BM442X-S BM443X-S/Z
BM463X-Z
BM444X-S/Z
BM464X-Z
A - Screws 2 x M5 4 x M5 4 x M5 4 x M5 4 x M5
B - Washers 2 x (5.3 x 10) 4 x (5.3 x 10) 4 x (5.3 x 10) 4 x (5.3 x 10) 4 x (5.3x15)
c - Mounting space c = 5 mm c = 5 mm c = 5 mm c = 5 mm c = 5 mm
