m BM4-F-ENC-02, BM4-F-ENC-12; Sine-cosine encoder module Hiperface®
The sine-cosine encoder module provides a Hiperface
®
interface.
Some encoders are listed in ZEncoder modules slot/position A and B– on page 123, pre-
assembled encoder cables see ZEncoder cables– from page 307.
All encoders, which comply to the following technical specifications, may also be used:
1)
Requirements to the temperature sensor:
Type Additional requirements Insulation
KTY84 - SELV/PELV
NTC (MSKL) R = 1 k at T
protection
, I
max
< 2mA SELV/PELV
2)
Power supply 8 V DC
Signal level Hiperface
®
- specification of operation data channel
(~1Vss; REFSIN/REFCOS 2.5V)
Permitted current input max. 250 mA

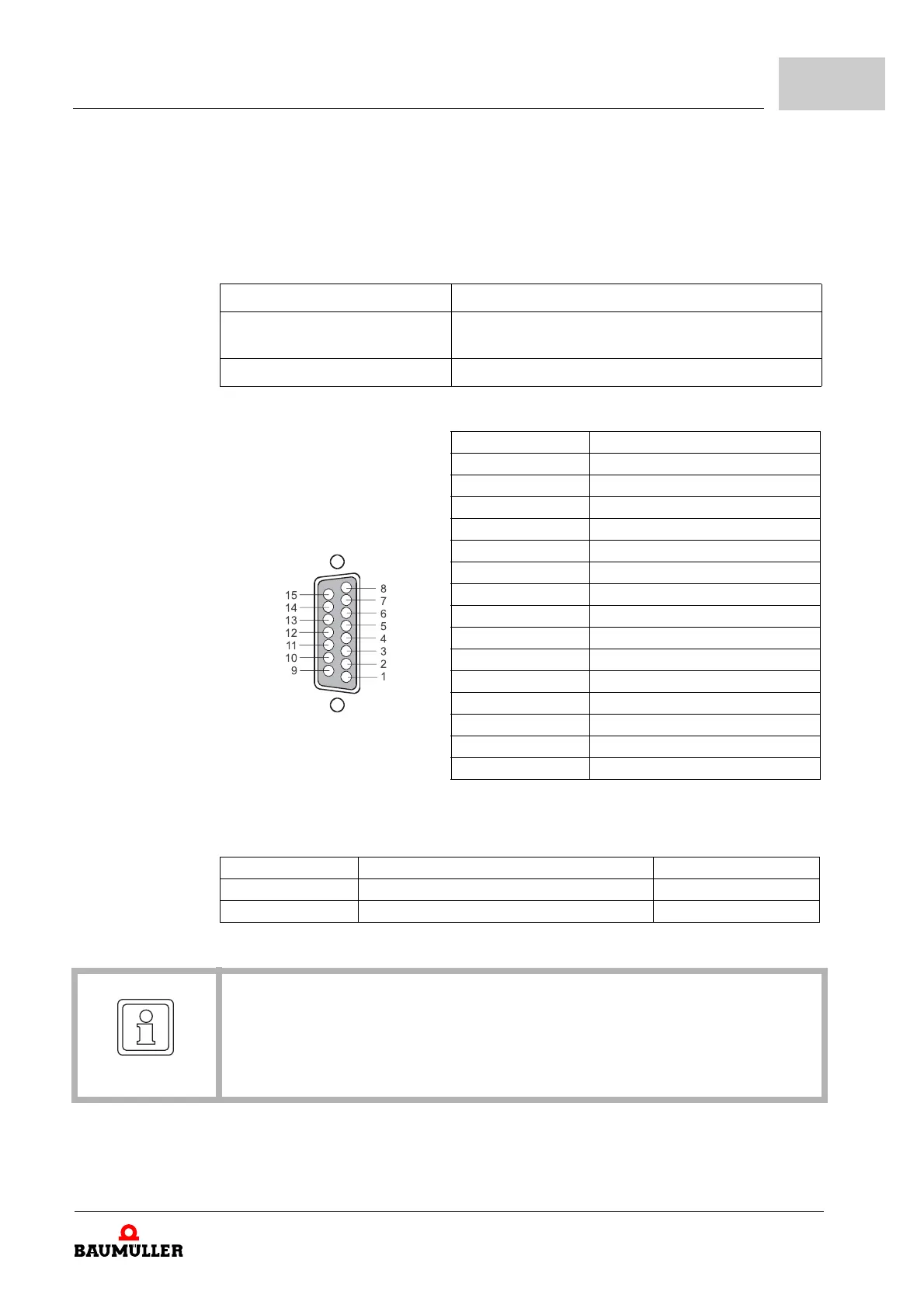

Pin assignment Pin no. Pin assignment
D-sub socket 15-pin
1 GND encoder supply
2 + 8V encoder supply
3 Reserved
4 Reserved
5 COS +
6 Reserved
7 SIN -
8 SIN +
9 COS -
10 Temperature sensor +
1) 2)
11 Temperature sensor -
1) 2)
12 RS485 +
13 Reserved
14 Reserved
15 RS485 -
* do not assign
NOTE
At use of module in connection with pre-assembled Baumüller encoder cables the
temperature sensor is not connected to the encoder cable!
You can connect the temperature sensor separately at the module (in the D-sub con-
nector) or at the power unit.
