Baumuller BM4400 - Page 209

Installation
Instruction handbook b maXX BM4400, BM4600, BM4700
Document No.: 5.12008.07
209
of 358
7
m BM4-F-ENC- 06; Encoder module EnDat
®
2.2

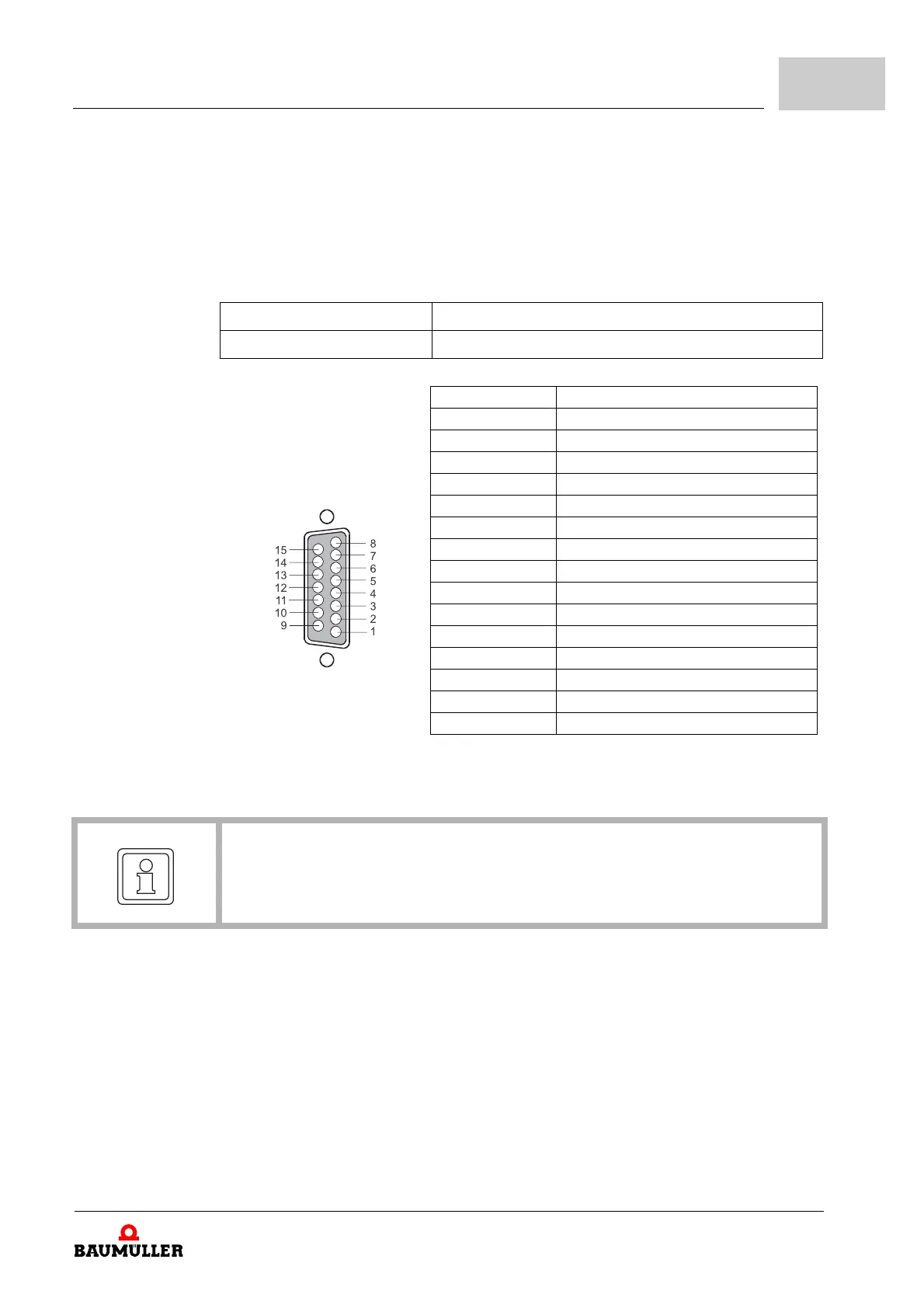

Pin assignment Pin no. Pin assignment
D-sub socket 15-pin
1 not assigned
2 GND encoder supply
3 not assigned
4 +5 V encoder supply
5 DATA +
6 not assigned
7 not assigned
8 CLK +
9 not assigned
10 GND encoder supply
11 not assigned
12 +5 V encoder supply
13 DATA -
14 not assigned
15 CLK -
The encoder module is only provided with a bidirectional, synchronous-serial EnDat
®
-in-
terface via the position data and parameters with a data rate of max. 8 MBit/s are ex-
changed between control electronics and encoder. 
Some encoders are listed in ZEncoder modules slot/position A and B– on page 123. 
All encoders, which comply to the following technical specifications, may also be used:
Power supply 8 V DC, stabilized to +5 V at the encoder
Permitted current input max. 250 mA
NOTE
Encoder cable for EnDat
®
2.2 without incremental signals (original encoder cable of
Heidenhain), see ZEncoder cables– from page 307.
