Controller terminals
Instruction handbook b maXX BM4400, BM4600, BM4700
Document No.: 5.12008.07 Baumüller Nürnberg GmbH
214
of 358
7.11

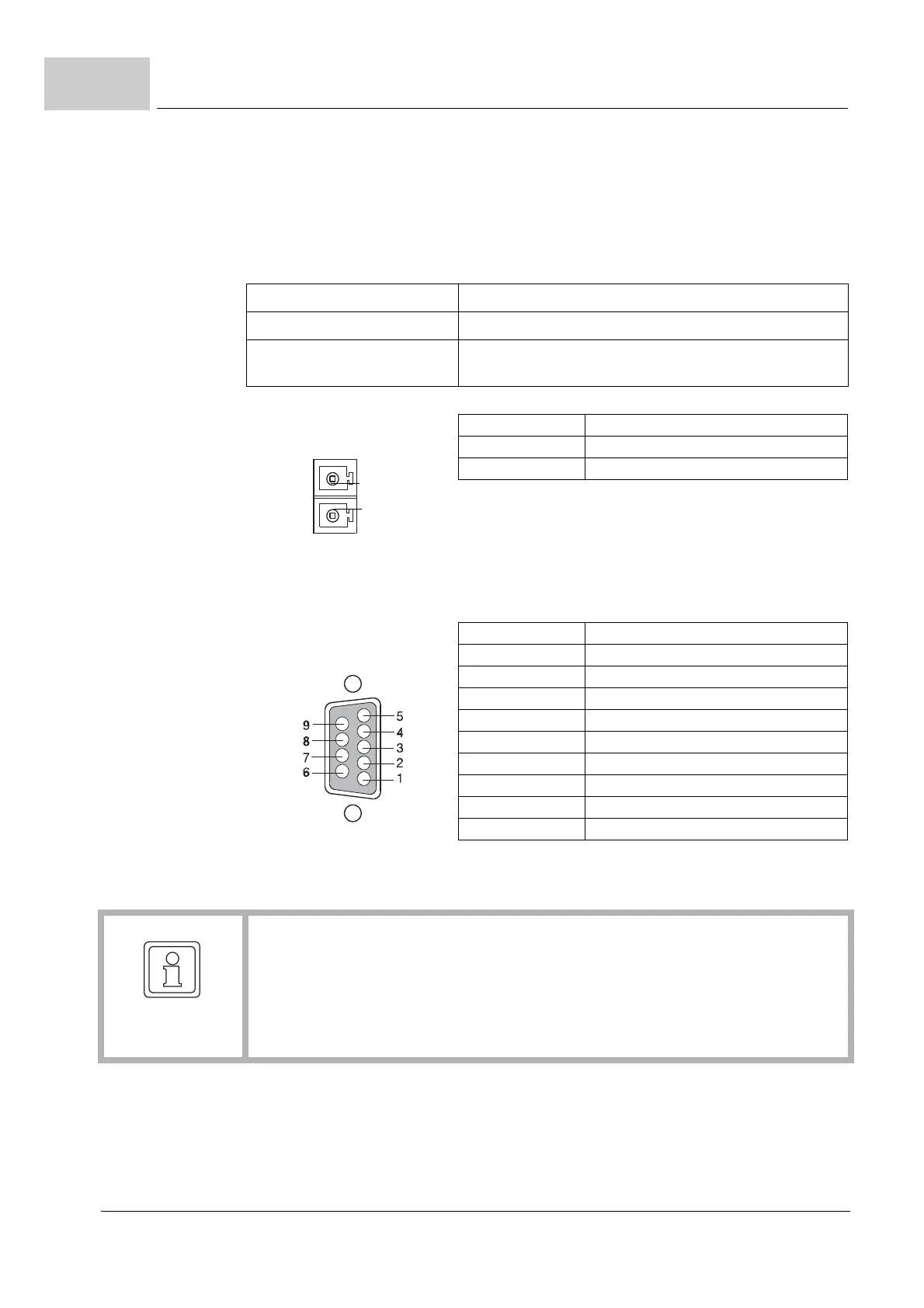

m BM4-F-ENC- 27; Encoder module SSI with 24 V encoder supply
Pin assignment encoder supply Pin no. Pin assignment
1
2
X1 Socket 2-pin
1 +24 V DC
2 0 V
The encoder module is provided with a synchronous-serial SSI standard interface via the
position data and parameters with a data rate of max. 1 MBit/s are exchanged between
control electronics and encoder. All encoders, are listed in ZEncoder modules slot/posi-
tion A and B– on page 123, may be used:
Power supply 2
4 V DC, according encoder specification +0.5 V
Signal level differential
Permitted current input
(encoder)
max. 200 mA
Pin assignment encoder Pin no. Pin assignment
X2 D-sub socket 9-pin
1 Data -
2 Data +
3 Reserved*
4 Reserved*
5 Reserved*
6 +24 V DC
7 0 V
8 Clock +
9 Clock -
* do not assign
NOTE
Only if the cable break monitoring is supported (see ProDrive, page „Slot identifica-
tion“) and if the cable break monitoring is activated (see parameter handbook P0573)
both cable break and missing of the 24V power supply and a cable break in Data+/
Data- is identified. Otherwise the availability of the 24 V power supply is not checked
and a broken cable is not detected by the controller.
