Installation
Instruction handbook b maXX BM4400, BM4600, BM4700
Document No.: 5.12008.07
215
of 358
7
Instruction:
1 Use the following materials:
m Cable
: 6 leads (recommended: 2 x (2 x 0.14) + 2 x 0.5 mm², trunk cable in pairs and
screened, tinned Cu braiding with at least 85% opt. overlap
m D-
sub connector. 9-pin, male
m Suitab
le encoder plug, circular connector, 7-pin, female
2 Conn
ect the cable shield with the cabinet of the circular connector and with the shield
of the D-sub connector
1
6
7
8
9
2
3
4
5
1
2
3
4
5
6
1
2
8
9
6
7
0,5 mm²
0,5 mm²
1
4
2
5
3
7
6
Encoder plug, e. g. Temposonics
Plug view

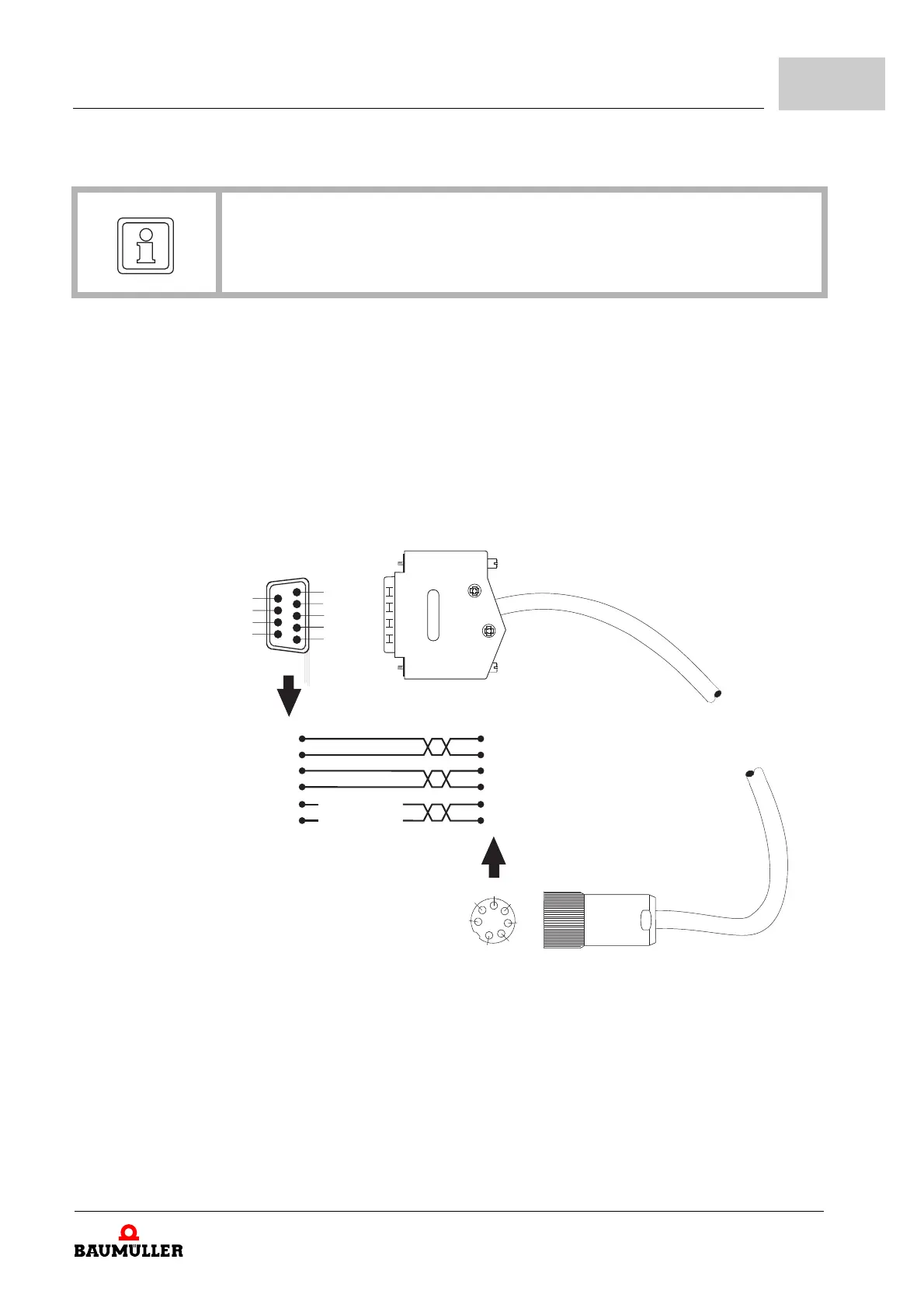

Figure 94: Connection cable BM4-F-ENC-27
NOTE
The connection cable is not offered by Baumüller and must be made by the user!
