Power chokes
Instruction handbook b maXX BM4400, BM4600, BM4700
Document No.: 5.12008.07 Baumüller Nürnberg GmbH
302
of 358
11.4

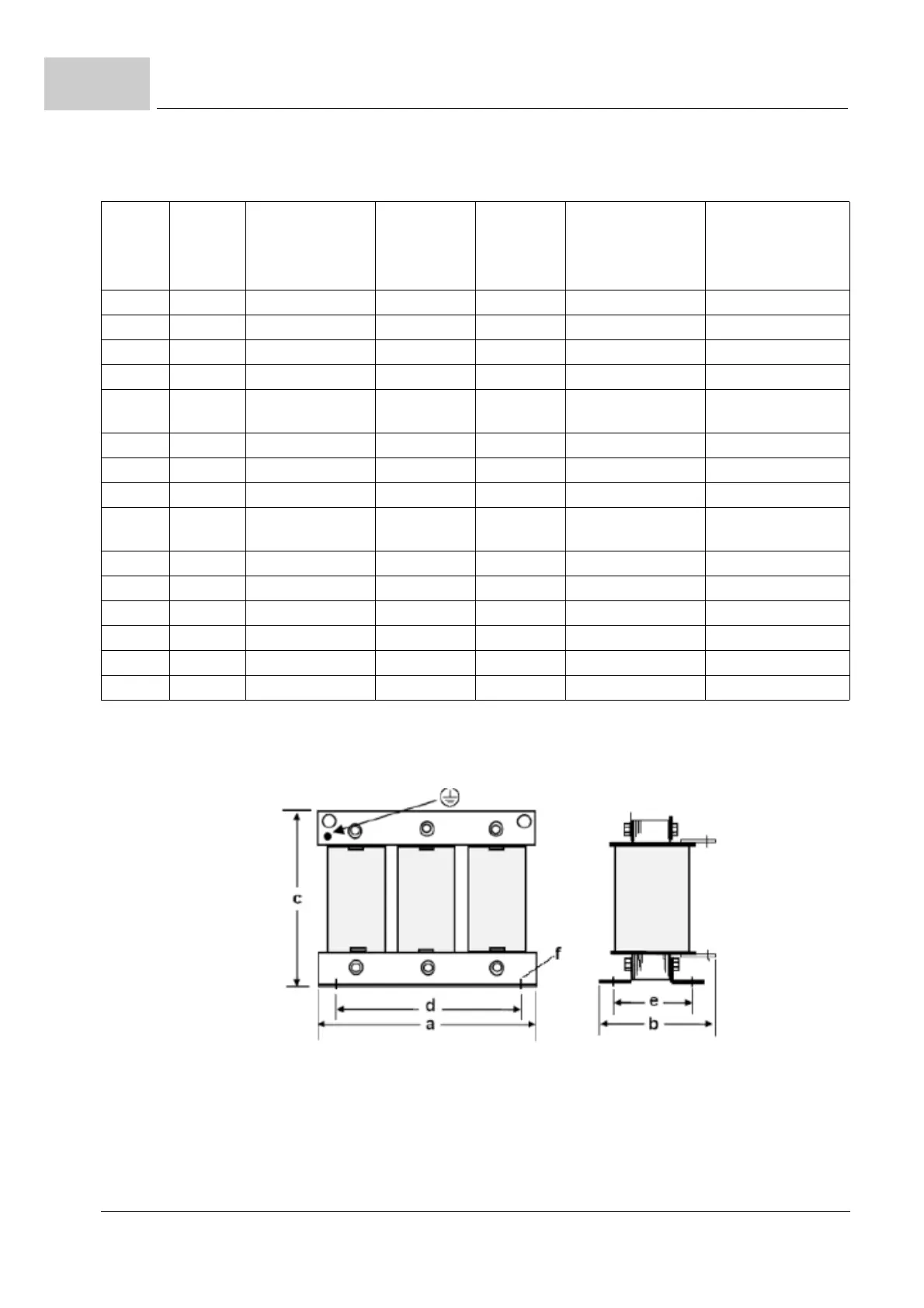

Figure 108: Figure power choke
I
rated AC
Induc-
tance
Type code Part No.
type -001,
connection
copper bar
Part No.
type -002,
connection
terminal
For devices
operation with
peak current
For devices
operation with
rated current
25 A 1.18 mH BK3-0025/0030 368377 399136 - BM4432, BM4433
40 A 0.72 mH BK3-0040/0050 368378 399137 BM4432, BM4433 BM4434
65 A 0.45 mH BK3-0065/0080 368379 399138 BM4434, BM4435 BM4435
80 A 0.36 mH BK3-0080/0100 368380 399139 - BM4443
115 A 0.26 mH BK3-0115/0140 368381 399140 BM4443,
BM4444
BM4444, BM4445,
BM4452
165 A 0.18 mH BK3-0165/0200 368382 399141 BM4445, BM4452 BM4446, BM4453
195 A 0.15 mH BK3-0195/0240 368383 - BM4446, BM4453 BM4755
275 A 105 µH BK3-0275/0340 368384 - BM4454 BM4454, BM4462
365 A 80 µH BK3-0365/0450 368385 - BM4462, BM4463,
BM4755
BM4463, BM4466,
BM4766
450 A 65 µH BK3-0450/0550 368386 - BM4466, BM4766 -
530 A 55 µH BK3-0530/0650 368387 - - BM4472
615 A 48 µH BK3-0615/0750 368388 - BM4472 -
750 A 39 µH BK3-0750/0920 368389 - - BM4473, BM4773
920 A 32.6 µH BK3-0900/1100 368390 - BM4473, BM4773 -
1020 A 28 µH BK3-1020/1250 395020 - - -
