Dimensions
Instruction handbook b maXX BM4400, BM4600, BM4700
Document No.: 5.12008.07 Baumüller Nürnberg GmbH
46
of 358
3.1
*: Observe minimum clearance. Observe ZCooling– from page 61.
**: without brake resistor
***: with brake resistor

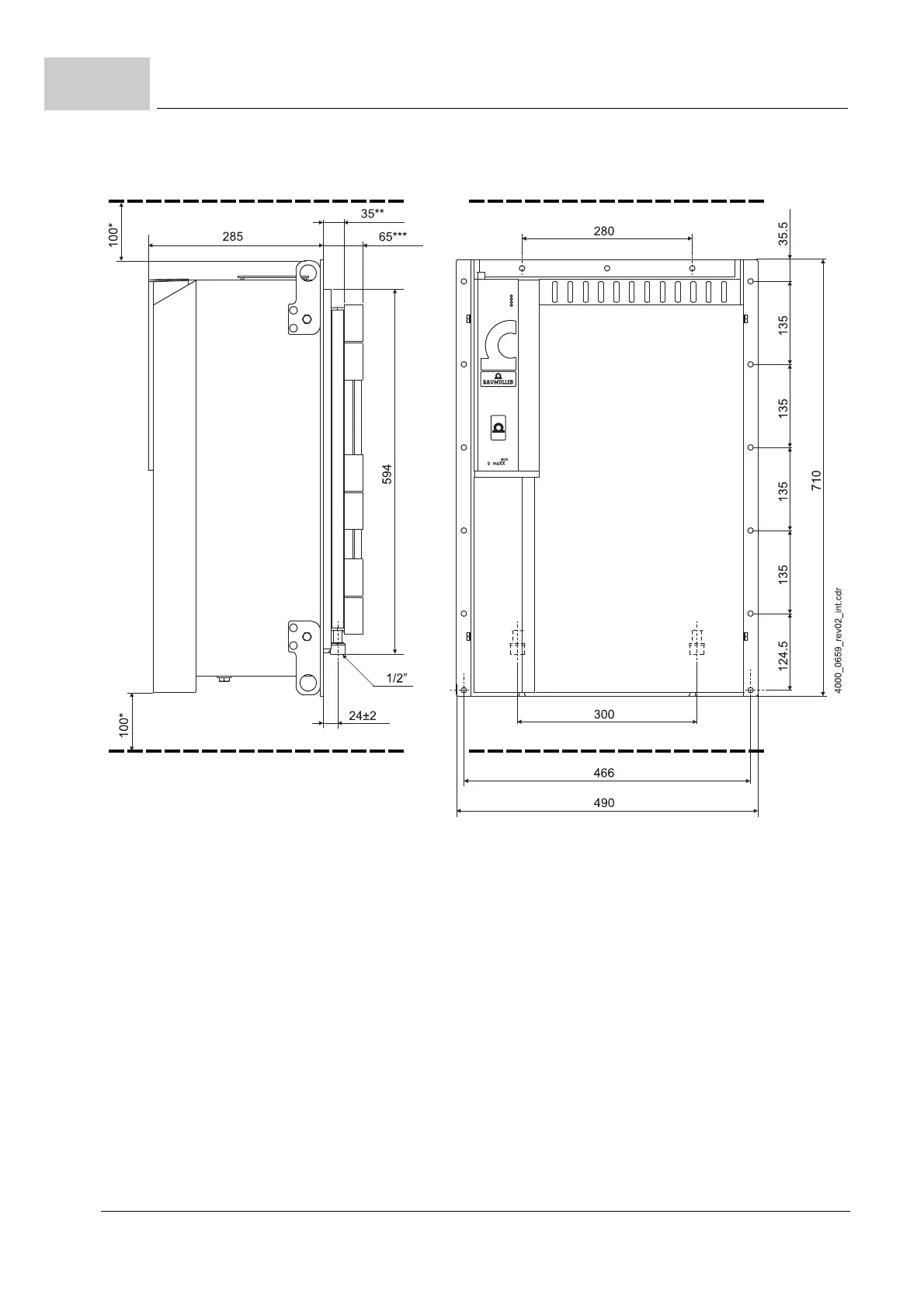

Figure 20: Dimensions BM466X-FXX-3XXXX and BM476X-FXX-3XXXX
