07-19-B3-430 Auto Syringe AS50 Infusion Pump Operator’s Manual Page 19
General Information

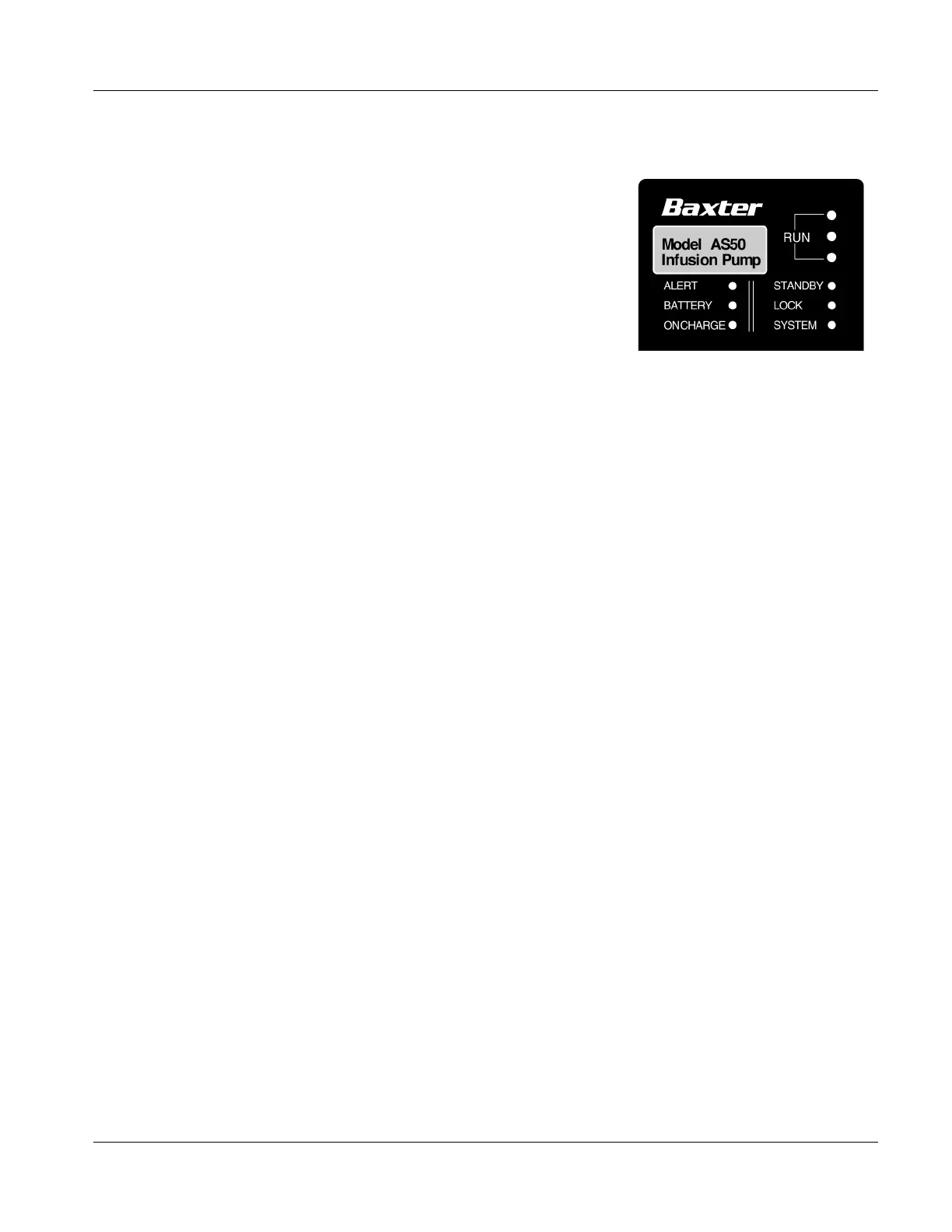

The Status Panel
RUN lights When the pump is in
the Run state, one or
more of the green
RUN
lights are on.
When the pump is
infusing, the three
RUN
lights flash in
sequence, in a “falling
drop” pattern.
When the pump is counting time until an infusion is to
begin, only the top
RUN light flashes.
When a bolus or purge is in progress, all three
RUN lights
flash simultaneously.
ALERT The red
ALERT light flashes during an alert or alarm. The
status display and remaining status lights may display
additional information.
BATTERY When flashing, the red
BATTERY light indicates that the
battery charge is low. If the battery discharges significantly,
the
BATTERY light stays on constantly and the pump goes
into a fail-safe alarm state.
ON CHARGE The green
ON CHARGE light indicates that the battery
charger is plugged in.
STANDBY The yellow
STANDBY light flashes to indicate that the pump
is in Standby state.
LOCK The yellow
LOCK light indicates that the keypad is locked.
SYSTEM The red
SYSTEM light indicates a malfunction. The pump
cannot operate until the problem is corrected. The infusion
must then be reprogrammed.
