The Status Display

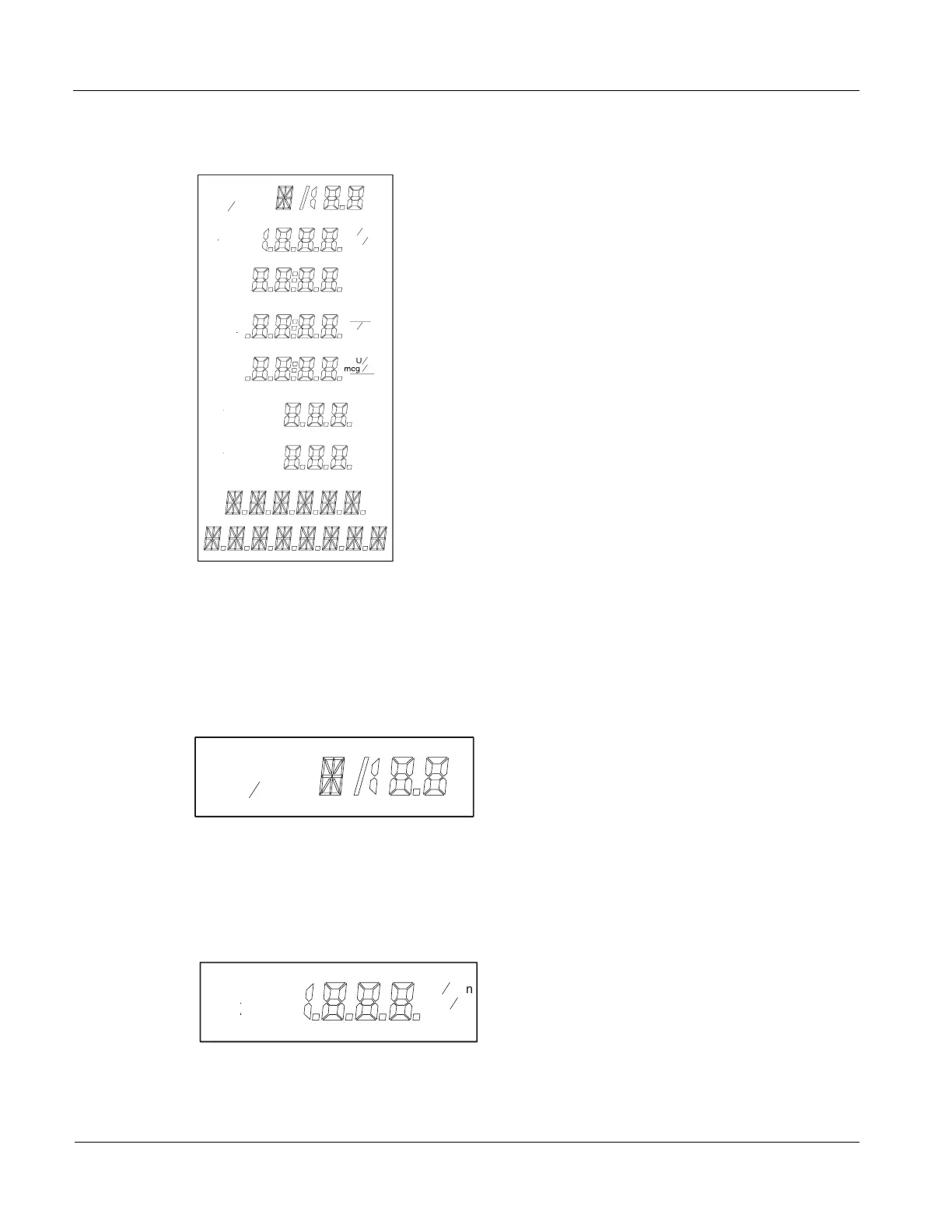

The status display has eight information areas, called
fields. Except for the text field at the bottom, each field
displays three types of information:
● The markings on the left and right side of each field are
called annunciators. The left annunciators identify the
type of data contained in the field, while the right
annunciators identify the units of measure.
● The central portion of each field displays variable
numeric data, either decimal numbers or time. This data
generally represents either infusion program information
or an active display such as a running total of the
amount of drug infused.
● The bottom field of the status display is a two-line text
display, used to prompt the programming sequence or to
display a message about the infusion.
After the infusion mode has been selected, the pump
automatically displays the necessary fields to be
programmed. When the pump needs information, it
provides a text prompt and flashes the current field.
Note: The pump’s backlight is on whenever the charger is connected and the pump is
switched on. The pump can also be configured to turn the backlight on for a spec-
ified time (0 to 60 minutes) after each keypress when the charger is not con-
nected. See the Auto Syringe AS50 Infusion Pump Technical Manual for details.
Field #1 displays the syringe manufacturer
code and syringe size in mL.
Field #2 displays the volume to be infused
(mL), or the infusion rate (mL/hr or mL/min).
