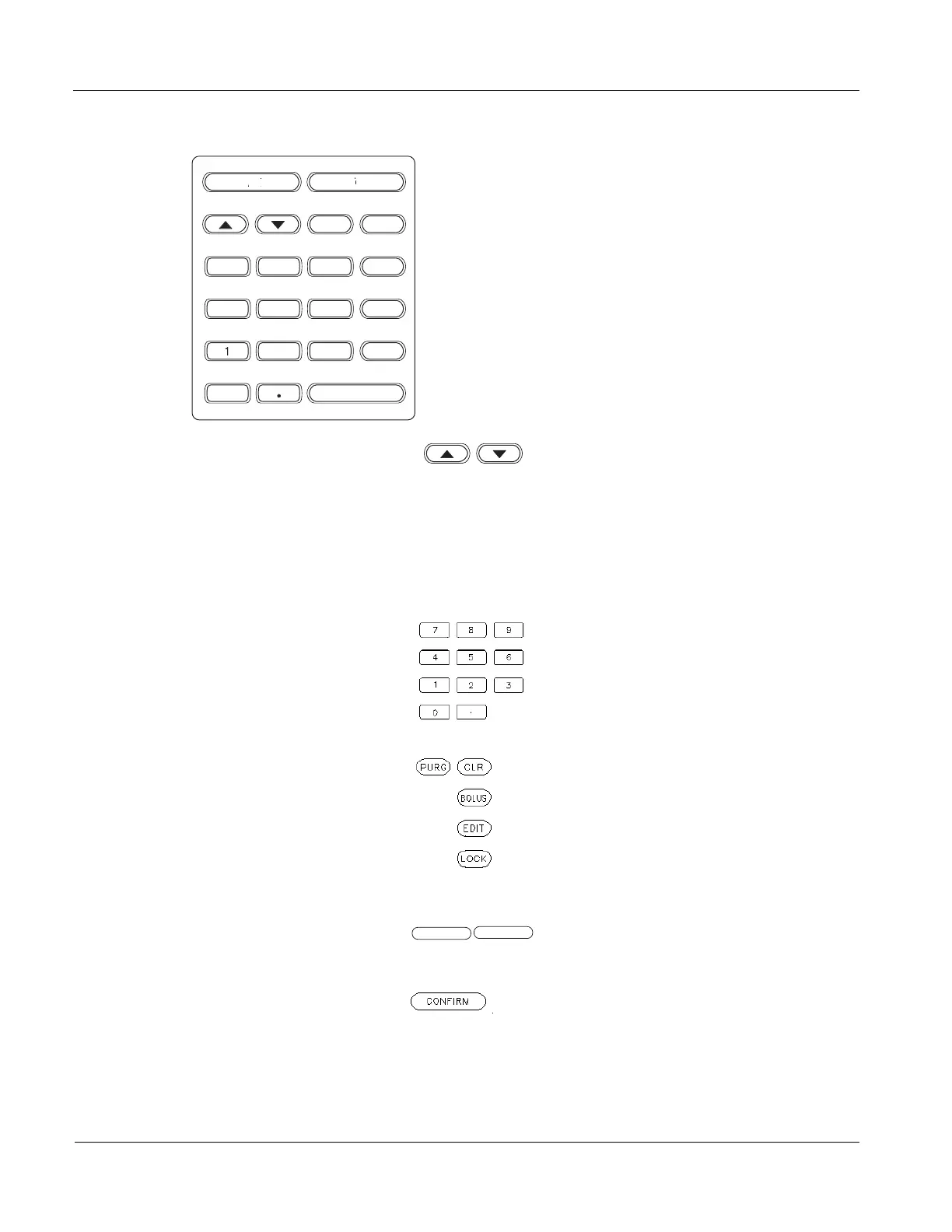

The Keypad
The keypad includes a standard set of number keys and
decimal point (referred to in this document as digit keys),
arrow keys, and various function keys.
Arrow Keys The up arrow key (▲) increases a number,
selects a different field, or displays the
next item in a list.
The down arrow key (▼) decreases a
number, selects a different field, or
displays the previous item in a list.
Digit Keys The digit keys are used to enter numeric
values directly.
Function Keys These keys activate specific functions.
Action Keys These keys start and stop the pump motor.
Confirm Key This key is used to complete a
programming step, to respond to a
prompt, or to display additional infusion
program information.
