Pump Maintenance
Page 70 Auto Syringe AS50 Infusion Pump Operator’s Manual 07-19-B3-430
IV Pole Clamp
The pump is supplied with a
detachable, adjustable pole clamp
which allows it to be mounted to a
standard vertical IV pole. The pole
clamp can also be adjusted to allow
the pump to be used on a horizontal
pole.

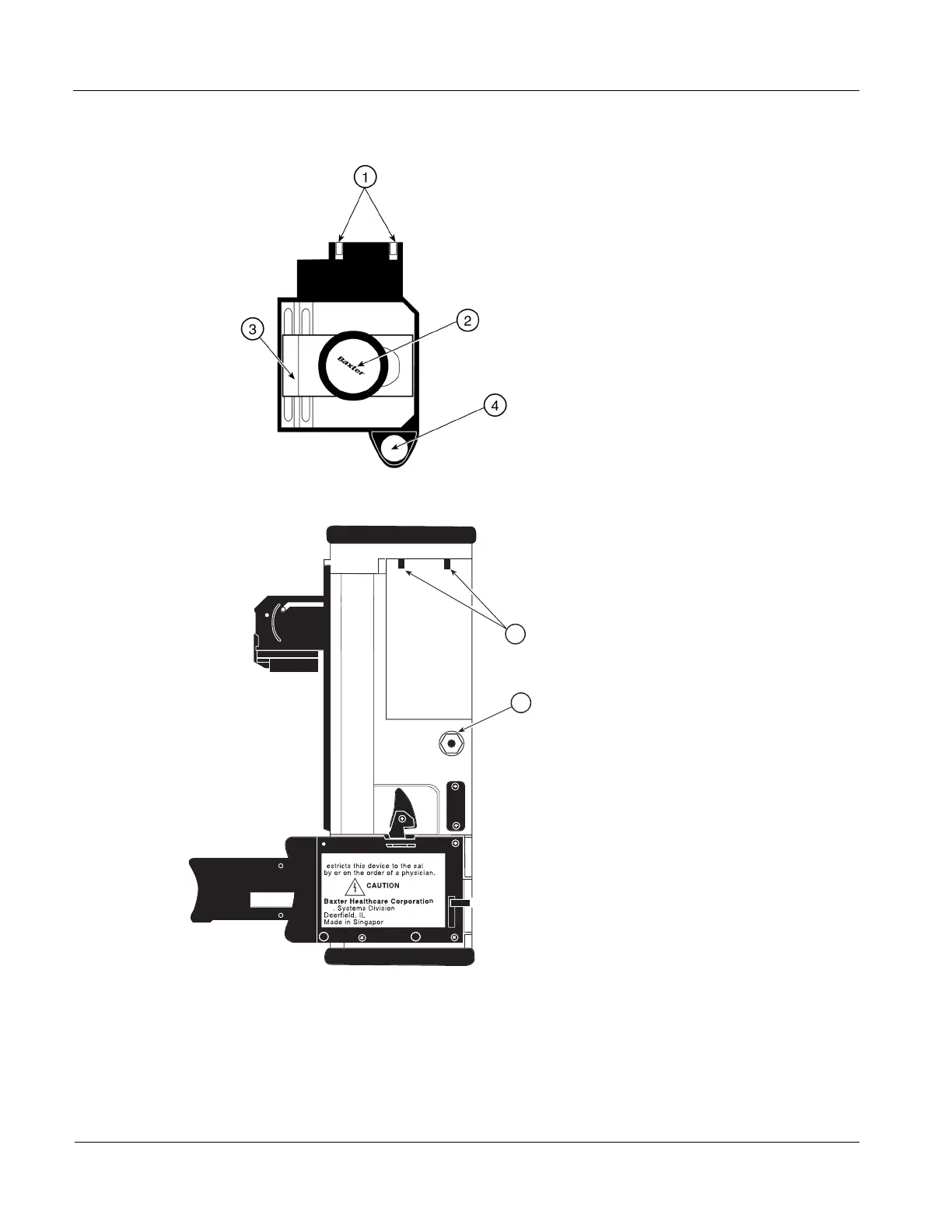

To attach the pole clamp to the pump,
first slide the clamp in place, so that
the MOUNTING PIN CUTOUTS (1)
on the clamp engage the MOUNTING
PINS (5) built into the rear of the
pump. Tighten the MOUNTING
SCREW (4) into the threaded
RECESS (6) just below the battery
cover. Tools are not required for this
operation.
The JAW (3) clamps the pump to the
IV pole. Turn the KNOB (2)
counterclockwise to open the jaw, and
clockwise to close it. Tighten the knob
by hand only. Do not use tools to
tighten the knob.
6
5
Cautions-Federal
(
U.S.A.
)
l
a
w
r
e
n
I.V
600
1
5
e
