44
6-847718-00 Rev. B00
Label
(provided)
Slide label into slit in
front panel overlay
Digital Display Module
Label each digital display module using
provided location labels.
1. Mark location on location label.
2. Slide location label into pocket in front
of digital display module (Figure 37).
Multi-Signal Module
Label each multi-signal module using
provided system status labels.
Blank system status labels are provided for
custom signal names.
1. Slide system status labels into pockets
in front of multi-signal module
(Figure 38).
Installation Procedures
Labeling (Cont.)
Finish
Label
(provided)
Slide label(s) into slits
in front panel overlay
Location label
Sensor Module
1. Mark location monitored by sensor in
space provided on sensor label
(Figure 39).
Figure 39: Sensor Module Location Label
Figure 38: Multi-Signal Front Panel Labeling

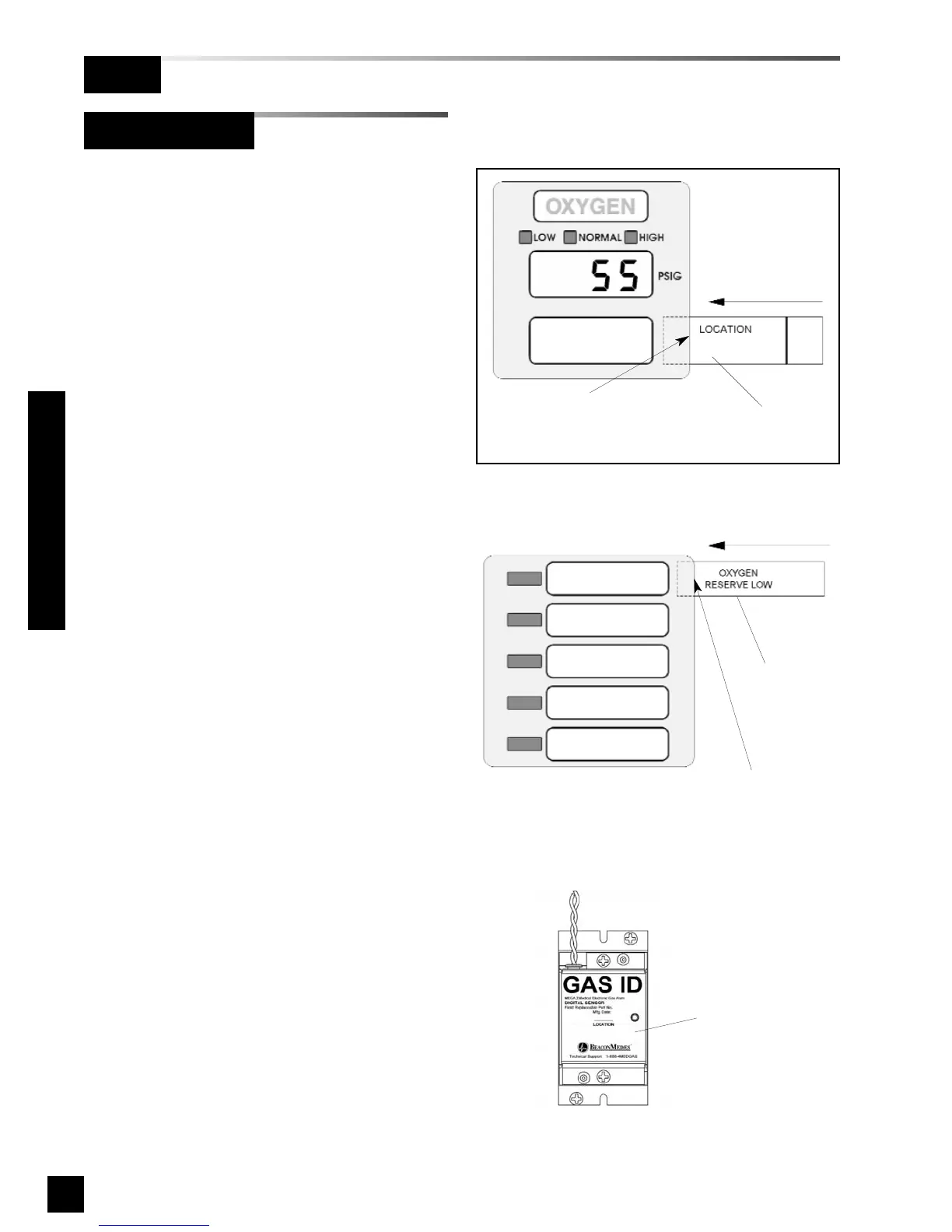

Figure 37: Digital Display Module
To Next Page
