1 695 106 288 2013-10-30| Beissbarth GmbH
26 | MS 63 | Initial commissioningen

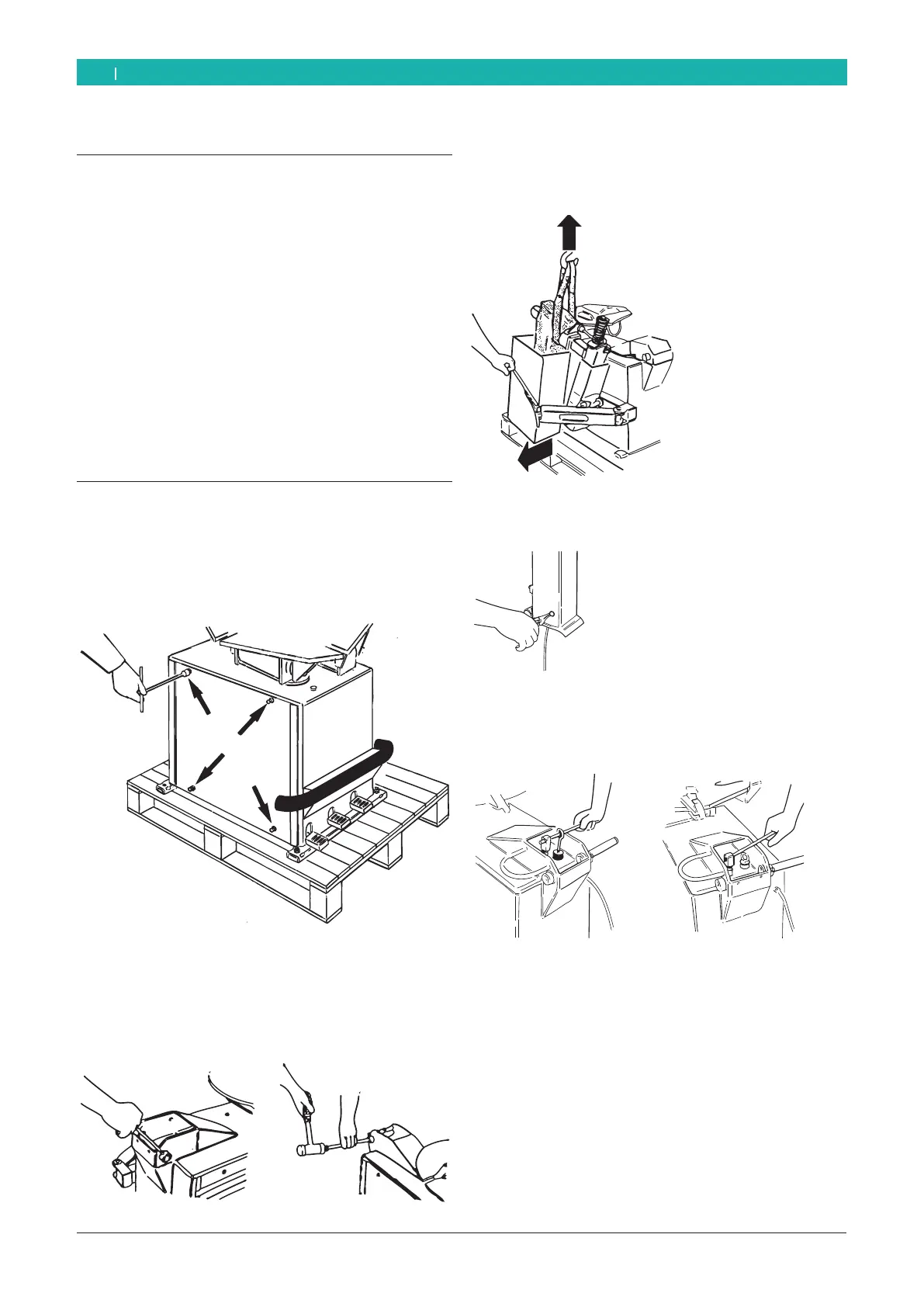

4. Initial commissioning
4.1 Unpacking
1. Remove the iron tape and the fixing clamps from the
pallet and the packaging cardboard.
i After unpacking check the integrity of MS 63 and
check that no components are visibly damaged. In
case of doubt do not proceed to start-up and con-
tact a qualified technician and/or your vendor.
2. Take out of the transport crate the standard accesso-
ries and the packaging materials.
i Dispose correctly of packaging material, hand it over
to the designated collection points.
4.2 Assembly
4.2.1 Cover removal
1. Unscrew the 4 screws of the side cover and remove
the cover itself.
652012-01_Mi
4.2.2 Lifting of the tilting column
1. Unscrew the fulcrum-pin screw of the column with
the hex key 6 and remove the pin.
652012-02_Mi
2. Get a 1 Mt lifting sling, DR 50 model (safety factor
6:1); wrap the sling around the tilting column (1),
extend the bead breaking arm and lift the column
with a hoist (2).
652012-03_Mi
2
3. Remove the external elastic ring with appropriate
pliers and take off the pin.
652012-04_Mi
4.2.3 Column fixing
1. Align the cylinder rod and the tie rod holes.
2. Insert the air tube in the slot in the machine box.
