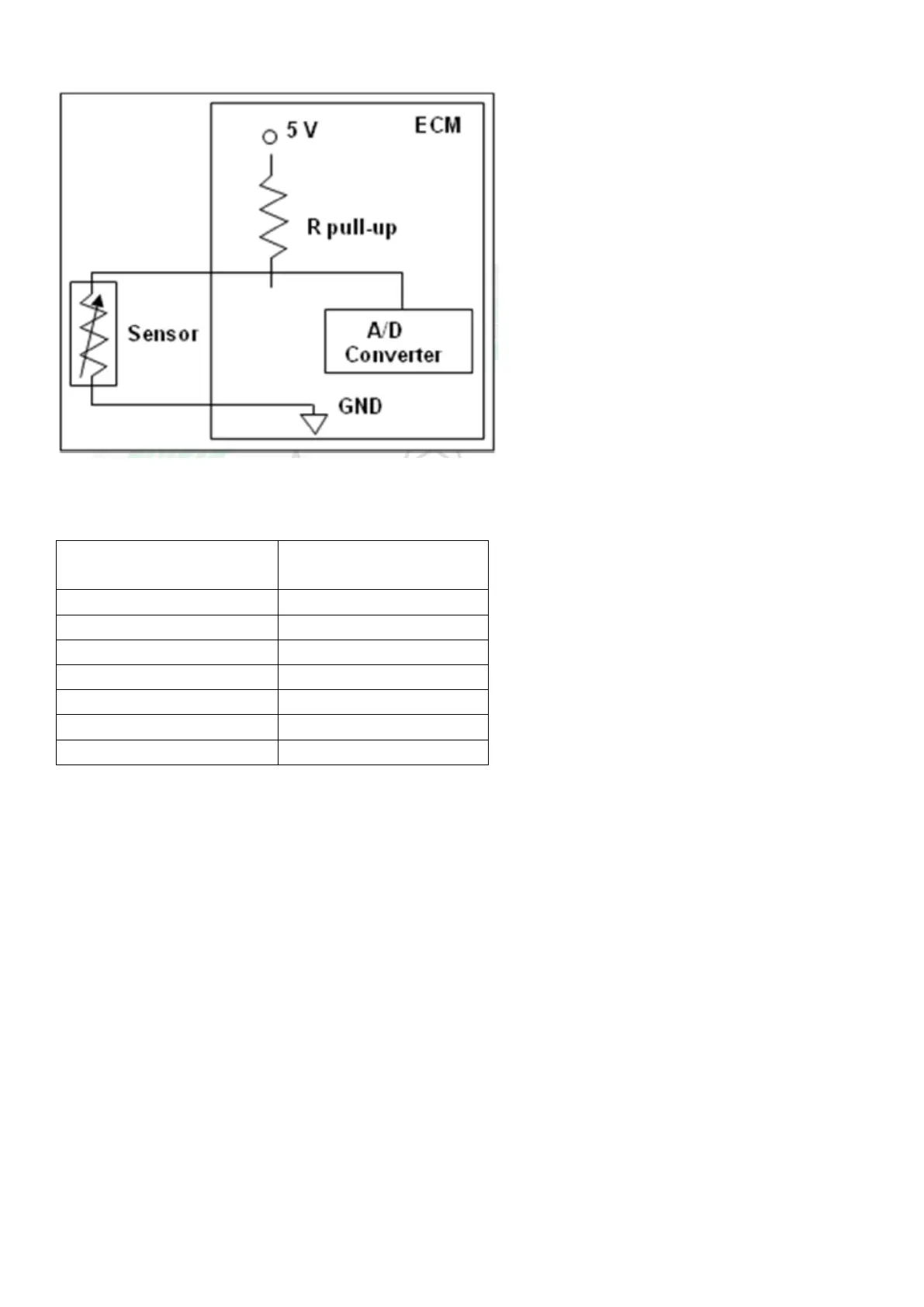

•Pin definition and function drawing
Measure the resistance between two pins of sensor using multimeter. The specific temperature and resistance
correspondence table is as follows:
Measured temperature
(degree centigrade)
Resistance value (Ohm）
10 5,658
15 4,441
20 3,511
25 2,795
30 2,240
Intake air temperature sensor is at air filter, and it can be removed after wearing gloves.
Cleaning
If necessary, the sensor can be cleaned with isopropyl alcohol and then air dried. It should be soaked in isopropyl alcohol for
not more than 1 minute, and sealing connector should be installed during cleaning to prevent cleaner from intruding into the
inside of sensor.
3-38
