Electrical Wiring
Wiring Inspection
●Visually check the melting, wear and other phenomena of wires.
★If the wire is broken, replace the damaged wire.

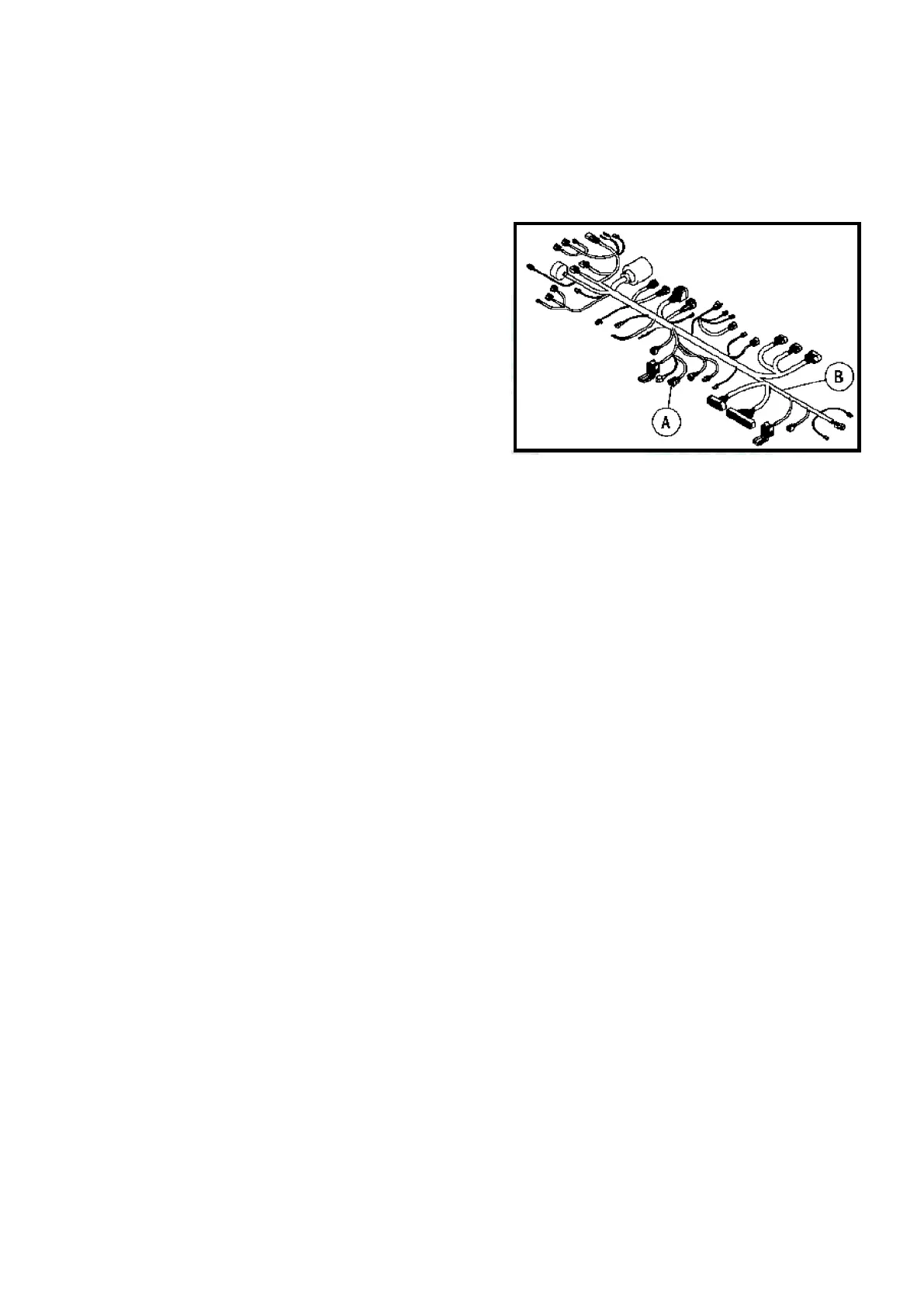

●Pull out each connector [A] to check whether there is any corrosion,
dirt and damage.
★If the connectors are corroded or soiled, carefully clean them. If
the connectors are damaged, replace them.
●Check whether the connection of circuit is normal.
○Find the power wire terminal which may have problems by using
the wiring diagram.
○Connect the multimeter between the power wire terminals.
Special Tool—Multimeter:
○Set the scope of multimeter as ×1Ω and check the multimeter
reading.
★If the multimeter shows “0”, it means some fault of the power wire. If necessary, replace the lead or main cable [B].
