Check Side Stand Switch

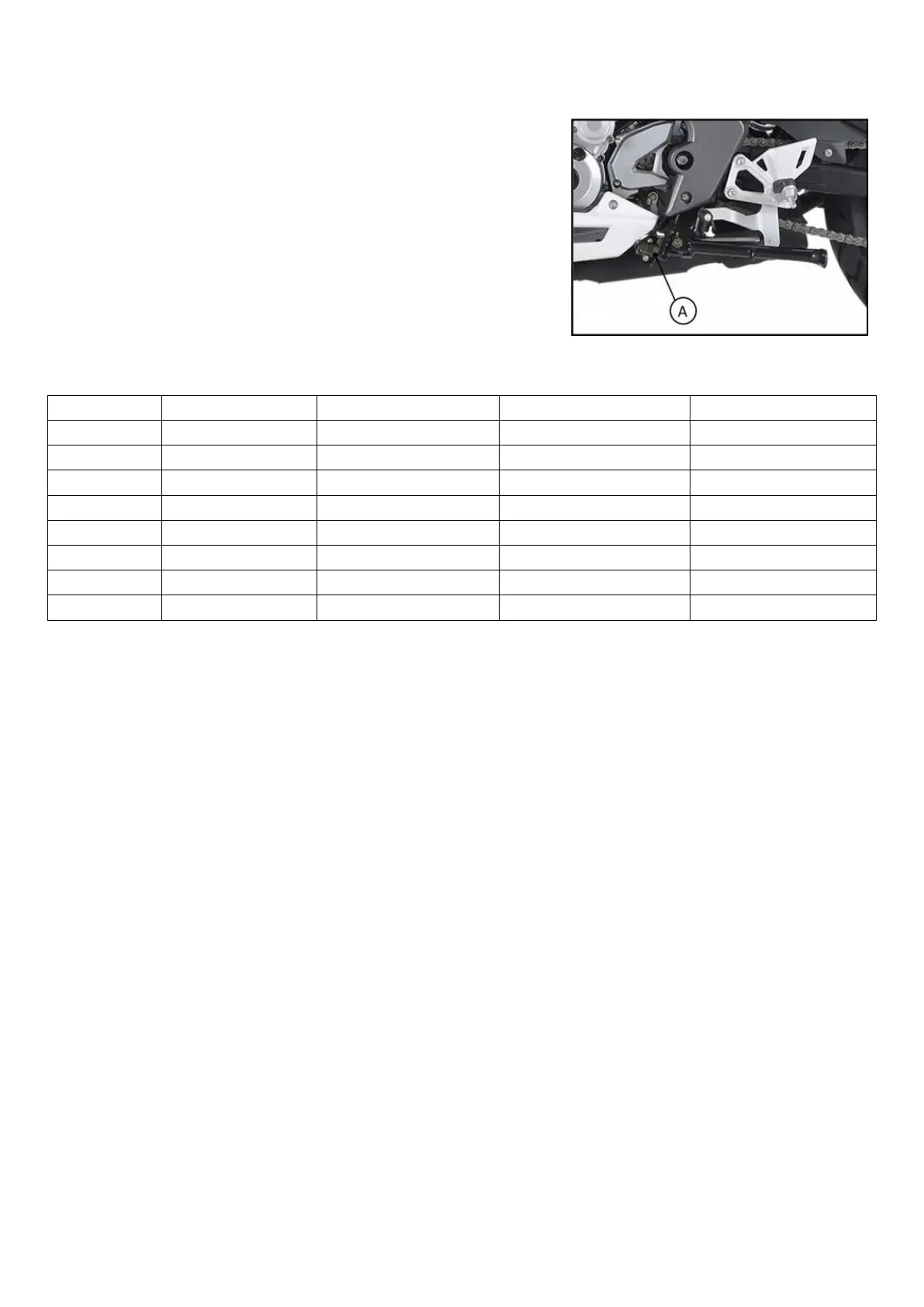

●Check the side stand switch [A] according to the table below.
Side Stand Switch
Side stand
Gear position Clutch lever Engine startup switch Engine Run
Up
Neutral
Release
Start
Continuous running
Up Neutral Tighten Start Continuous running
Up
1-6 Gear Position
Release
Not start
Continuous running
Up 1-6 Gear Position Tighten Start Continuous running
Down Neutral Release Start Continuous running
Down Neutral Tighten Start Continuous running
Down 1-6 Gear Position Release Not start Stop
Down 1-6 Gear Position Tighten Not start Stop
★If the side stand switch is abnormal, please check or replace the following parts:
Battery (see “Checking Charging Situation” in the “Electrical System” chapter);
30A main fuse (see “Checking Fuse” in the “Electrical System” chapter);
30A ECU fuse (see “Checking Fuse” in the “Electrical System” chapter);
10A ignition fuse (see “Checking Fuse” in the “Electrical System” chapter);
Main switch (see “Checking Switch” in the “Electrical System” chapter);
Side stand switch (see “Checking Switch” in the “Electrical System” chapter);
Engine stop switch (see “Checking Switch” in the “Electrical System” chapter);
Startup switch button (see “Checking Switch” in the “Electrical System” chapter);
Gear position switch (see “Checking Gear Position Switch” in the “Electrical System” chapter);
Starter relay (see “Checking Starter Relay” in the “Electrical System” chapter);
Relay box (see “Checking Relay Circuit” in the “Electrical System” chapter);
Starter circuit relay (see “Checking Relay Circuit” in the “Electrical System” chapter);
Wire harness (see “Checking Circuit” in the “Electrical System” chapter).
★If the above parts are all normal, replace the ECU.
