Benelli TNT 25 User Manual

Common Troubleshooting Methods of electronic Fuel Injection System
Maintenance Tool
a) Disassembly and assembly of electronic control system components - common automotive mechanical parts removal tool
b) Electronic control system circuit and system electrical signal - digital multimeter (with buzzer)
c) Electric control system fault diagnosis and engine working condition detection

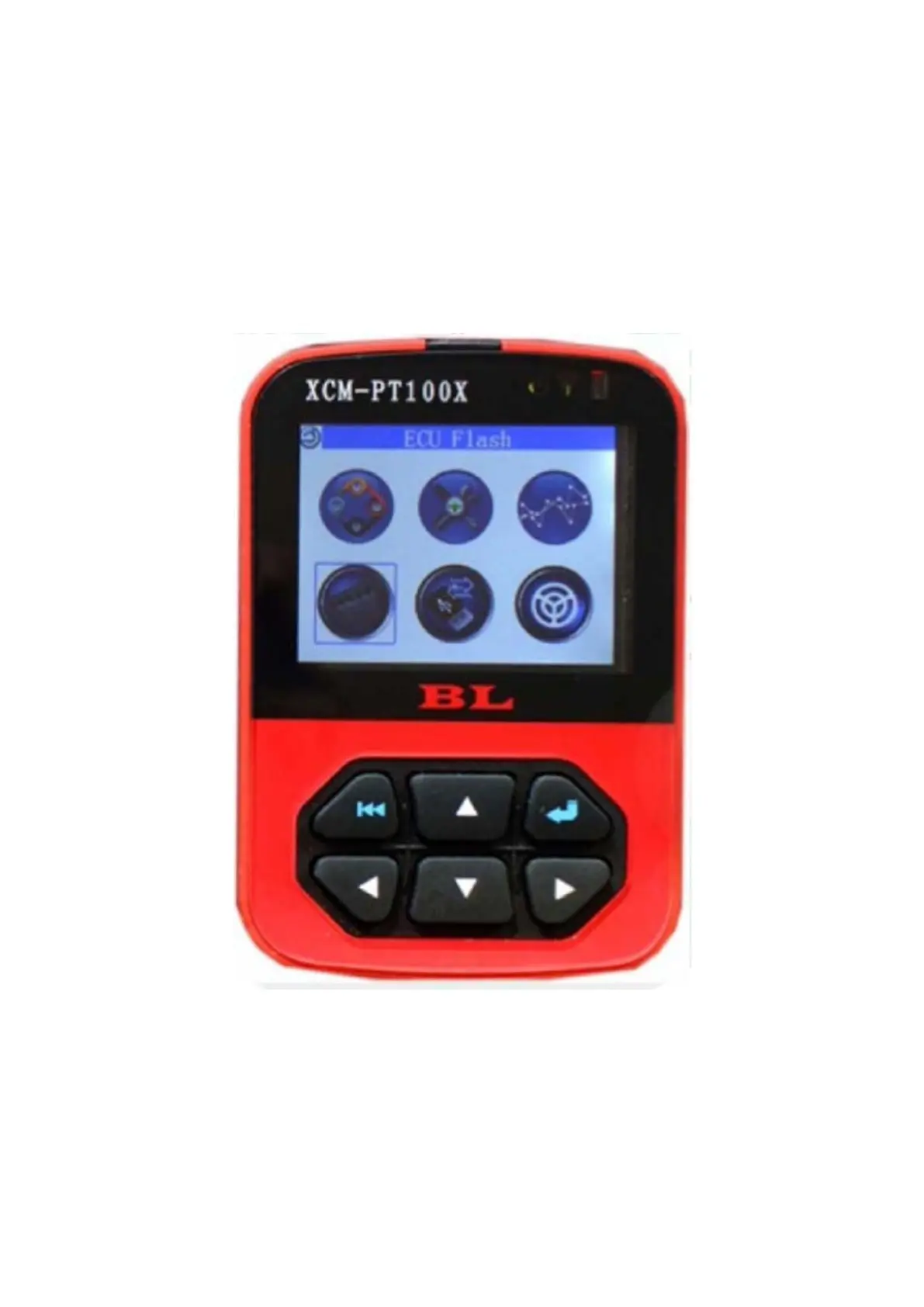

■ Electronic control system fault diagnostic tool (recommended)
■ Fault diagnosis software (PCHUD) and interface connection (conditional use)
d) electronic control system trouble code table (emergency use)
e) fuel pressure gauge, range: 0-300kP
3-57

Benelli TNT 25 Specifications

General

Displacement	249 cc
Bore x Stroke	72 mm x 61.2 mm
Compression Ratio	11.2:1
Max Torque	21.61 Nm @ 8000 rpm
Transmission	6-speed
Starting System	Electric
Clutch	Wet multi-plate
ABS	No
Front Tire	110/70-17
Rear Tire	150/60-17
Length x Width x Height	2080 mm x 810 mm x 1125 mm
Seat Height	780 mm
Kerb Weight	159 kg
Fuel System	Fuel Injection
Ignition	Digital
Front Suspension	Telescopic forks
Rear Suspension	Mono-shock
Front Brake	Disc
Rear Brake	Disc
Engine Type	Single cylinder, 4-stroke, liquid-cooled, DOHC
