Installing Clutch
●The assembly shall be carried out in the order contrary to the disassembly order.
Checking Clutch
●Check whether there are burrs or damaged marks on the clutch shell groove; repair it with a file if any, and replace it if the
number of parts to be repaired is too large.
●Check whether the pressure plate and tooth shape of clutch hub are
damaged, and replace them if damaged.

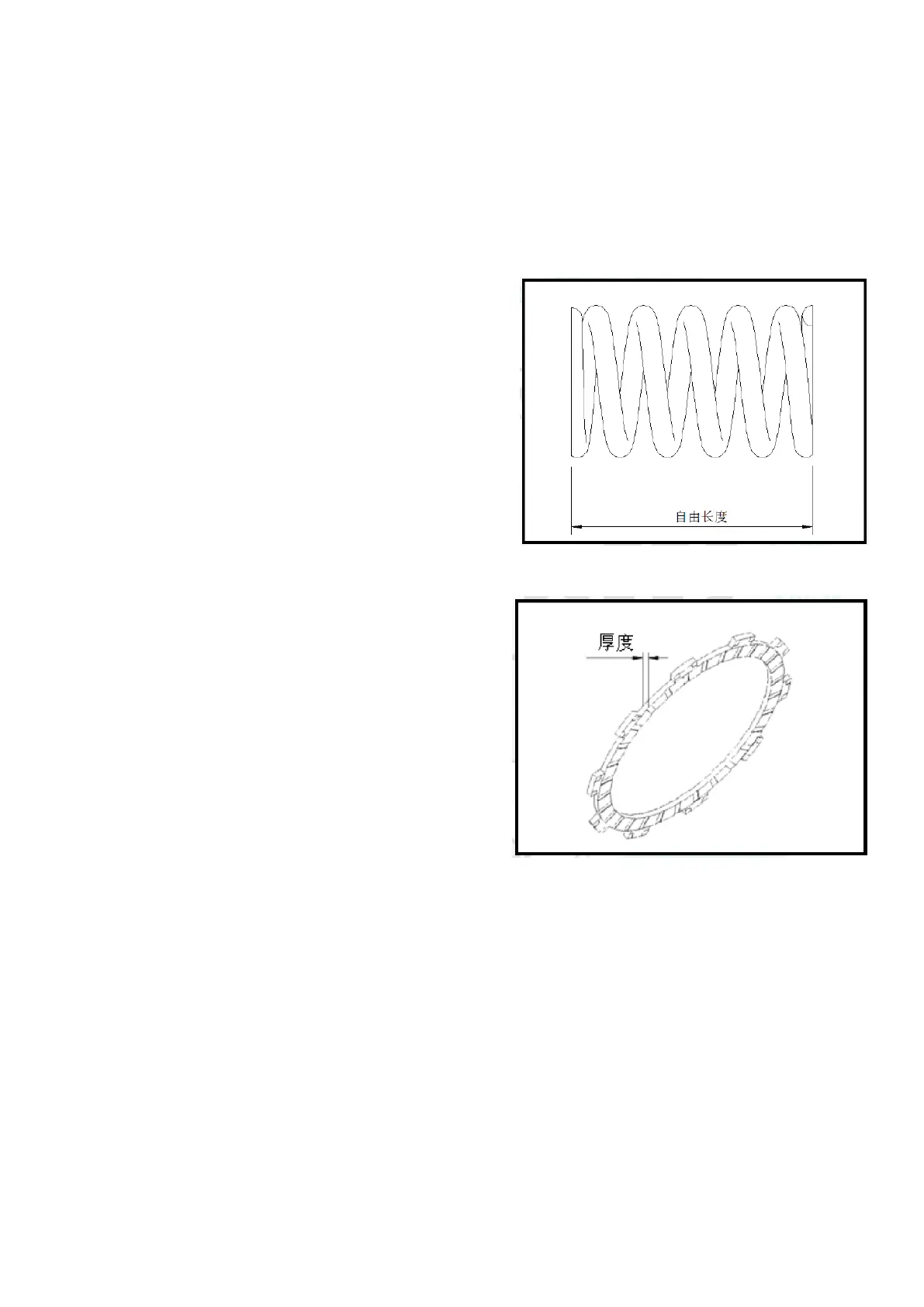

●Measure the free length of pressure spring.
Service limit I: replace below 41mm.
●Measure the thickness of friction plate with vernier calipers.
Service limit I: replace below 2.6mm.
Service limit II: replace below 2.8mm.
