Frame
Disassembling Frame
●Removing:
Seat (see “Seat”—“Disassembling Seat”)
Fuel tank (see “Fuel Tank”—“Disassembling Fuel Tank”)
Body Covers (see “Body Covers”—“Disassembling Body Covers”)
Tail cover (see “Tail Cover”— “Disassembling Tail Cover”)
Rear fender (see “Rear Fender” — “Disassembling Rear Fender”)
Rear wheel (see “Rear Wheel” — “Disassembling Rear Wheel”)
Front wheel (see “Front Wheel” — “Disassembling Front Wheel”)
Front fork (see “Disassembling Front Fork”)
Muffler (see “Disassembling Muffler”)
Rear swing arm (see “Rear Swing Arm”—“Disassembling Rear Swing Arm”)
Engine (see “Disassembling Engine”)
Side stand (see “Seat”—“Disassembling Body Covers”)
Front and rear left pedals (see “Disassembling Front Left Pedal” and “Disassembling Rear Left Pedal”)
Front and rear right pedals (see “Disassembling Front Right Pedal” and “Disassembling Rear Right Pedal”)
●Disassemble the cables and other electric parts.
Installing Frame
●Install the parts disassembled previously (see the corresponding chapters).
Checking Frame

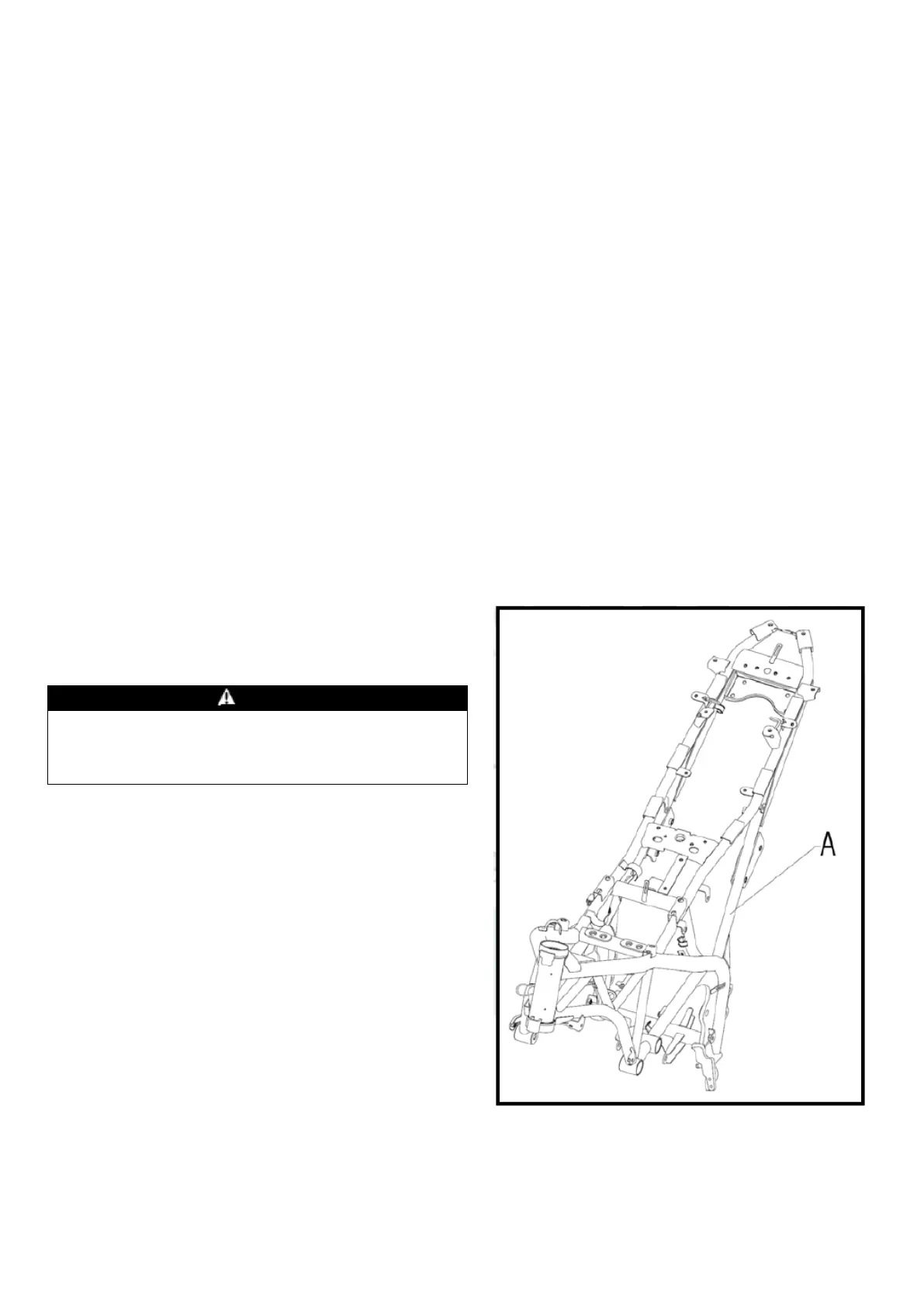

●Visually check whether there is crack, depression, bending or
deformation on the frame [A].
★If the frame is damaged, please replace it!
Do not attempt to adjust or repair the frame, which may
cause accidents, so please replace the frame if the crack,
depression, bending or deformation occurs on it!
