Benelli TNT 25 - Motorcycle Electrical System Checks

Electrical System
Checking Lamp and Switch
Step 1
●Turn on the main switch.

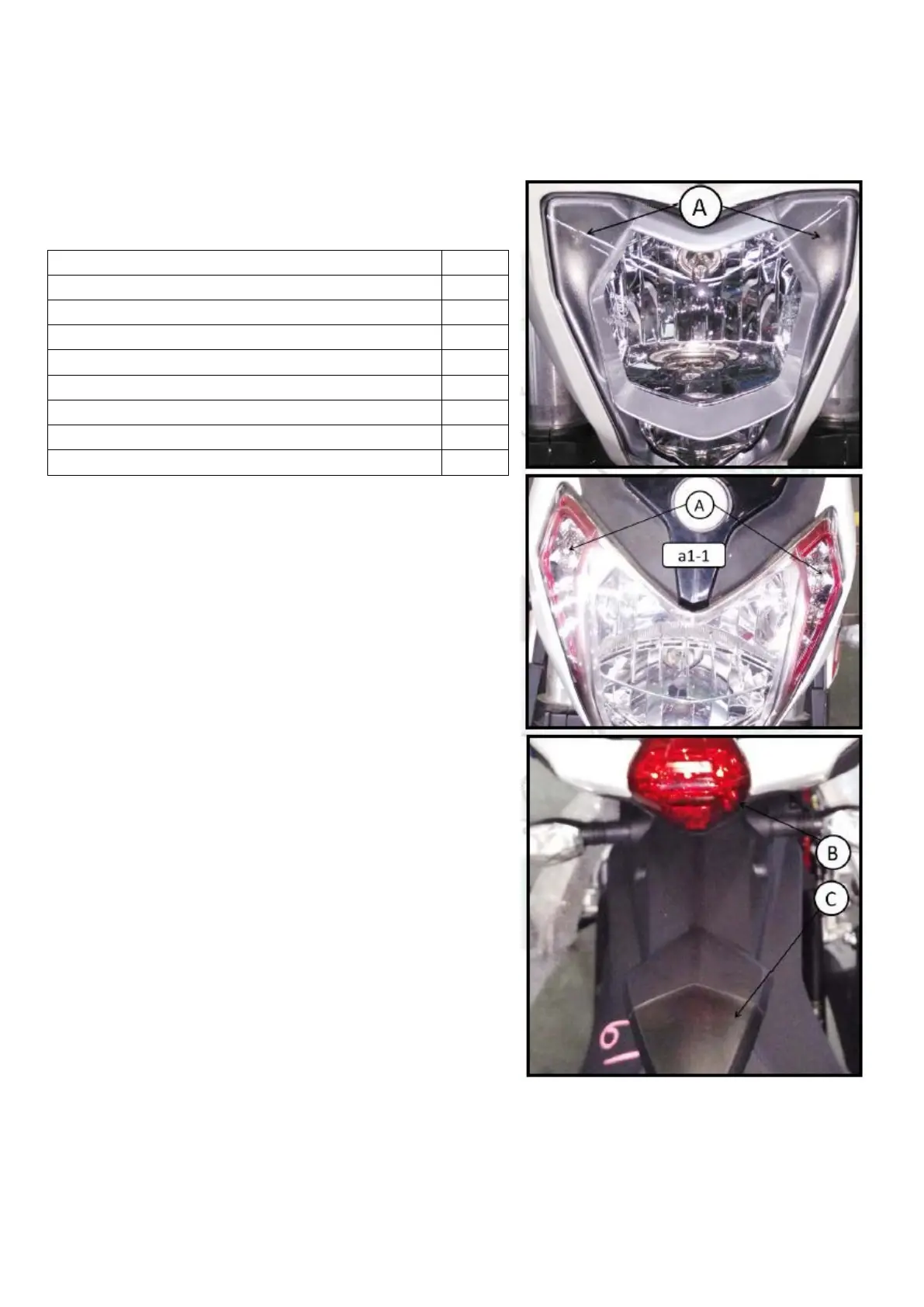

●All motorcycle lamps will be on according to the order shown in
the table below.
Position lamp [A]
On
Position lamp (a1-1) (LED) [A] On
Tail lamp (LED) [B] On
License plate lamp [C] On
Tachometer lamp (LED) [D] On
Liquid crystal meter panel (LCD) [E] On
Neutral indicator (LED) [F] On
Fault alarm indicator (LED) [G]
On
ABS indicator (LED) [H] (models with ABS) On
★If the lamps are not on, check or replace the following parts:
Battery (see “Checking Charging Situation” in the “Electrical
System” chapter);
30A main fuse and 10 A tail lamp fuse (see “Checking Fuse” in the
“Electrical System” chapter);
Applicable bulb (see “Wiring Diagram” in the “Electrical System”
chapter);
Header parts of meter panel LCD (see “Checking Header Parts” in
the “Electrical System” chapter);
Header parts of neutral indicator (LED) (see “Checking Header Parts”
in the “Electrical System” chapter);
Header parts of alarm indicator (LED) (see “Checking Header Parts”
in the “Electrical System” chapter);
Header parts of fault alarm indicator (LED) (see “Checking Header
Parts” in the “Electrical System” chapter);
Header parts of lamp (LED) (see “Checking Header Parts” in the
“Electrical System” chapter);
ECU (see “Checking ECU Power” in the “Fuel Injection System
(EFI)” chapter);
Main switch (see “Checking Switch” in the “Electrical System”
chapter);
Gear position switch (see “Checking Gear Position Switch” in the
“Electrical System” chapter);
Wire harness (see “Checking Circuit” in the “Electrical System”
chapter).
ABS indicator (LED) (models with ABS) [see “Checking ABS
Indicator (LED)” in the “Brake” chapter”)
●Turn off the Main switch.
●At this time, all lamps shall be off.
★If any lamp is not off, replace the Main switch.
