Left Front Pedal

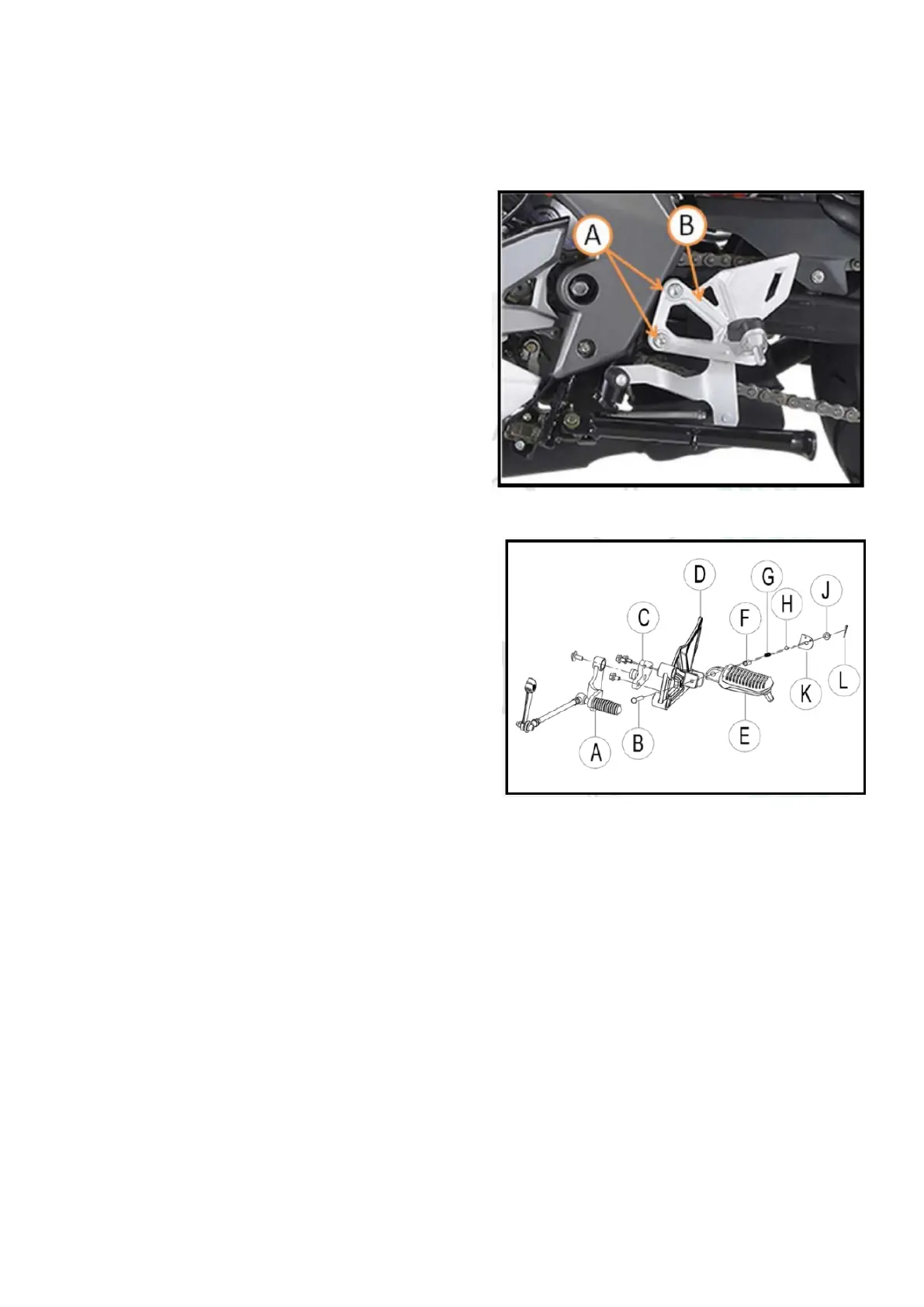

Disassembling Left Front Pedal
●Disassembling:
Screw [A]
Left front pedal bracket [B]
●Disassembling
Shift foot bar component [A]
Shift foot bar installing seat assembly [C]
Pedal installing pin [B]
Left front pedal bracket [D]
Left front pedal component [E]
Pedal installing bush [F]
Front pedal spring [G]
Steel ball [H]
Pedal installing plate [K]
Gasket [J]
Cotter pin [L]
Installing Left Front Pedal
●Before installation, apply the grease to the pedal installing bush.
●Install the parts disassembled previously
Locking torque:
Shift foot bar installing seat assembly mounting bolt: 10N·m
Left front pedal bracket fixing screw: 45N·m
6-114
