Oxygen Sensor
•Working principle of oxygen sensor
Oxygen sensor can be used to detect the oxygen content in the waste gas of engine exhaust pipe for internal fuel closed
loop control of ECU, thus maintaining engine combustion at the most reasonable state of air and fuel ratio.

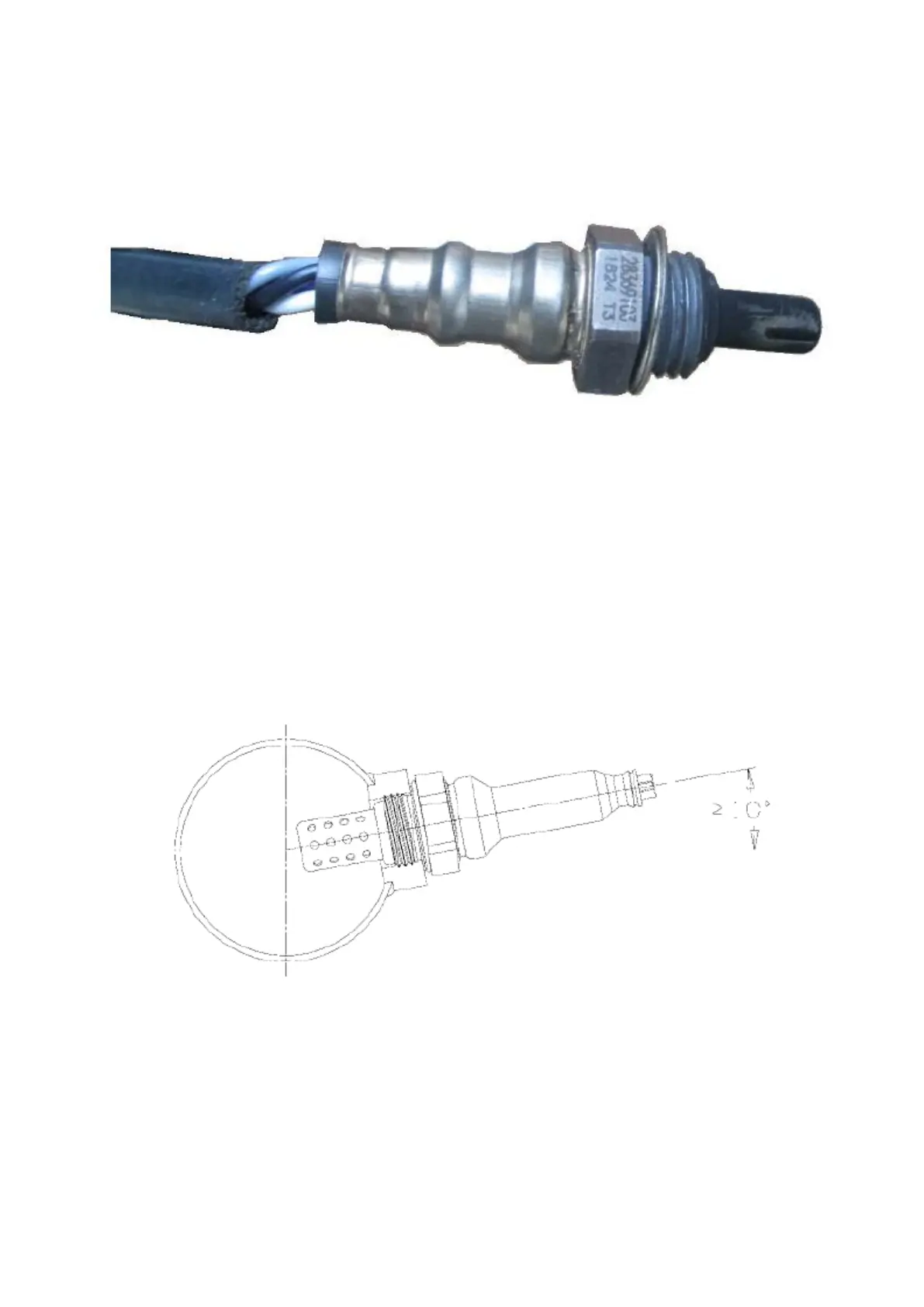

•Appearance of oxygen sensor
•Technical parameters
 Partially thick limit of air-fuel ratio: ＞750 Mvdc
 Partially thin limit of air-fuel ratio: ＜120 Mvdc
 Power of oxygen sensor heater: 7.0W
(The above parameters are measured at engine bench, the working conditions: exhaust gas temperature: 450°C; duty
cycle: 70%; 10Hz; voltage: 13.5V).
 The resistance of heater is: 9.6±1.5Ω (measured at 21°C)
 Operating temperature range: 260-850°C
•Installation requirements
 Installation angle (angle with the horizontal plane): ≥10 degrees
3-41

Benelli TNT 25 Specifications

General

Displacement	249 cc
Bore x Stroke	72 mm x 61.2 mm
Compression Ratio	11.2:1
Max Torque	21.61 Nm @ 8000 rpm
Transmission	6-speed
Starting System	Electric
Clutch	Wet multi-plate
ABS	No
Front Tire	110/70-17
Rear Tire	150/60-17
Length x Width x Height	2080 mm x 810 mm x 1125 mm
Seat Height	780 mm
Kerb Weight	159 kg
Fuel System	Fuel Injection
Ignition	Digital
Front Suspension	Telescopic forks
Rear Suspension	Mono-shock
Front Brake	Disc
Rear Brake	Disc
Engine Type	Single cylinder, 4-stroke, liquid-cooled, DOHC
