Benelli TNT 25

To Next Page

To Previous Page

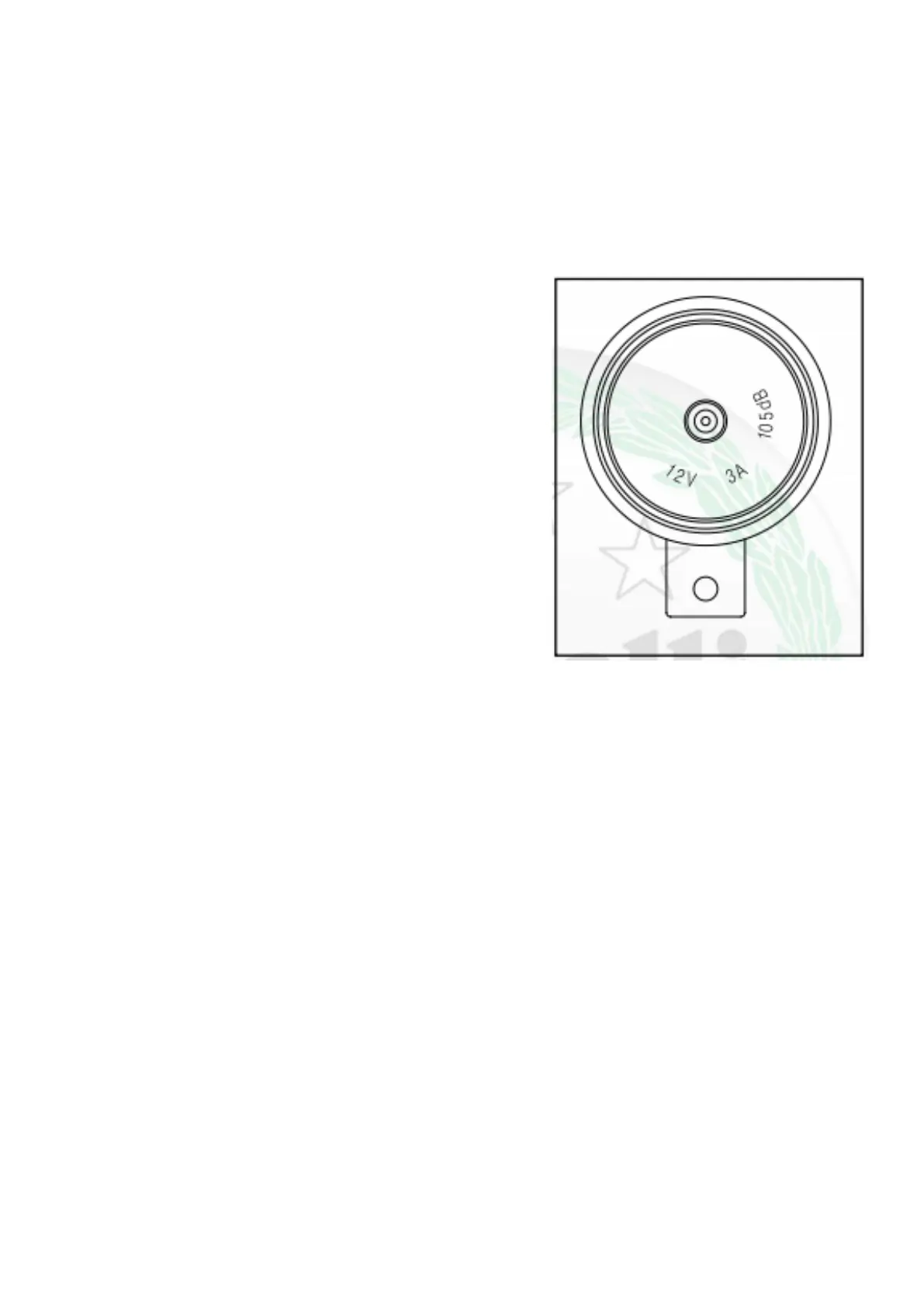

Horn

Horn Disassembly

●Remove the horn leads.

Horn Inspection

● Connect a battery (12V) to the horn, if the horn sounds well, it

means the horn is OK, otherwise, adjust or replace it..

Resistance 1.4Ω

7-35
