Replacing Radiator Hose
●Drain the coolant (see “Replacing Coolant”).
●Removing:
Engine fairing (see “Disassembling Engine Fairing” in the “Frame”
chapter),
Side cover (see “Disassembling middle side cover” in the “Frame”
chapter),

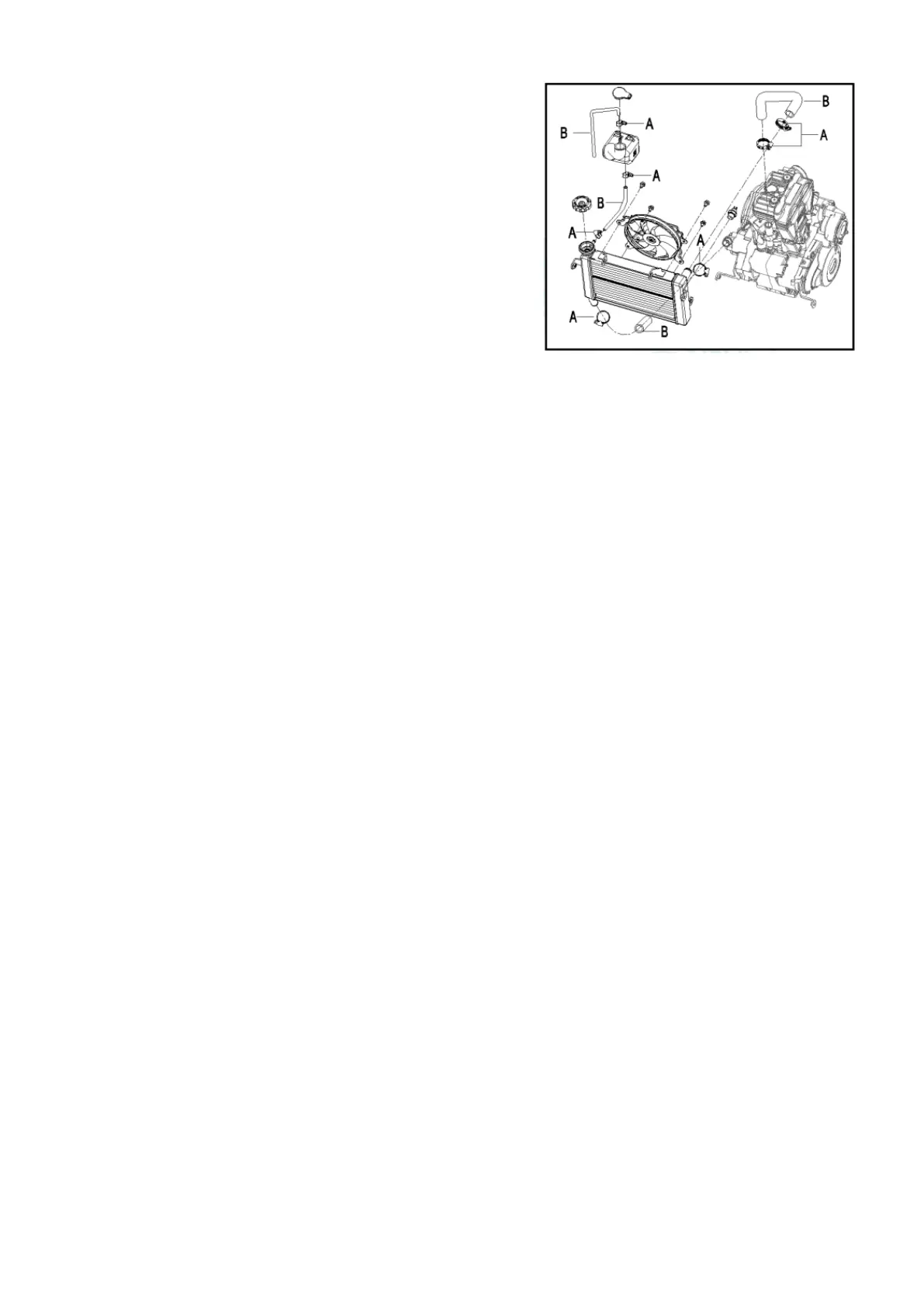

Clamp [A]
Water pipe [B]
●Install the new hose and then tighten the pipe clamp.
Locking torque of radiator hose (water pipe) clamping screw:
2.0 N·m
●Add the coolant (see “Replacing Coolant”).
●Check whether the cooling system leaks.
2-57
