Benelli TNT 25 - Replacing Rubber Parts of Brake Master Cylinder

Replacing Rubber Parts of Brake master cylinder
Disassembling Front Brake master cylinder
●Remove the front brake master cylinder (see “Disassembling Front
Brake master cylinder” in the “Brake” chapter).

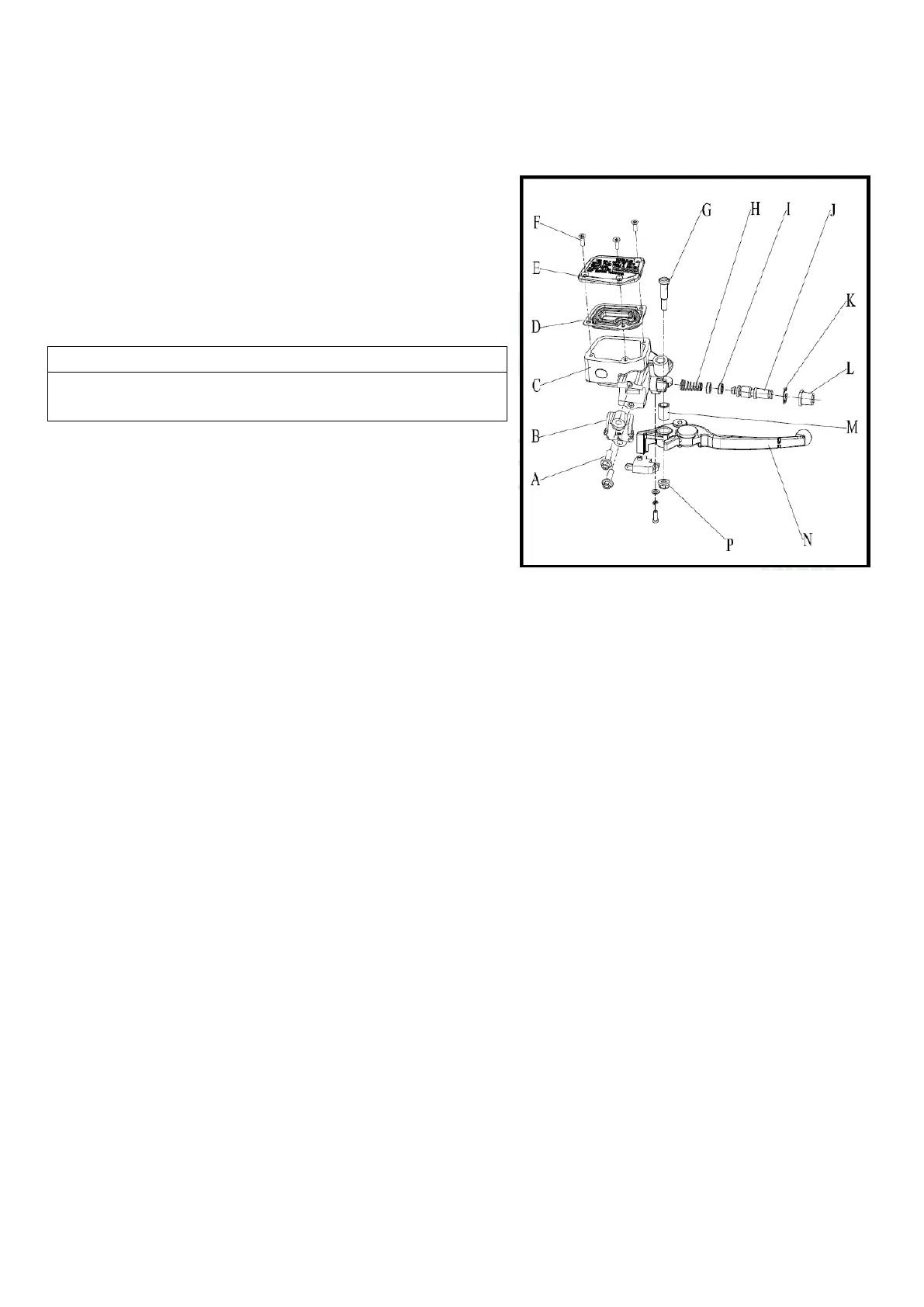

●Remove the fluid reservoir can fixing screw [F], fluid reservoir can
[E], connector [C] and O-ring seal.
●Screw off the locknut [E] and fulcrum shaft bolt [F] and then
remove the brake handle.
●Remove the snap spring [G].
Special tool—inside circlip plier:
●Pull out the piston assembly [H].
Note
Do not remove the cup [I] from th
e piston, because it is
damaged when removed.
●Replacing:
Seal cover: [A],
Snap spring: [B],
O-ring seal: [D],
Snap spring: [G],
Piston assembly: [H],
Diaphragm: [I].
2-64
